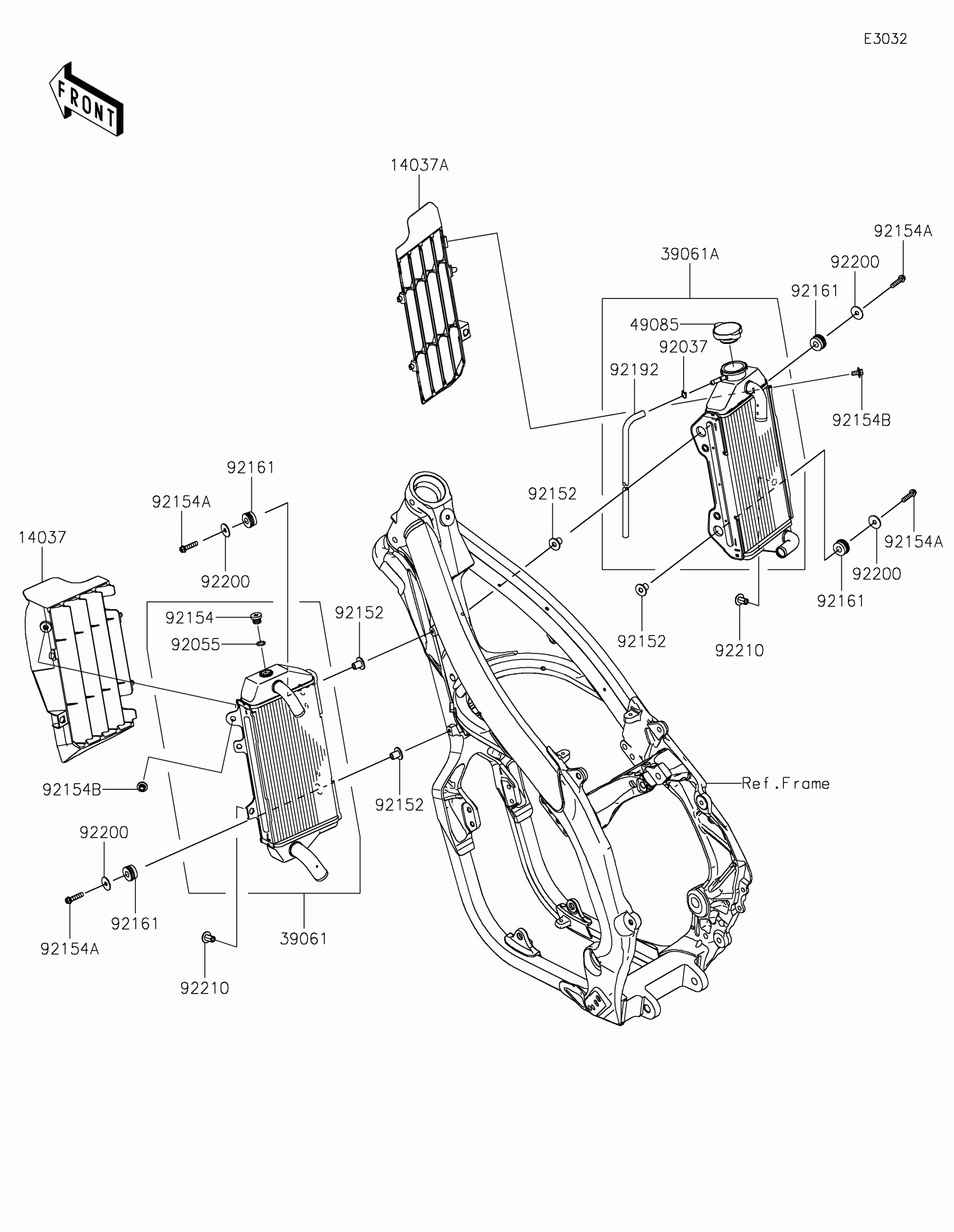

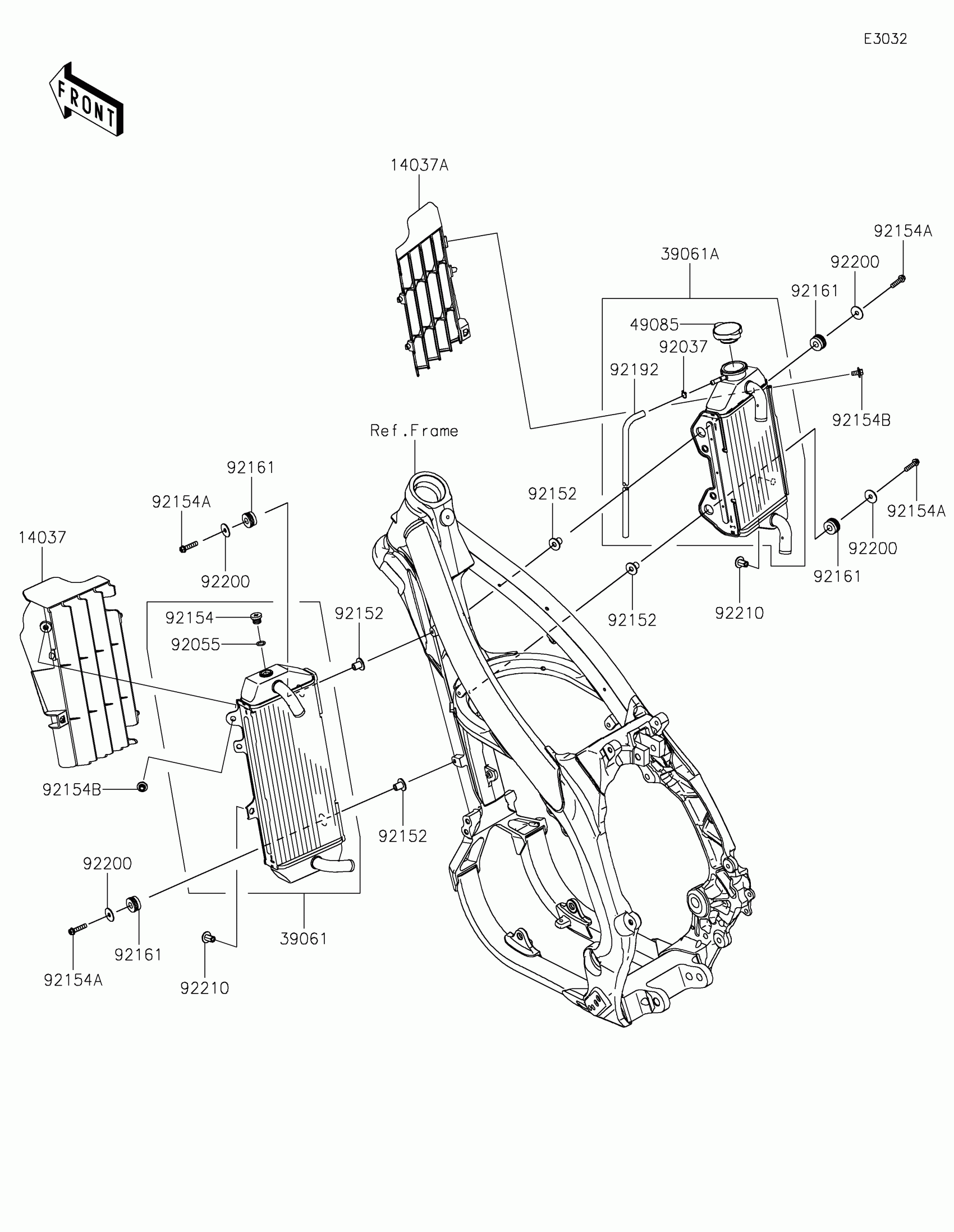

Kawasaki KX™450SR Radiator Diagram

Description

Price

14037

SCREEN,LH,EBONY

14037-0767-6C

$26.42

14037A

SCREEN,RH,EBONY

14037-0768-6C

$30.45

39061

RADIATOR-ASSY,LH

39061-0709

$394.38

39061A

RADIATOR-ASSY,RH

39061-0710

$421.87

49085

CAP-ASSY-PRESSURE

49085-0006

$44.67

92037

CLAMP

92037-1610

$1.42

92055

RING-O

92055-0866

$4.97

92152

COLLAR

92152-0666

$5.05

92154

BOLT,AIR VENT

92154-1738

$2.44

92154A

BOLT,FLANGED,6X25

92154-2967

$0.76

92154B

BOLT,FLANGED,6X12

92154-2970

$0.76

92161

DAMPER

92161-1950

$3.70

92192

TUBE,L=830

92192-1490

$10.71

92200

WASHER,6.5X22X1.2

92200-2108

$1.41

92210

NUT

92210-1452

$2.64
