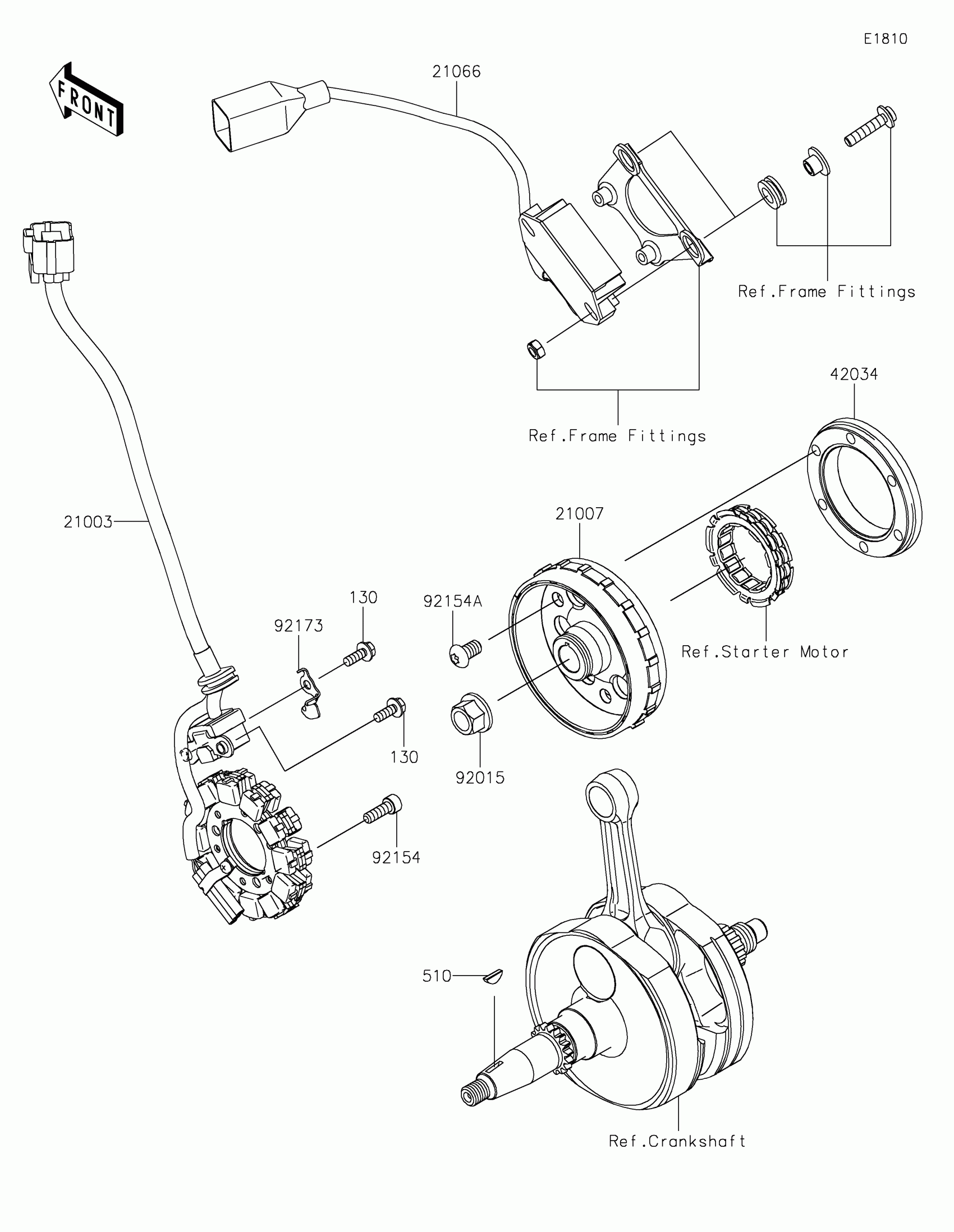

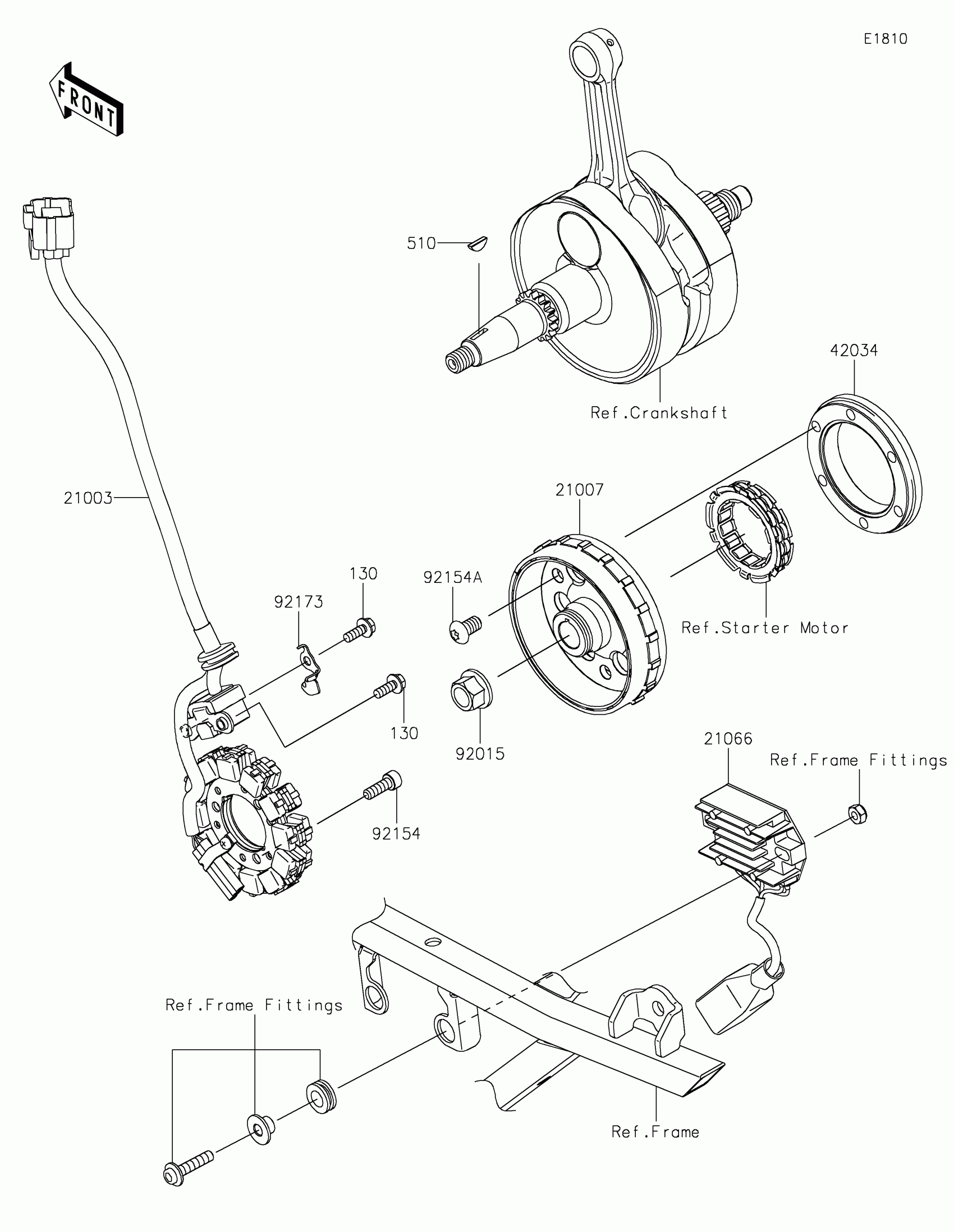

Kawasaki KX™450SR Generator Diagram

#

Description
Price

21003

STATOR

21003-0184

$588.57

21007

ROTOR

21007-0667

$666.87

21066

REGULATOR-VOLTAGE

21066-0743

$203.44

42034

COUPLING,ONEWEY CLUTCH

42034-0757

Unavailable

92015

NUT,12MM

92015-1426

$5.61

92154

BOLT,SOCKET,6X18

92154-2947

$1.27

92154A

BOLT,TORX,8X14

92154-2994

$2.59

92173

CLAMP

92173-1855

$3.51

130

BOLT-FLANGED,5X14

130BA0514

$1.49

510

KEY-WOODRUFF

510A3200

$1.87
