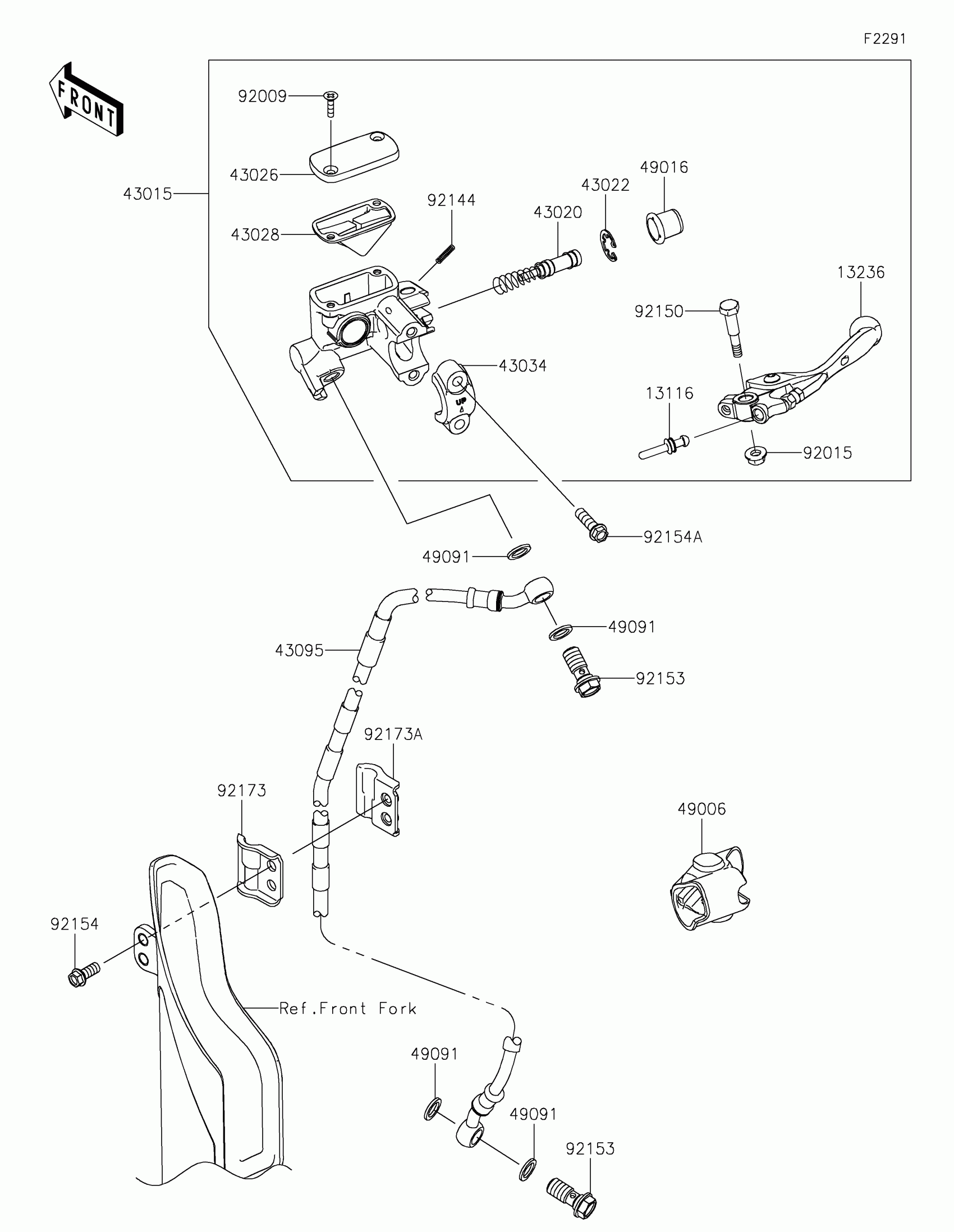

Kawasaki KX™450SR Front Master Cylinder Diagram

Description

Price

13116

ROD-PUSH

13116-0744

$13.63

13236

LEVER-COMP,FRONT BRAKE

13236-0807

$44.46

43015

CYLINDER-ASSY-MASTER

43015-0695

$316.46

43020

PISTON-COMP-BRAKE

43020-0031

$38.45

43022

STOPPER-BRAKE,PISTON

43022-0004

$4.14

43026

CAP-BRAKE,MASTER CYLINDER

43026-0027

$15.20

43028

DIAPHRAGM

43028-0023

$17.51

43034

HOLDER-BRAKE

43034-1110

$14.67

43095

HOSE-BRAKE,FR,1334MM

43095-1543

$132.06

49006

BOOT,BRAKE LEVER

49006-0606

$9.58

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92009

SCREW

92009-1795

$3.34

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92144

SPRING,RETURN

92144-1725

$7.30

92150

BOLT,LEVER SET

92150-1451

$10.80

92153

BOLT,OIL,L=23

92153-1419

$2.98

92154

BOLT,FLANGED,6X14

92154-2964

$0.60

92154A

BOLT,6X22

92154-3780

$0.76

92173

CLAMP,BRAKE HOSE,LH

92173-1177

$7.56

92173A

CLAMP,BRAKE HOSE,RH

92173-1178

$10.58
