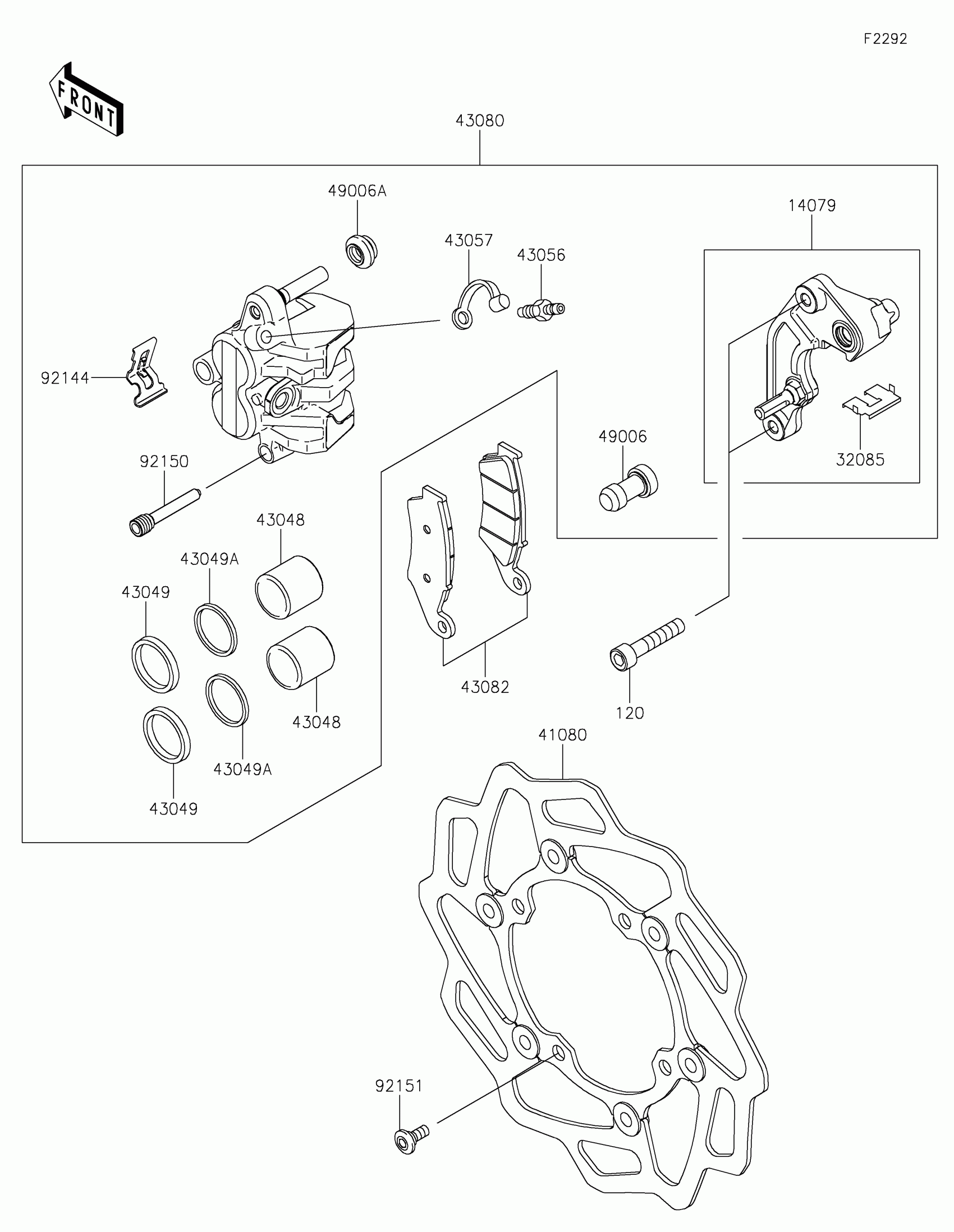

Kawasaki KX™450SR Front Brake Diagram

Description

Price

14079

HOLDER-ASSY,FR CALIPER

14079-0586

$160.14

32085

STOPPER,PAD

32085-1361

$6.08

41080

DISC,FR,270MM,WAVE

41080-0692

$340.36

43048

PISTON-CALIPER

43048-1095

$35.95

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,FR

43080-0157

$284.33

43082

PAD-ASSY-BRAKE

43082-1266

$44.97

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92144

SPRING,PAD

92144-1721

$7.48

92150

BOLT,HANGER

92150-1691

$9.12

92151

BOLT,DISC PLATE,6MM

92151-1799

$3.15

120

BOLT-SOCKET,8X40

120CA0840

$1.98
