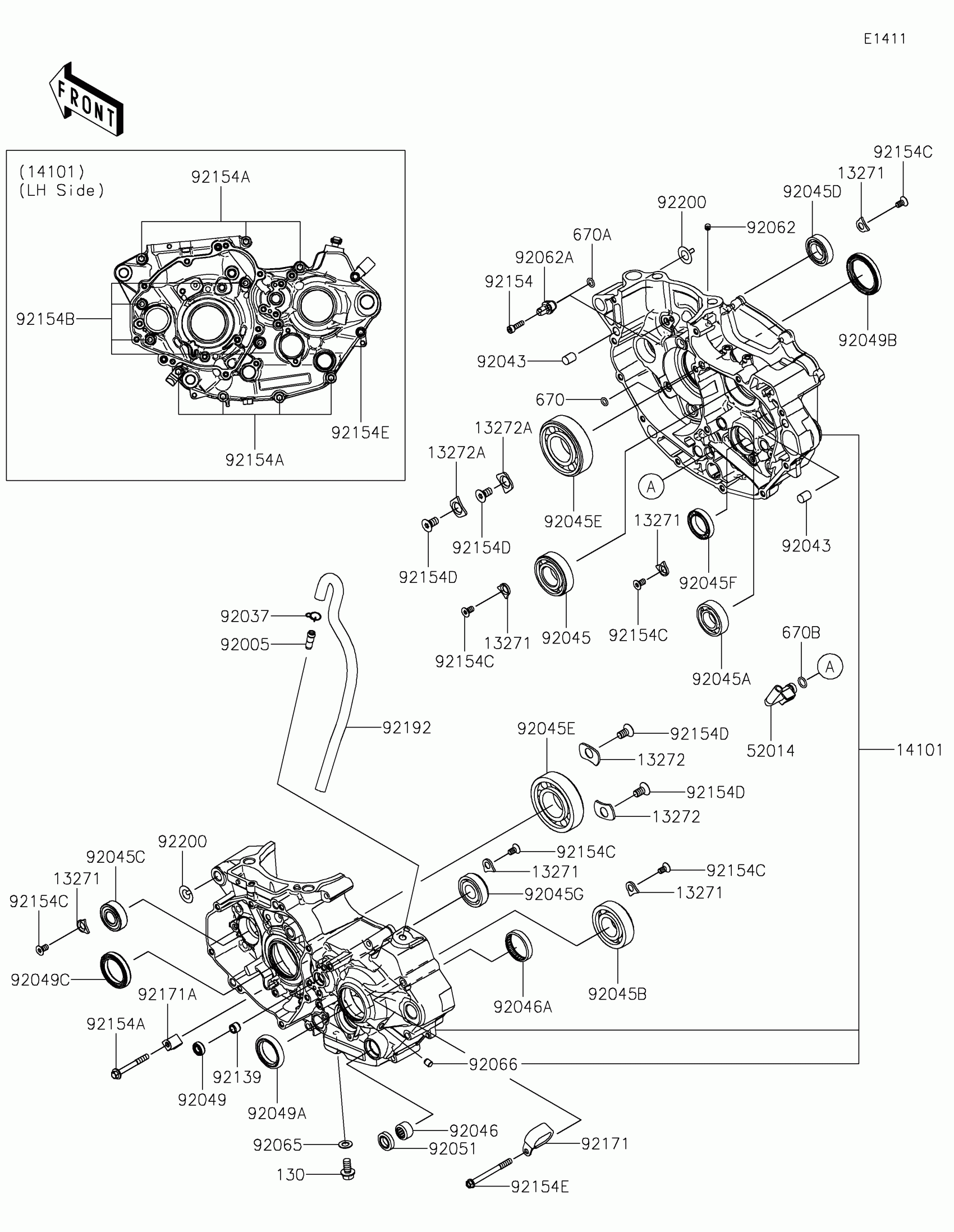

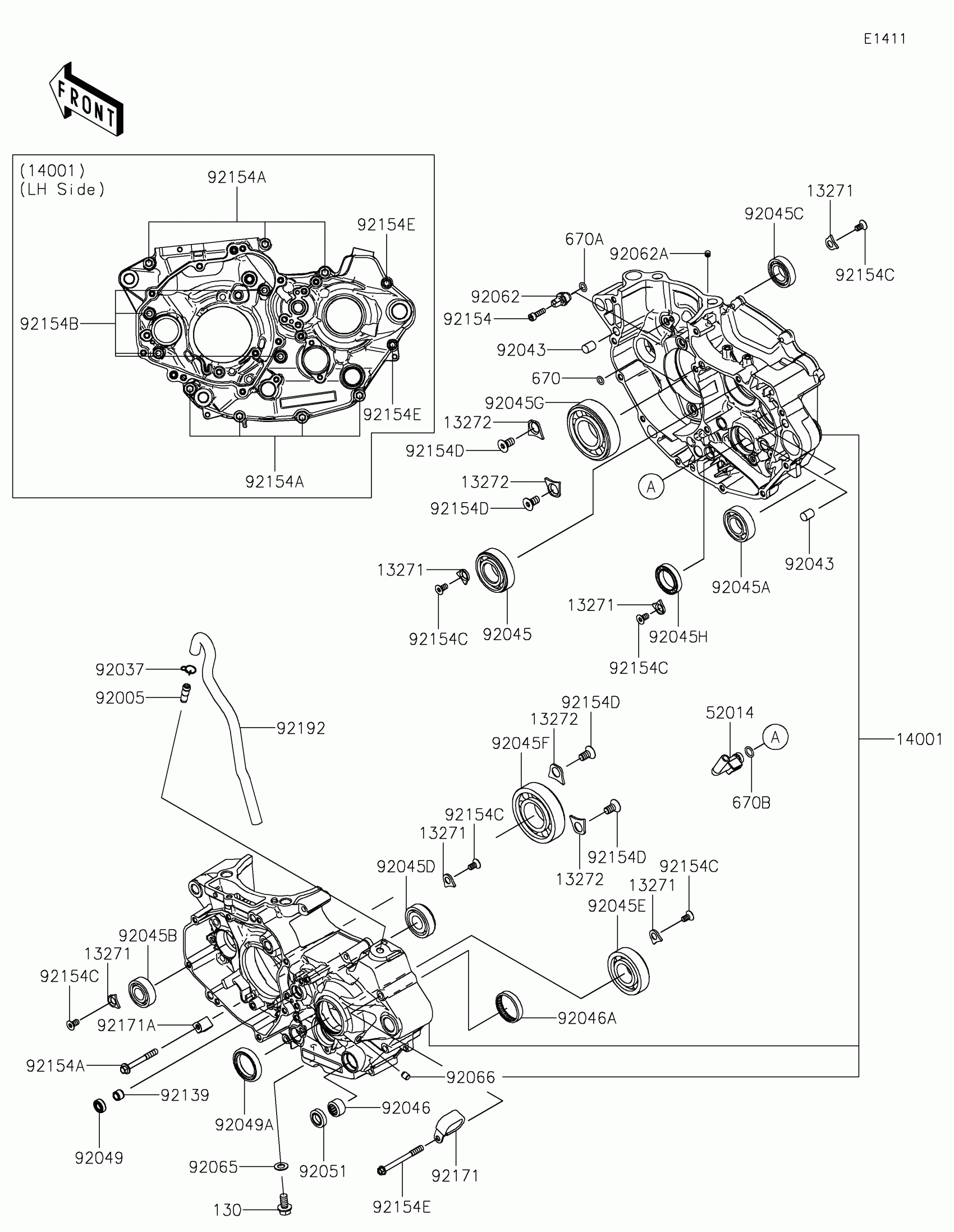

Kawasaki KX™450SR Crankcase Diagram

#

Description
Price

13271

PLATE

13271-0345

$4.68

13272

PLATE

13272-1941

$4.98

14001

SET-CRANKCASE

14001-0696

$653.27

52014

ELBOW

52014-0011

$8.92

92005

FITTING

92005-1369

$7.44

92037

CLAMP,TUBE

92037-1972

$3.29

92043

PIN,10X14

92043-1506

$2.30

92045

BEARING-BALL,25X52X15

92045-0035

$29.44

92045A

BEARING-BALL,20X42X12

92045-0036

$19.76

92045B

BEARING-BALL,6202SH2C3

92045-0037

$10.64

92045C

BEARING-BALL,6904C3UR5

92045-0038

$19.42

92045D

BEARING-BALL,3TM-5X0391LUC3

92045-0057

$17.47

92045E

BEARING-BALL

92045-0062

$35.16

92045F

BEARING-BALL

92045-0132

$38.89

92045G

BEARING-BALL,32X72X19

92045-0806

$49.29

92045H

BEARING-BALL,6805JRZ

92045-1432

$29.08

92046

BEARING-NEEDLE,HK1312

92046-1148

$14.13

92046A

BEARING-NEEDLE,7E-HKS33X38X8

92046-1221

$29.14

92049

SEAL-OIL

92049-0808

$6.85

92049A

SEAL-OIL

92049-0809

$9.42

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92062

NOZZLE

92062-0035

$20.10

92062A

NOZZLE

92062-0049

$4.31

92065

GASKET,8.5X16X1

92065-023

$2.63

92066

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92139

BUSHING

92139-0907

$9.12

92154

BOLT,SOCKET,5X18

92154-0038

$1.51

92154A

BOLT,FLANGED,6X50

92154-0526

$2.68

92154B

BOLT,SOCKET,7X60

92154-0527

$10.73

92154C

BOLT,TORX

92154-1621

$2.98

92154D

BOLT,TORX,8X16

92154-1733

$2.75

92154E

BOLT,FLANGED,6X65

92154-2980

$1.27

92171

CLAMP

92171-0594

$7.56

92171A

CLAMP

92171-0761

$8.46

92192

TUBE,BREATHER

92192-1886

$8.90

130

BOLT-FLANGED,8X16

130AA0816

$0.71

670

O RING,7MM

670D1507

$1.24

670A

O RING,8MM

670D1508

$3.29

670B

O RING,10MM

670D1510

$3.57
