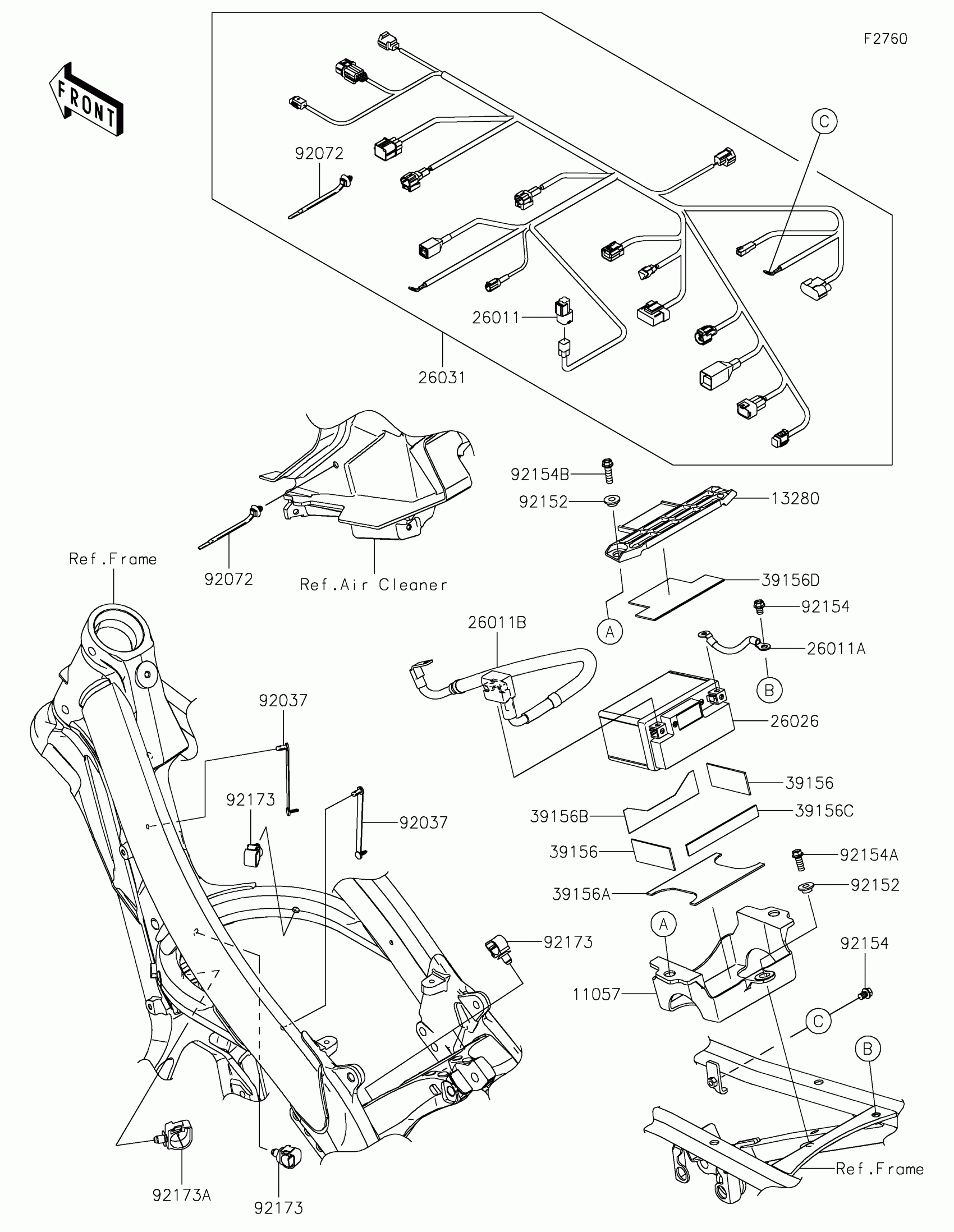

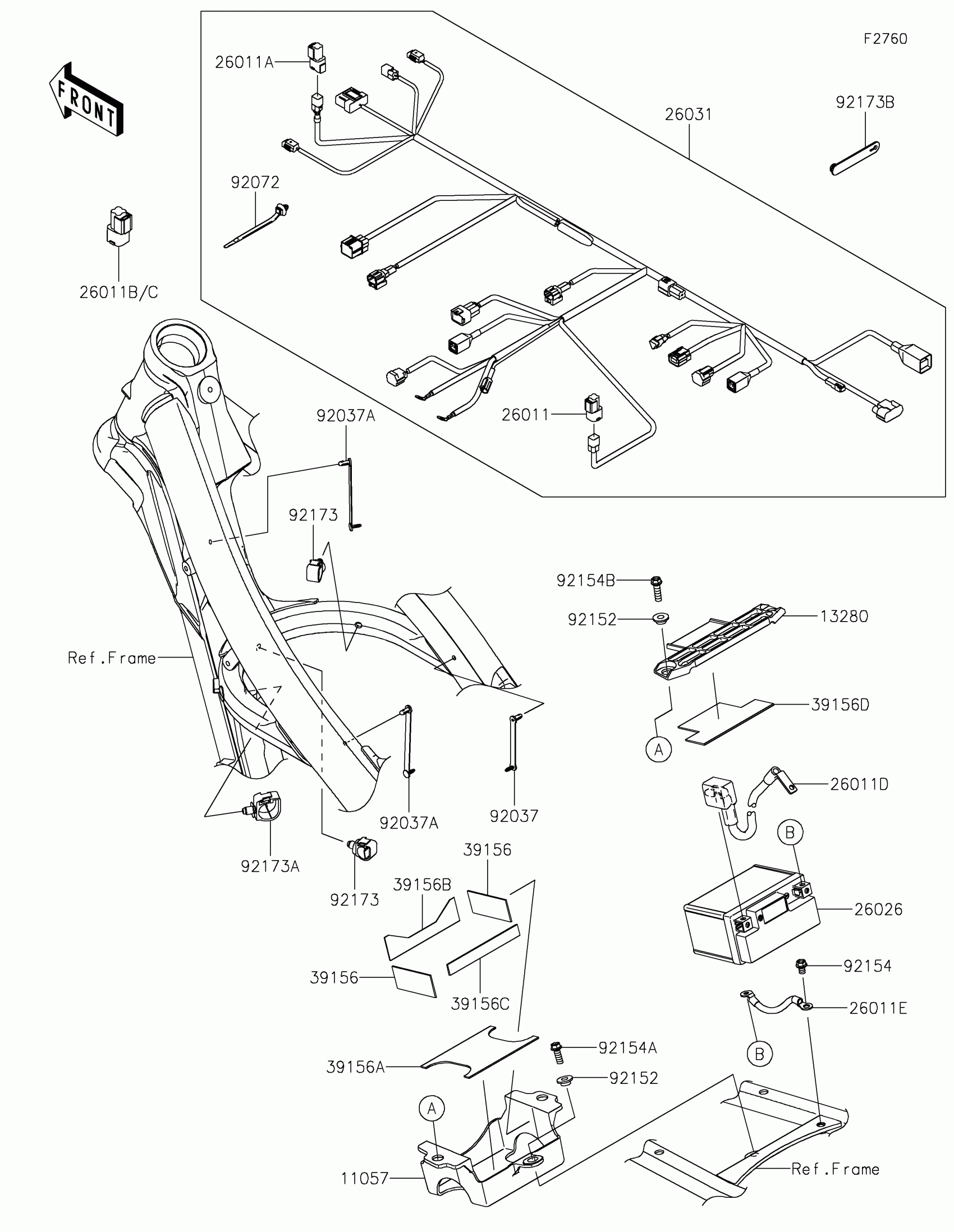

Kawasaki KX™450SR Chassis Electrical Equipment Diagram

Description

Price

11057

BRACKET,BATTERY CASE

11057-1550

$11.76

13280

HOLDER,BATTERY COVER

13280-0912

$9.12

26011

WIRE-LEAD,NATURAL

26011-0273

$14.78

26011A

WIRE-LEAD,GREEN

26011-0727

$12.00

26011B

WIRE-LEAD,MODE SELECT,BLACK

26011-0728

$12.00

26011C

WIRE-LEAD,MODE SELECT,WHITE

26011-0748

$12.00

26011D

WIRE-LEAD,BATTERY(+)

26011-0996

$41.44

26011E

WIRE-LEAD,BATTERY(-)

26011-0997

$29.90

26026

BATTERY-LI-ION-STARTER,HJ01

26026-0003

$245.16

26031

HARNESS,MAIN

26031-3803

$393.18

39156

PAD,25X58X1.5

39156-2419

$1.17

39156A

PAD,100X72X1.5

39156-2420

$4.85

39156B

PAD,FR

39156-2640

$7.75

39156C

PAD,RR

39156-2641

$5.92

39156D

PAD,TOP

39156-2642

$4.63

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92037A

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92152

COLLAR,6.5X10X5.6

92152-0445

$3.74

92154

BOLT,FLANGED,6X8

92154-2962

$0.69

92154A

BOLT,FLANGED,6X16

92154-2965

$0.88

92154B

BOLT,FLANGED,6X20

92154-2966

$0.69

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-0861

$2.11

92173B

CLAMP

92173-1526

$3.56
