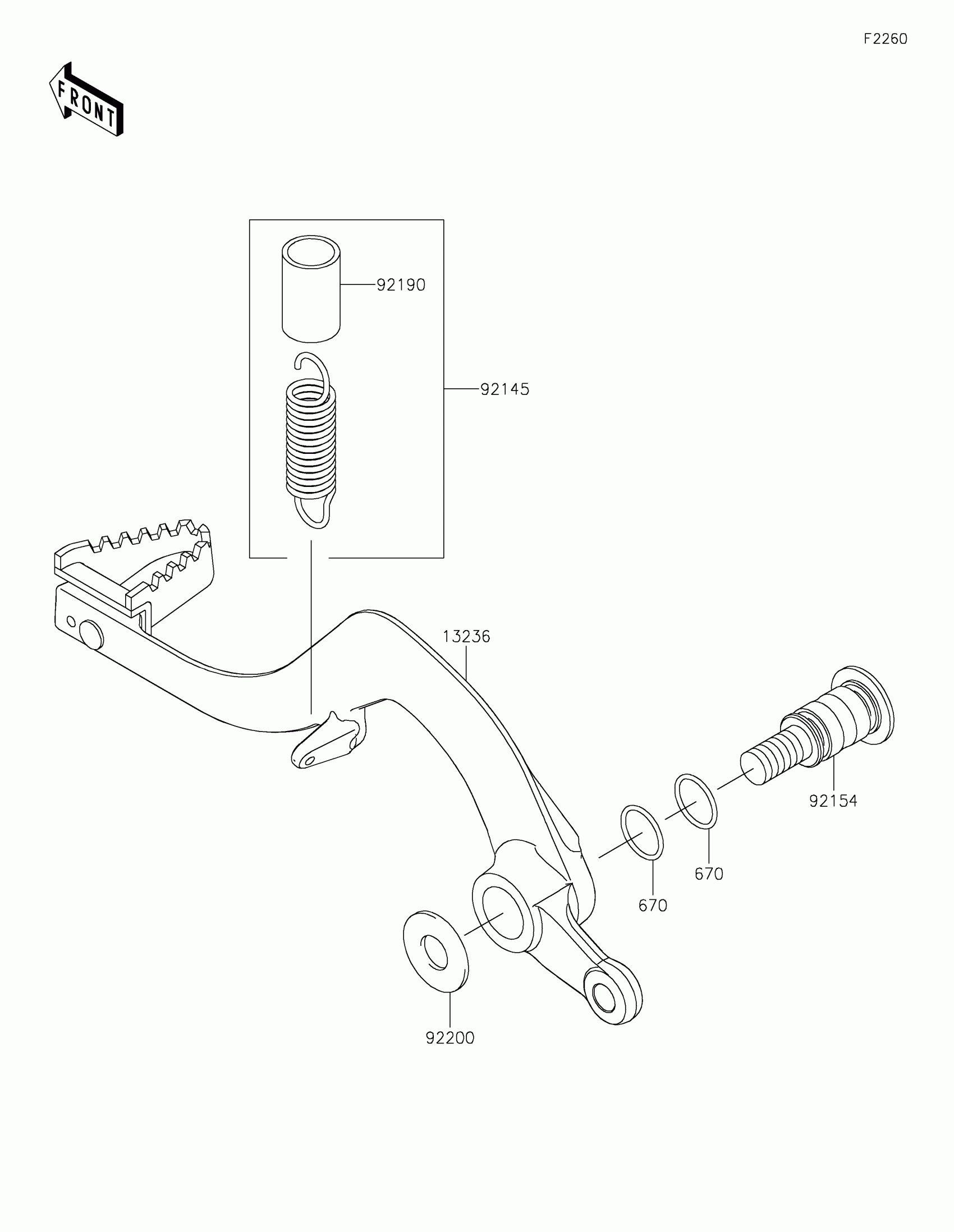

Kawasaki KX™450SR Brake Pedal Diagram

#

Description

Price

13236

LEVER-COMP,BRAKE PEDAL

13236-0838

$114.04

92144

SPRING,BRAKE PEDAL RETURN

92144-1752

$5.55

92154

BOLT,BRAKE PEDAL,10MM

92154-0516

Unavailable

92190

TUBE,13X16X25

92190-1488

$2.98

92200

WASHER,10.5X24X1.5

92200-0154

$1.81

670

O RING,12MM

670B2012

$2.22
