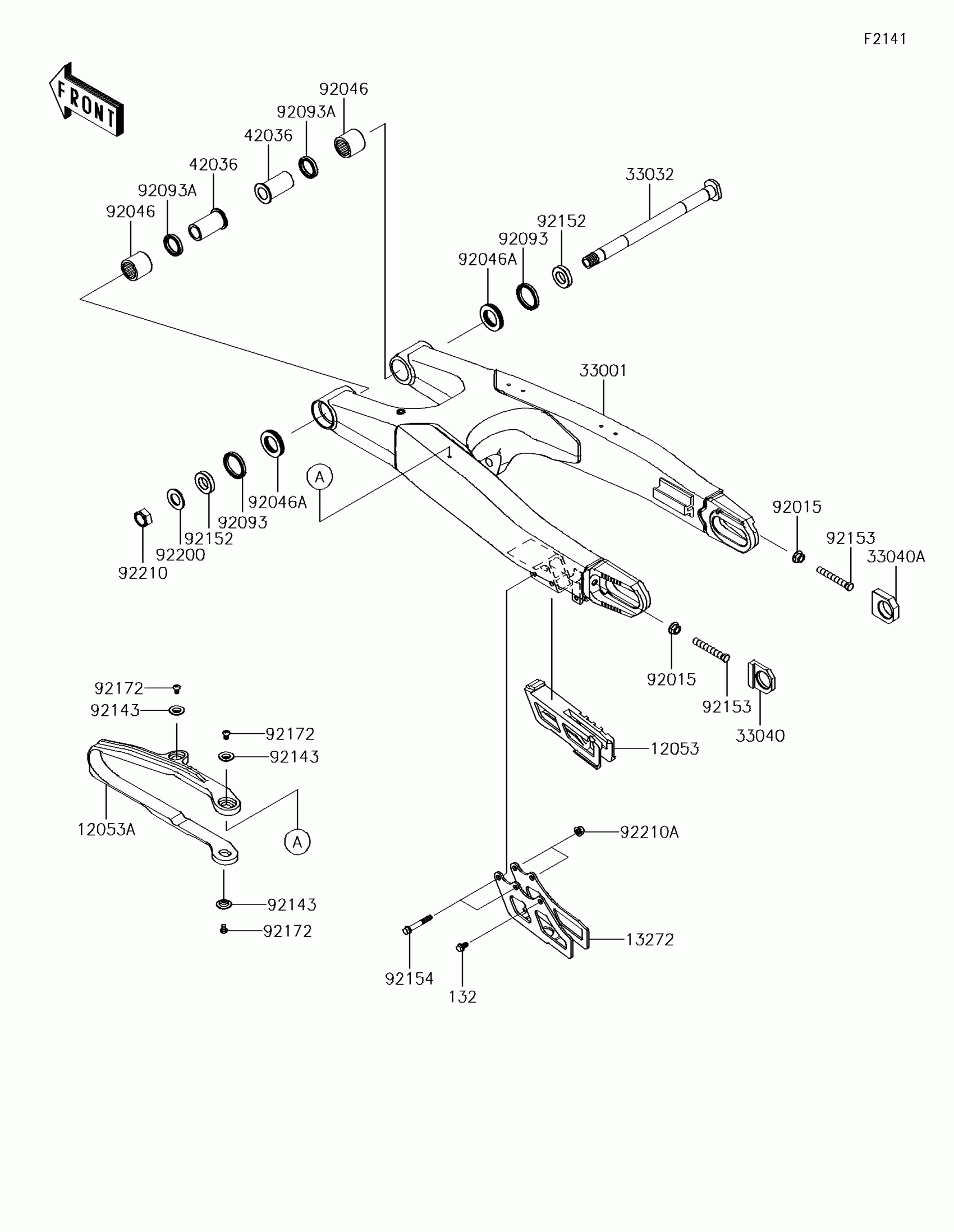

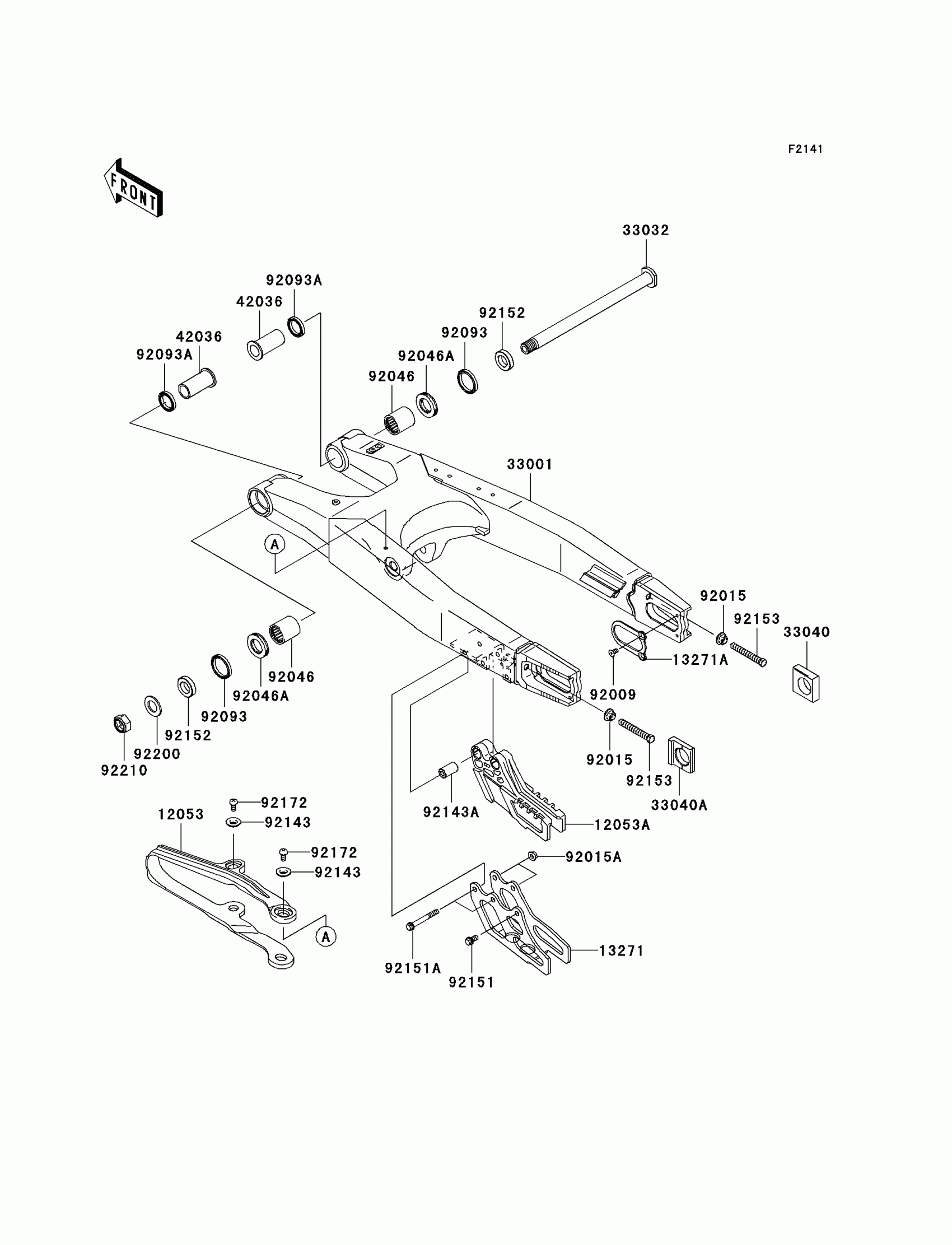

Kawasaki KX™450F Swingarm Diagram

#

Description
Price

12053

GUIDE-CHAIN,DRIVE,FR

12053-0053

$71.19

12053A

GUIDE-CHAIN

12053-0061

$71.19

13271

PLATE,CHAIN GUIDE

13271-0593

$52.85

13271A

PLATE,AXLE

13271-1833

$16.19

33001

ARM-COMP-SWING

33001-0108

$1,084.76

33032

SHAFT-SWING ARM

33032-0012

$48.76

33040

ADJUSTER-CHAIN,RH

33040-0020

$13.86

33040A

ADJUSTER-CHAIN,LH

33040-1189

Unavailable

42036

SLEEVE,SWING ARM,L=47.5

42036-0019

$28.97

92009

SCREW,5X10

92009-1828

$1.76

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92046

BEARING-NEEDLE,TA2230Z

92046-1174

$32.96

92046A

BEARING-NEEDLE,NTBR22356E01

92046-1240

$14.42

92093

SEAL,SDO29X35X4.5

92093-1434

$6.94

92093A

SEAL,SDO22X29X5

92093-1435

$6.70

92143

COLLAR

92143-1676

$4.67

92143A

COLLAR,6.5X14X24

92143-1867

Unavailable

92151

BOLT,6X12

92151-1133

Unavailable

92151A

BOLT,6X50

92151-1234

$2.03

92152

COLLAR,17.1X29X6

92152-0292

$9.93

92153

BOLT,8X56

92153-0620

$2.84

92172

SCREW,5X8

92172-0119

$1.54

92200

WASHER,17.2X30X2.3

92200-0285

$2.98

92210

NUT,LOCK,16MM

92210-0285

$16.51
