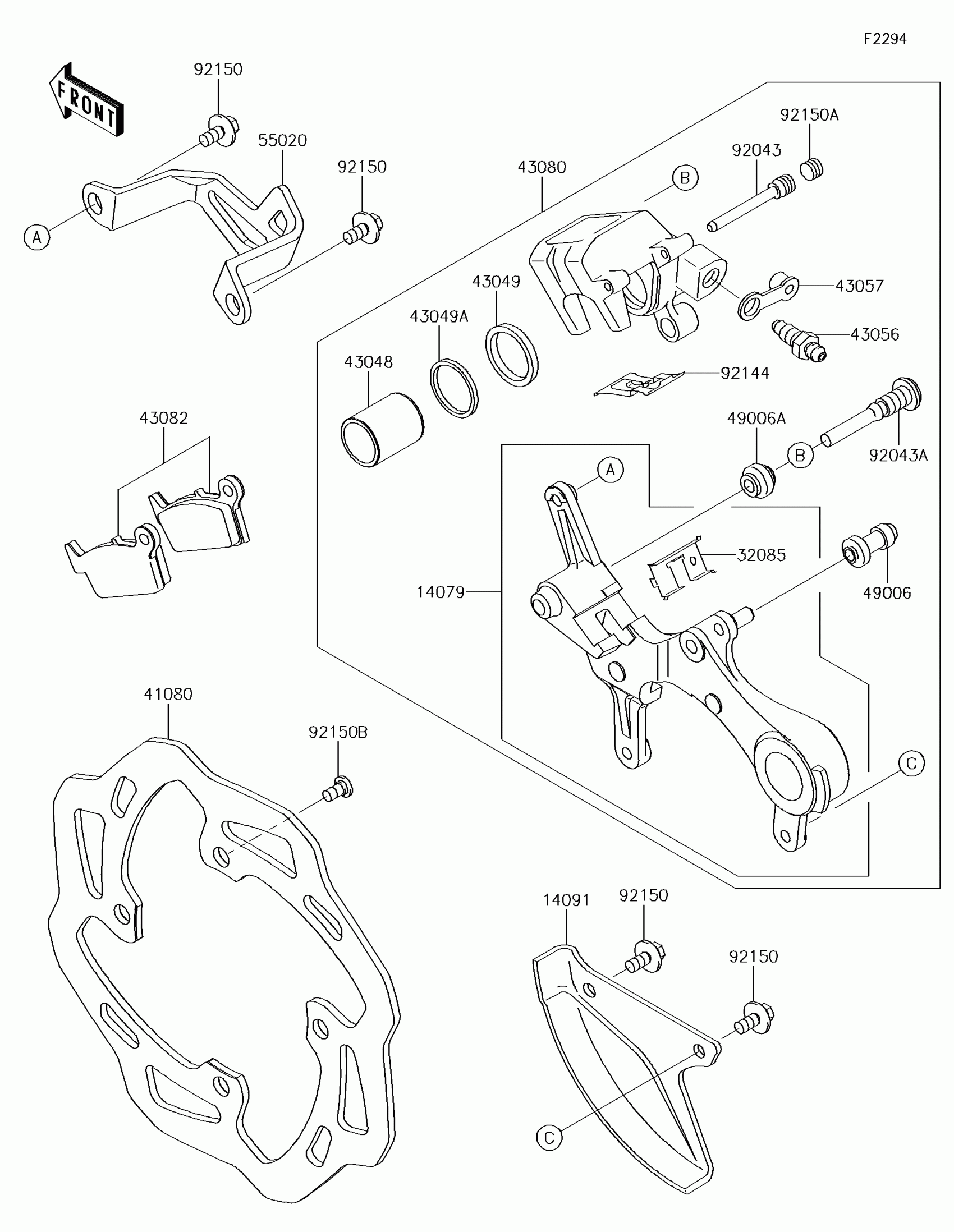

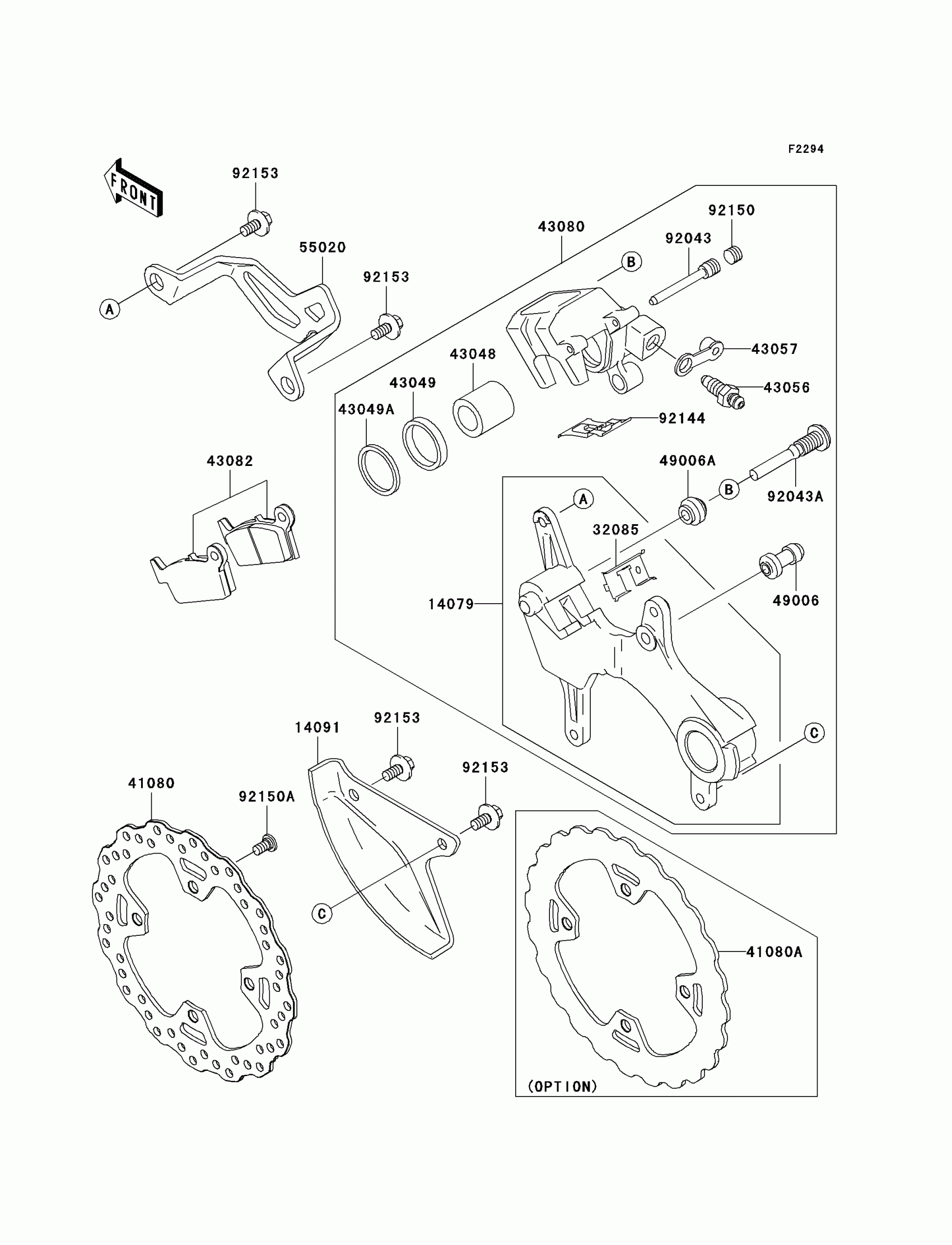

Kawasaki KX™450F Rear Brake Diagram

#

Description
Price

14079

HOLDER-ASSY,REAR CALIPER

14079-0022

$160.10

14091

COVER,REAR DISC,WHITE

14091-1523-RZ

$38.30

32085

STOPPER,PAD

32085-1386

$6.75

41080

DISC,RR

41080-0076

$258.67

41080A

DISC,RR

41080-0094

$226.08

43048

PISTON-CALIPER

43048-1066

$74.44

43049

PACKING

43049-1063

$6.13

43049A

PACKING

43049-1064

$4.64

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR

43080-0037

$281.55

43082

PAD-ASSY-BRAKE

43082-0048

$72.99

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

55020

GUARD,RR CALIPER

55020-0397

$38.16

92043

PIN,HANGER

92043-1507

$10.44

92043A

PIN

92043-1508

$10.44

92144

SPRING,PAD

92144-1819

$6.13

92150

BOLT,PLUG

92150-1692

$5.99

92150A

BOLT,DISC PLATE,8X15

92150-1811

$3.81

92153

BOLT,FLANGED,6X14

92153-0936

$2.09
