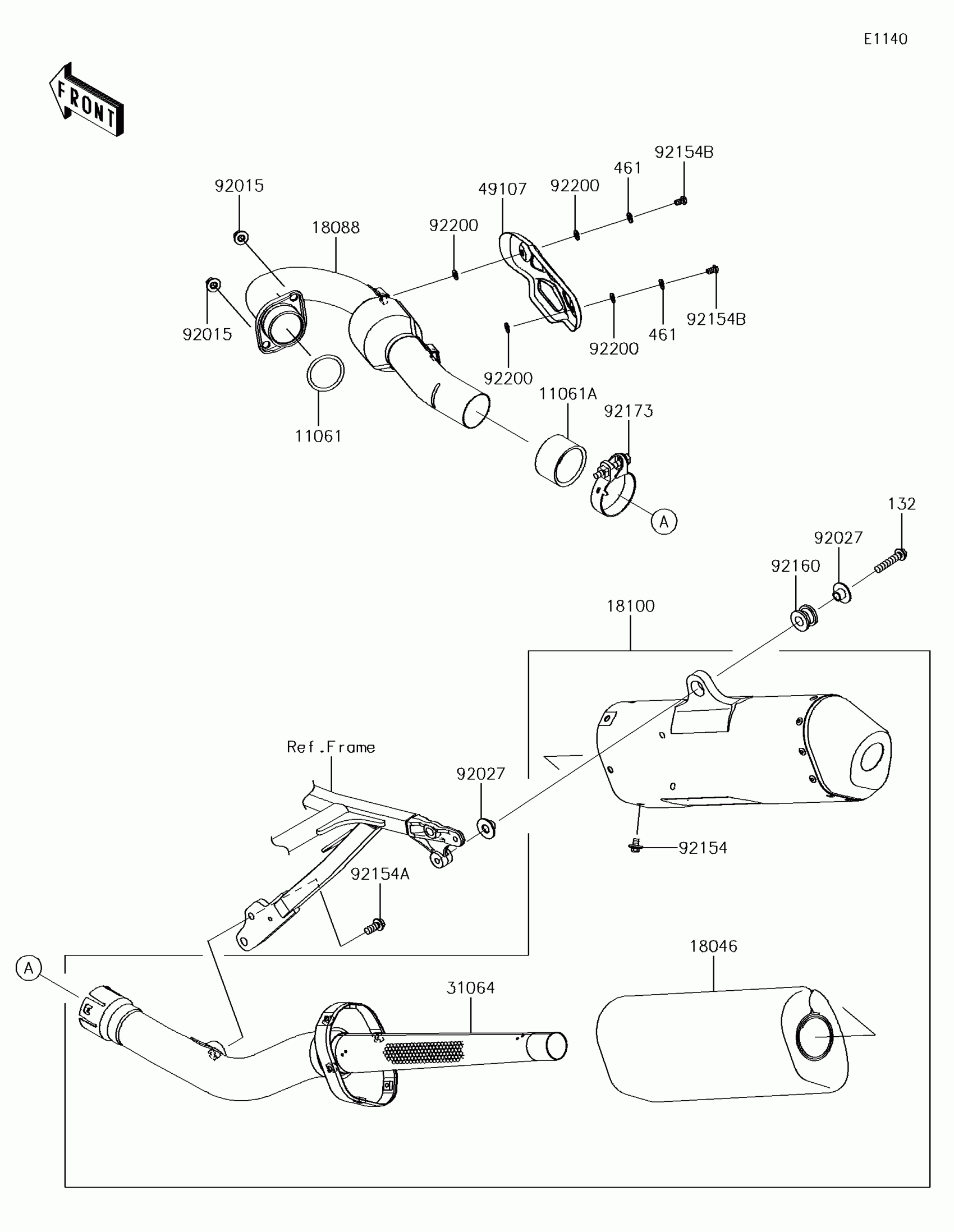

Kawasaki KX™450F Muffler(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X18

132L0818

Unavailable

411

WASHER-PLAIN,8.5X18X1.6

411AB0800

$1.32

411A

WASHER-PLAIN,6MM

411S0600

$1.49

461

WASHER-SPRING,6MM

461S0600

$0.84

11061

GASKET,38.9X46.4X3.0

11061-0082

$5.80

11061A

GASKET,41.0X48.7X32.0

11061-0226

$31.22

18046

WOOL

18046-0081

$198.44

18088

PIPE-EXHAUST

18088-0356

$370.60

18100

BODY-ASSY-MUFFLER

18100-0077

$969.05

31064

PIPE-COMP

31064-0128

$589.35

49107

COVER-EXHAUST PIPE

49107-0077

$87.20

92015

NUT,8MM

92015-1402

$3.57

92151

BOLT,SOCKET,6X10

92151-1449

$1.57

92151A

BOLT,FLANGED,6X10

92151-1822

$1.51

92153

BOLT,FLANGED-SMALL,8X18

92153-1963

Unavailable

92171

CLAMP

92171-0653

$23.49
