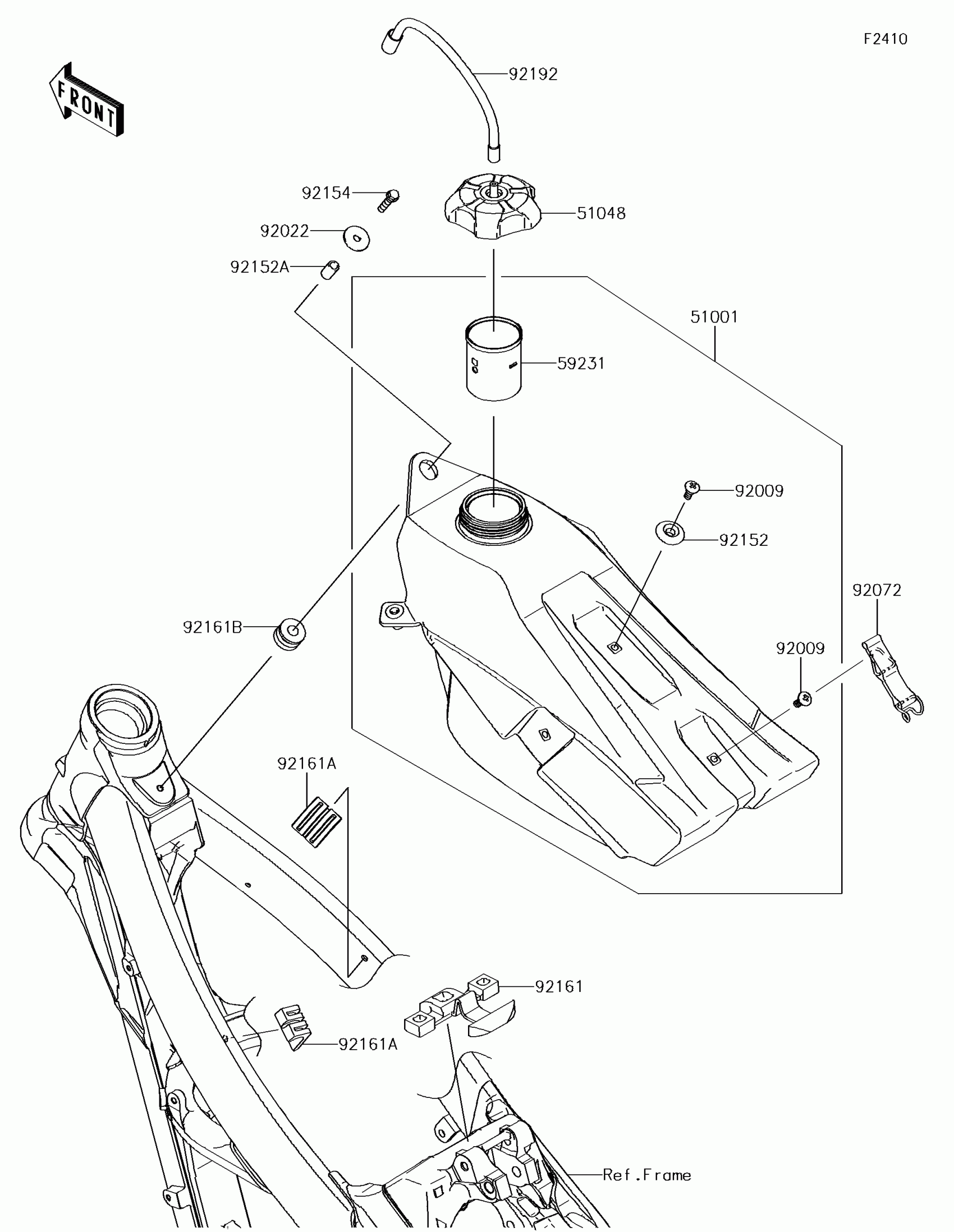

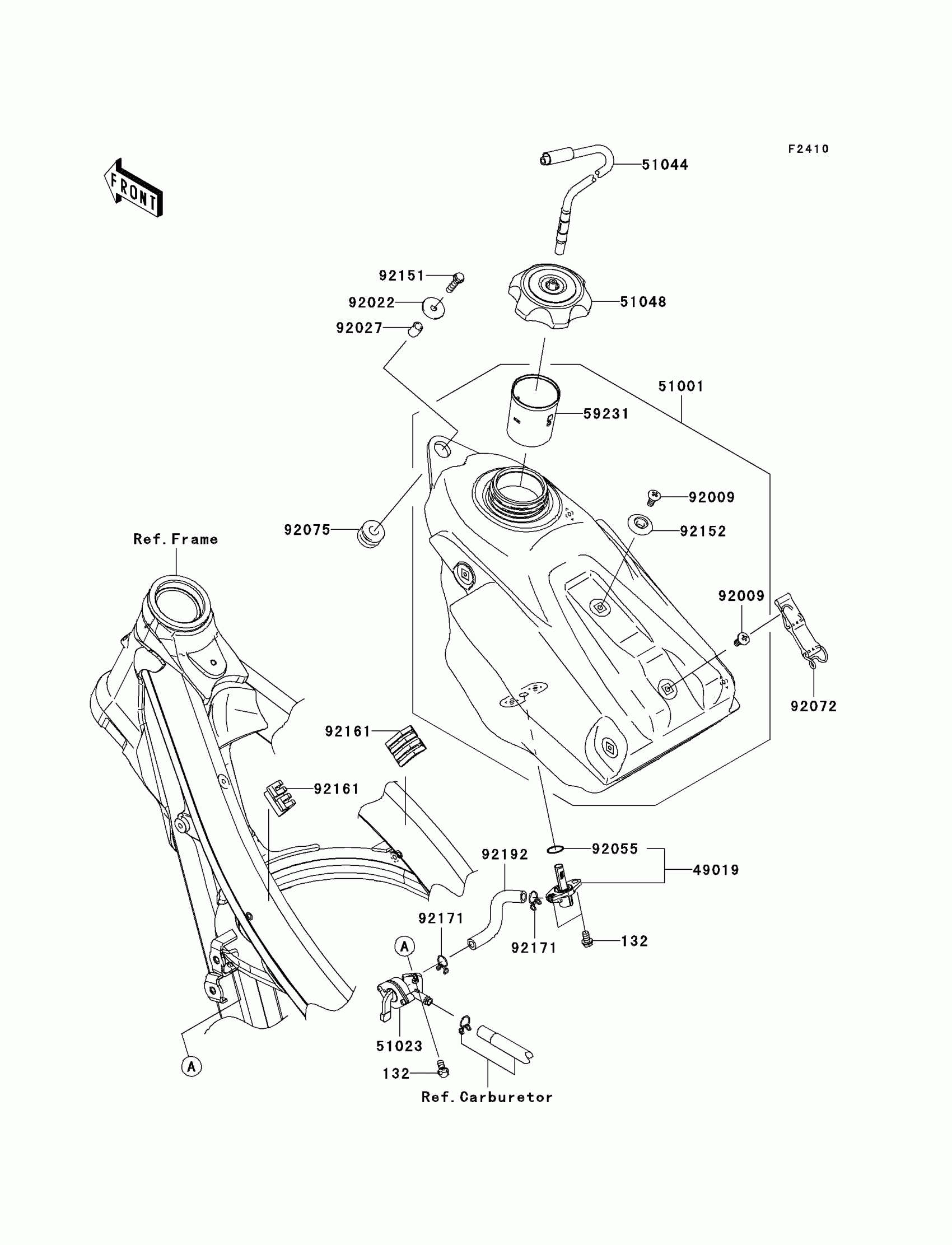

Kawasaki KX™450F Fuel Tank Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132L0612

Unavailable

49019

FILTER-FUEL

49019-0002

$29.83

51001

TANK-COMP-FUEL,F.BLACK

51001-0095-6Z

$583.38

51023

TAP-ASSY,FUEL

51023-0019

Unavailable

51044

TUBE-ASSY,TANK CAP

51044-0023

$20.86

51048

CAP-ASSY-TANK,FUEL

51048-0009

$53.60

59231

FILLER

59231-0019

$5.80

92009

SCREW,6MM

92009-1971

$3.19

92022

WASHER,6.5X24X2

92022-1690

$2.99

92027

COLLAR,6.8X10X14

92027-1966

$4.42

92055

RING-O,FUEL TAP PACKING

92055-0078

$5.51

92072

BAND,FUEL TANK

92072-0045

$11.06

92075

DAMPER

92075-1787

$4.93

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR

92152-1346

$3.19

92161

DAMPER,FUEL TANK,SIDE

92161-0254

$5.05

92171

CLAMP

92171-0149

$3.29

92192

TUBE,FUEL

92192-0223

$8.37
