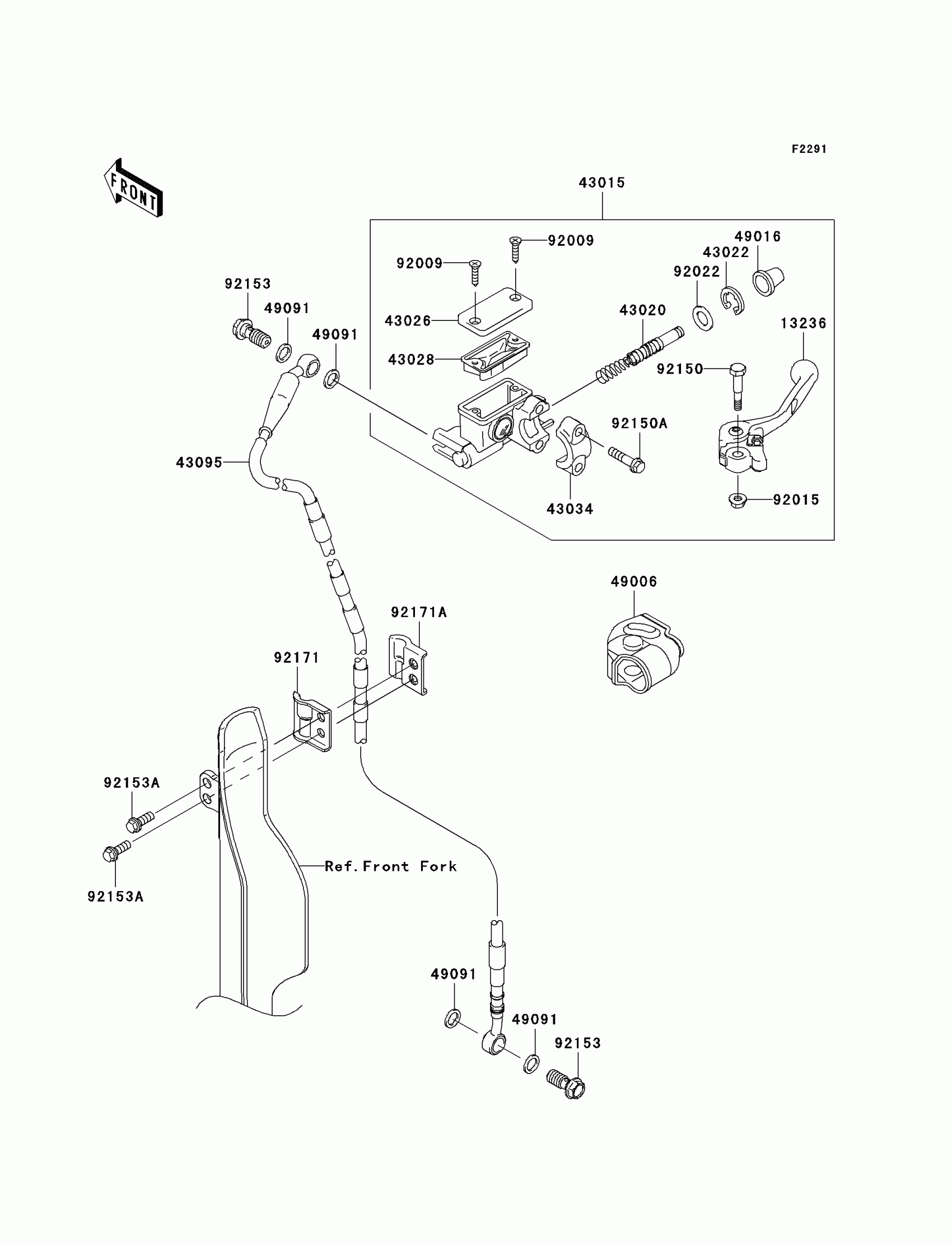

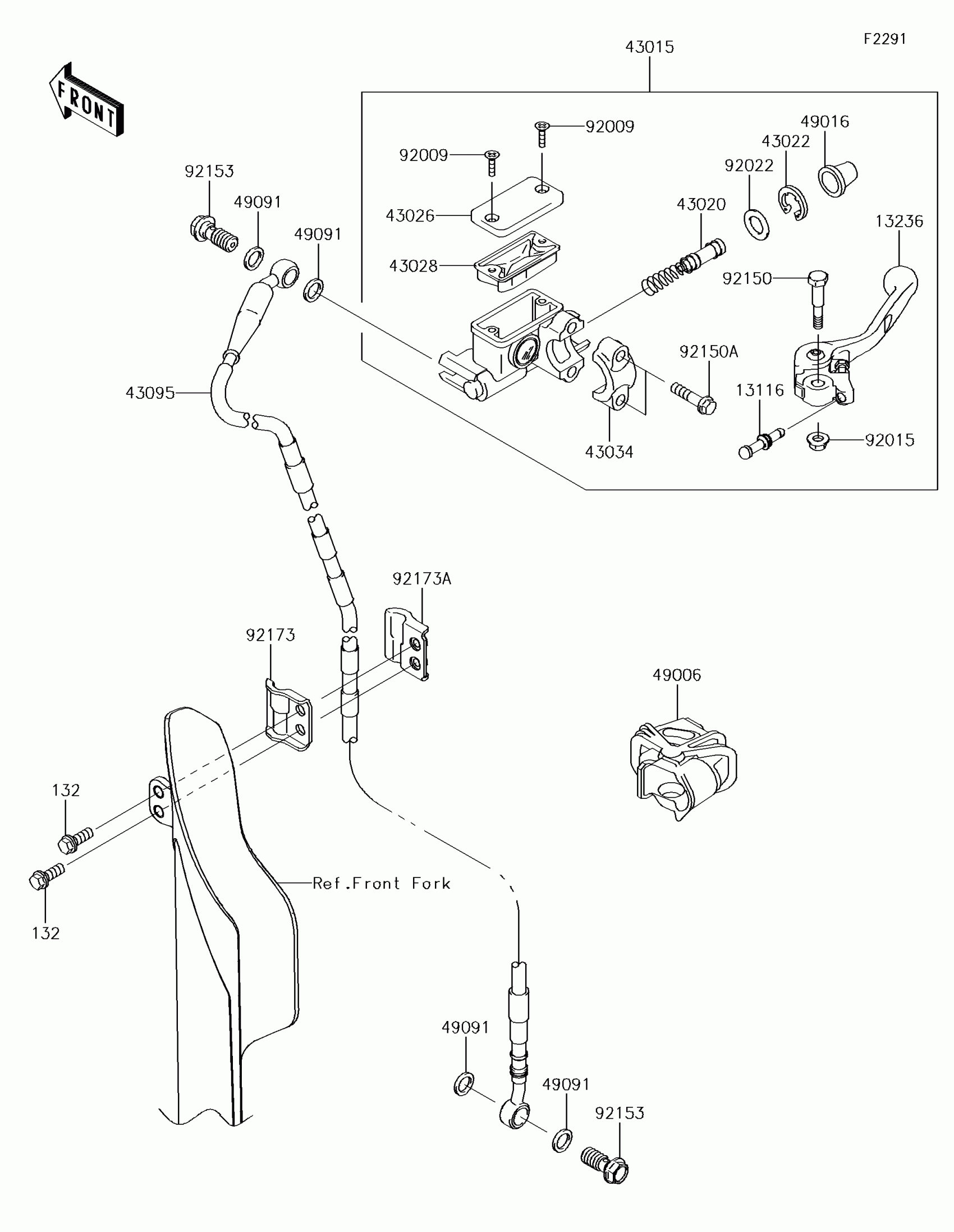

Kawasaki KX™450F Front Master Cylinder Diagram

Description

Price

13236

LEVER-COMP,FRONT BRAKE

13236-1346

$29.86

43015

CYLINDER-ASSY-MASTER,FR

43015-1674

Unavailable

43020

PISTON-COMP-BRAKE

43020-1123

Unavailable

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1075

$12.97

43028

DIAPHRAGM

43028-1067

$14.12

43034

HOLDER-BRAKE

43034-1110

$14.67

43095

HOSE-BRAKE,FR

43095-0286

$142.33

49006

BOOT,FRONT BRAKE LEVER

49006-1344

$11.49

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92022

WASHER

92022-1814

$4.17

92150

BOLT,LEVER SET

92150-1451

$10.80

92150A

BOLT

92150-1452

$4.18

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,6X16

92153-0695

$2.14

92171

CLAMP,BRAKE HOSE,LH

92171-0481

Unavailable

92171A

CLAMP,BRAKE HOSE,RH

92171-0482

Unavailable
