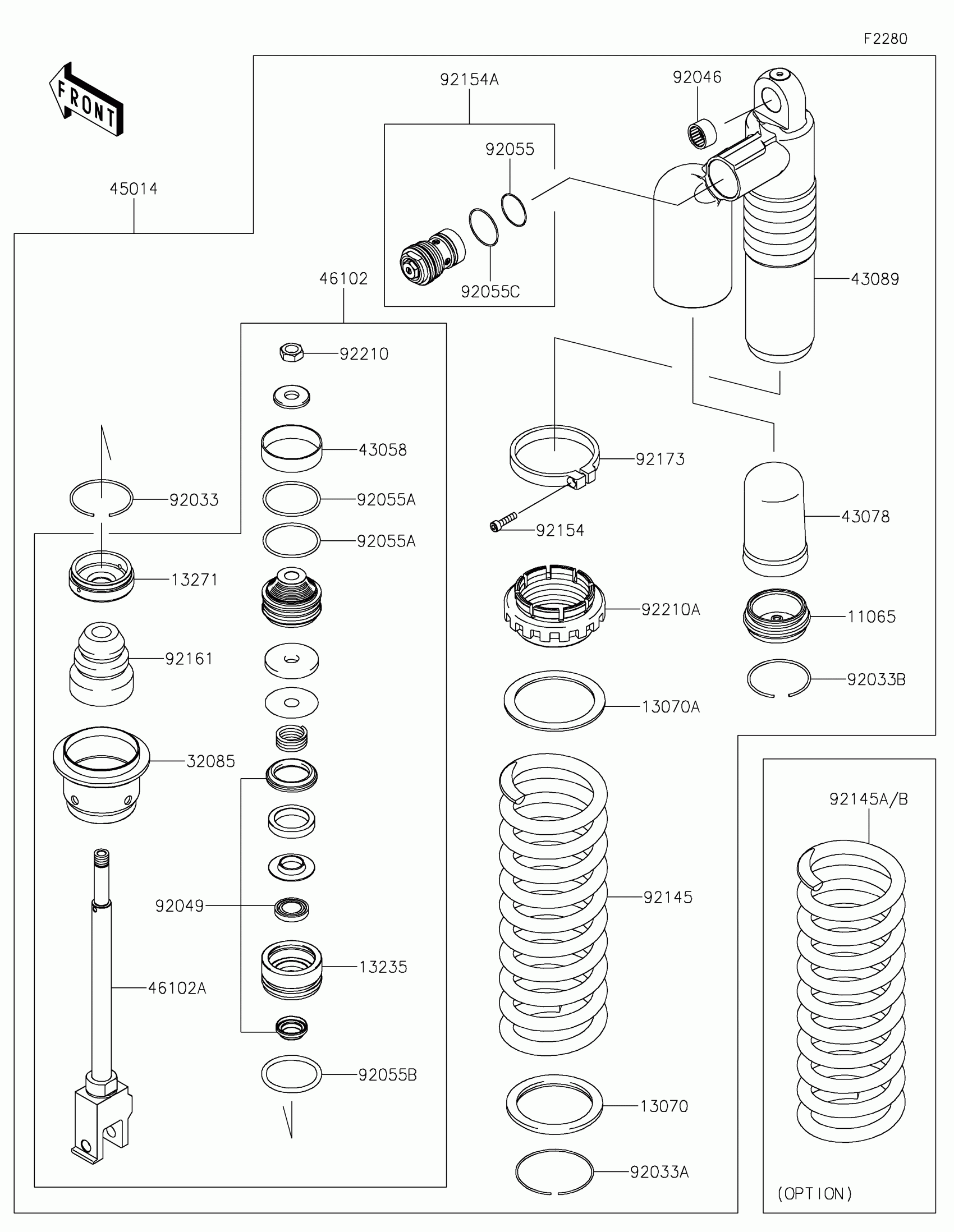

Kawasaki KX™450 Shock Absorber(s) Diagram

#

Description
Price

11065

CAP,CHAMBER

11065-1294

$47.49

13070

GUIDE,SPRING SEAT

13070-0057

$31.05

13070A

GUIDE

13070-0889

$31.16

13235

GUIDE-COMP,ROD

13235-0012

$44.47

13271

PLATE,END

13271-0858

$25.78

32085

STOPPER,SPRING SEAT

32085-0077

$21.24

43058

RING,PISTON

43058-0012

$23.49

43078

RESERVOIR

43078-0599

$26.14

43089

CYLINDER-SHOCKABSORBER

43089-0033

$652.26

45014

SHOCKABSORBER,BLACK+GRN

45014-0612-52L

$1,315.07

46102

ROD,PISTON

46102-0625

$347.35

46102A

ROD,PISTON COMP

46102-0635

$492.93

92033

RING-SNAP

92033-0040

$4.32

92033A

RING-SNAP

92033-0042

$11.32

92033B

RING-SNAP

92033-0797

$2.37

92046

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

$14.73

92049

SEAL-OIL

92049-0151

$40.56

92055

RING-O,PLUG BOLT

92055-0098

$3.76

92055A

RING-O

92055-0100

$7.61

92055B

RING-O

92055-0101

$7.61

92055C

RING-O

92055-0911

$2.41

92145

SPRING,REAR SHOCK,K=52N/MM,BLK

92145-1746-10

$212.17

92145A

SPRING,REAR SHOCK,K=54N/MM,BLK

92145-1759-10

$212.17

92145B

SPRING,REAR SHOCK,K=56N/MM,BLK

92145-1830-10

$212.17

92154

BOLT,PLUG,G.B.GREEN

92154-3809-50Y

$172.63

92154A

BOLT

92154-3810

$1.09

92161

DAMPER,STOPPER

92161-0329

$20.63

92173

CLAMP

92173-1902

$74.03

92210

NUT,PISTON

92210-0270

$4.14

92210A

NUT

92210-1661

$45.11
