2020 Kawasaki KX™450 Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2020 Kawasaki KX™450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

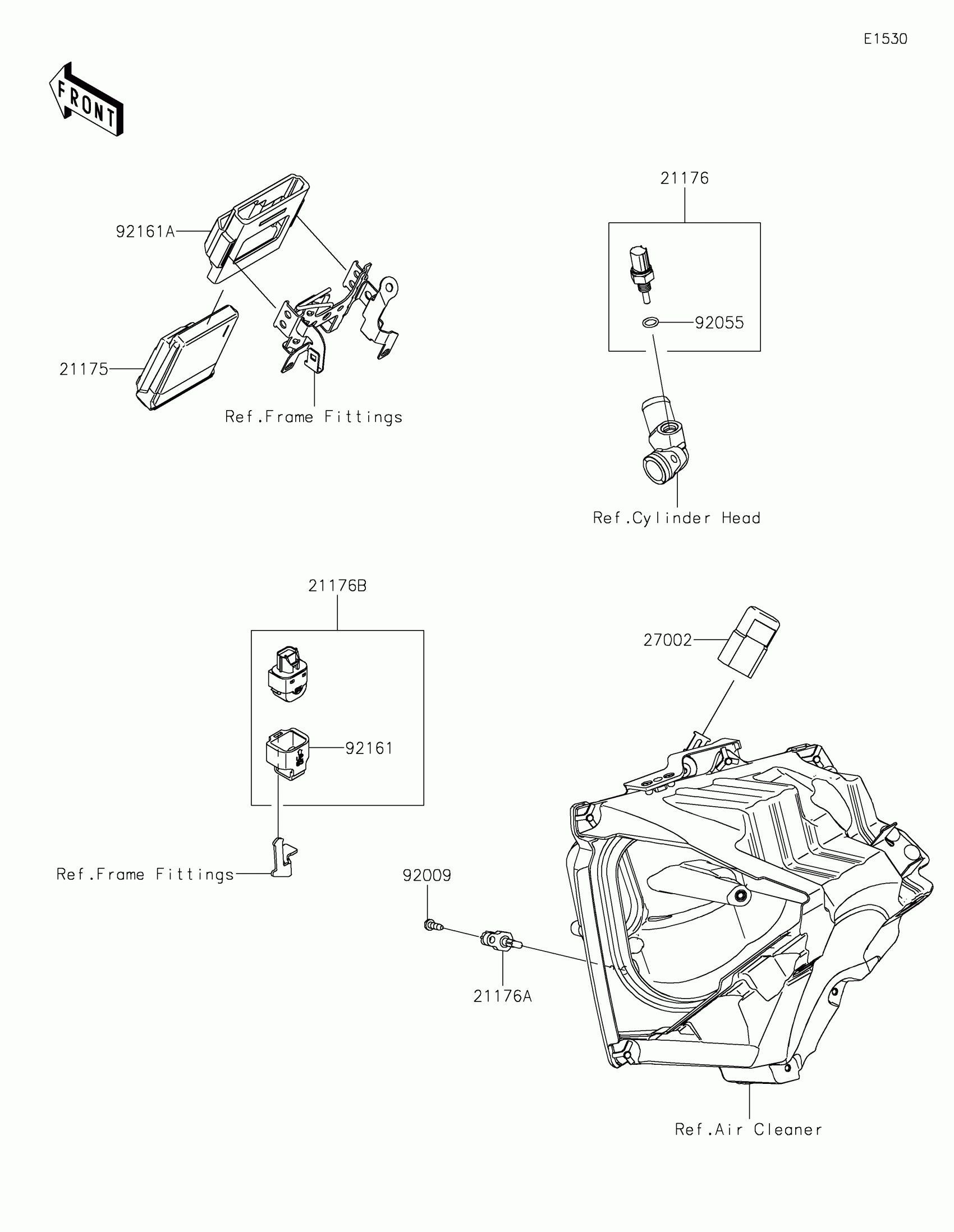

2020 Kawasaki KX™450 Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

1

$747.99

In stock

21176

SENSOR,WATER TEMP

21176-0009

1

$63.44

In stock

21176A

1

$24.07

In stock

21176B

SENSOR,VEHICLE-DOWN

21176-0704

1

$84.36

In stock

27002

RELAY-ASSY

27002-1086

1

$33.76

In stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92161

DAMPER

92161-0951

1

$14.14

In stock

92161A

DAMPER,ECU

92161-0976

1

$17.80

In stock
