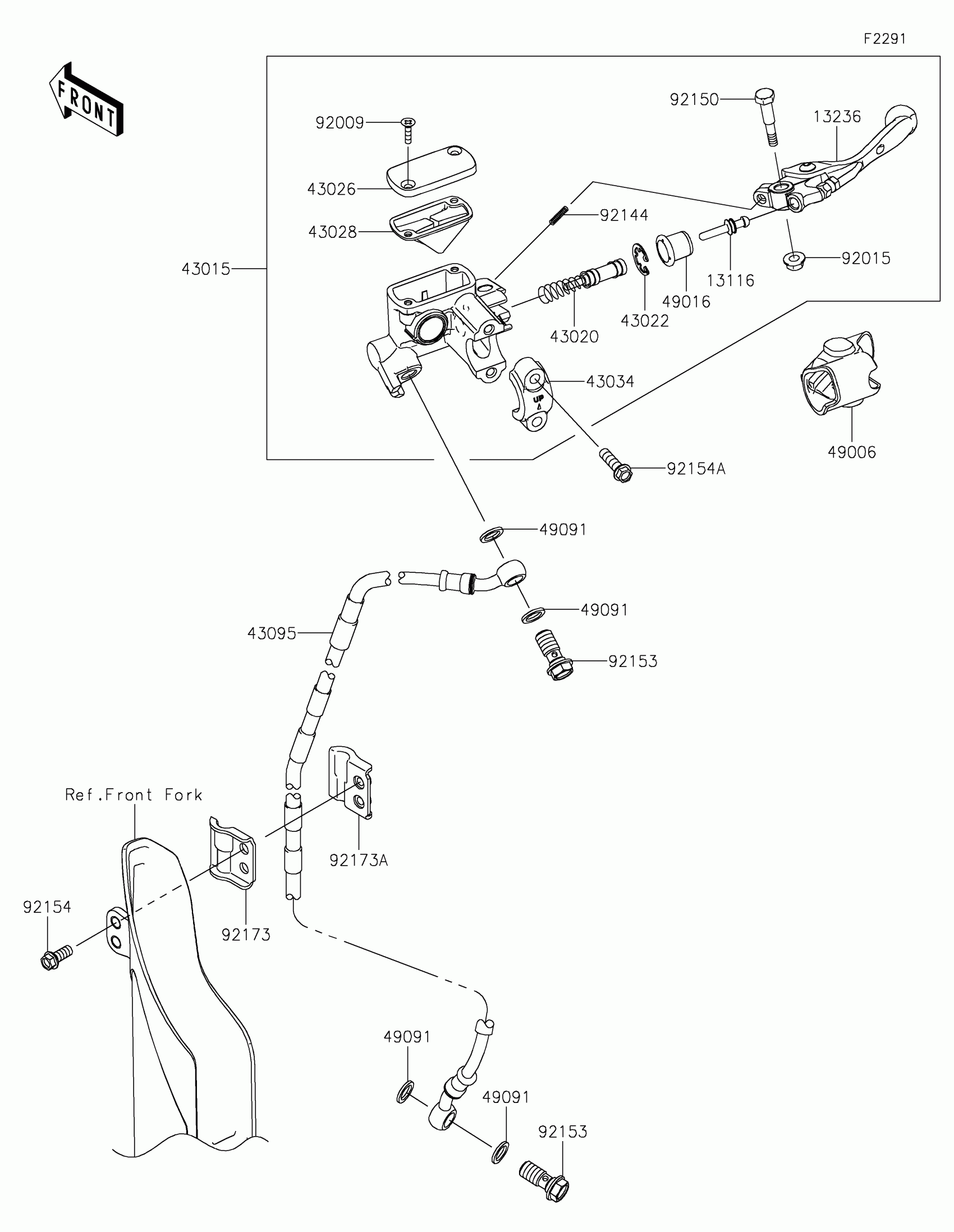

Find the part on the Front Master Cylinder diagram for your 2024 Kawasaki KX™250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki KX™250X Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13116

ROD-PUSH

13116-0744

1

$13.63

In stock

13236

1

$45.52

In stock

43015

1

$316.46

In stock

43020

PISTON-COMP-BRAKE

43020-0031

1

$38.45

In stock

43022

1

$4.14

In stock

43026

1

$15.20

In stock

43028

DIAPHRAGM

43028-0023

1

$17.51

In stock

43034

HOLDER-BRAKE

43034-1110

1

$15.29

In stock

43095

1

$132.06

In stock

49006

BOOT,BRAKE LEVER

49006-0606

1

$9.58

In stock

49016

1

$6.90

In stock

49091

1

$1.81

In stock

92009

SCREW

92009-1795

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1

$4.37

In stock

92144

SPRING,RETURN

92144-1725

1

$7.60

In stock

92150

BOLT,LEVER SET

92150-1451

1

$11.26

In stock

92153

BOLT,OIL,L=23

92153-1419

1
Out of stock

92154

BOLT,FLANGED,6X14

92154-2964

1

$0.69

In stock

92154A

BOLT,6X22

92154-3780

1

$0.88

In stock

92173

CLAMP,BRAKE HOSE,LH

92173-1177

1

$7.56

In stock

92173A

CLAMP,BRAKE HOSE,RH

92173-1178

1

$10.58

In stock
