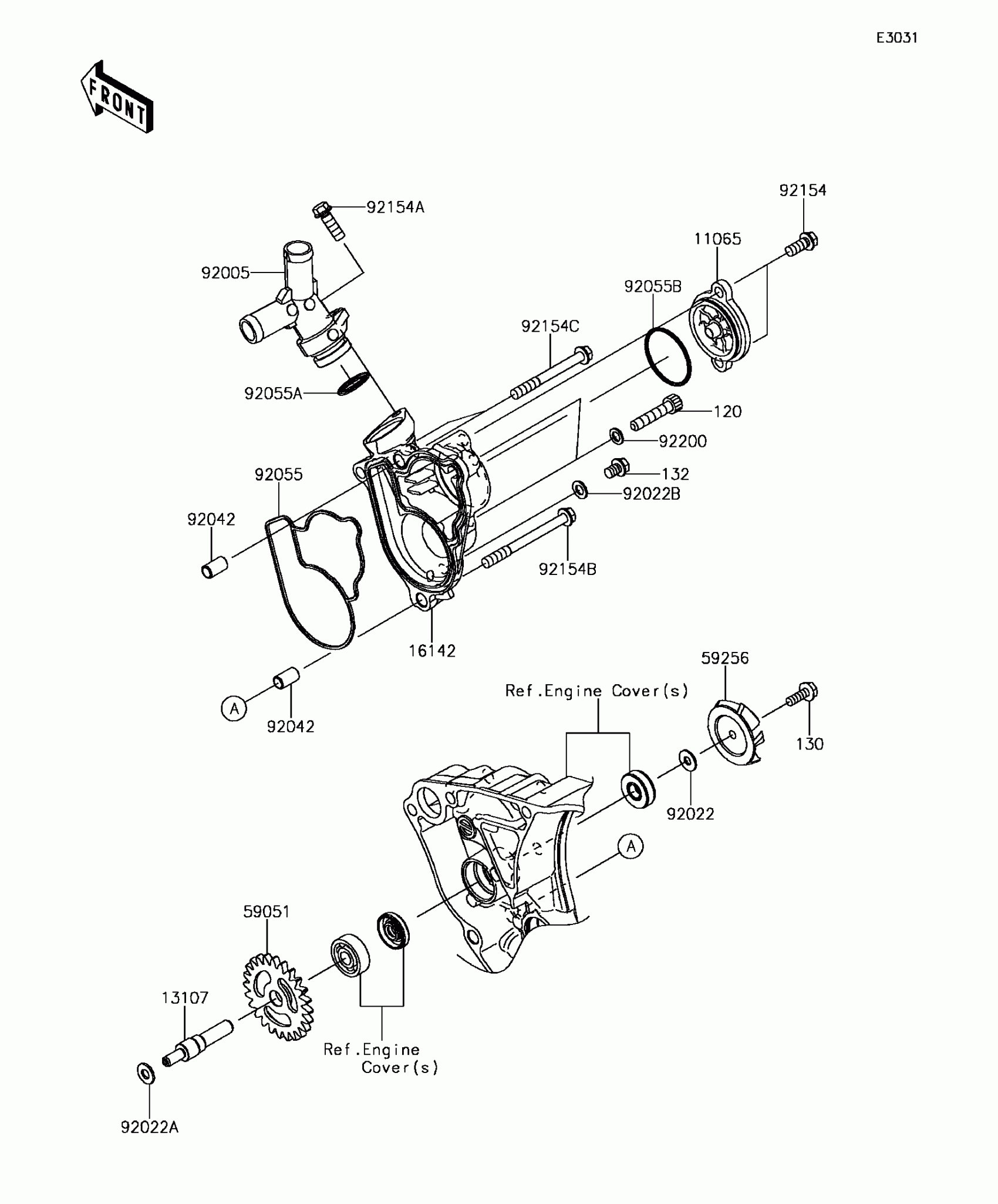

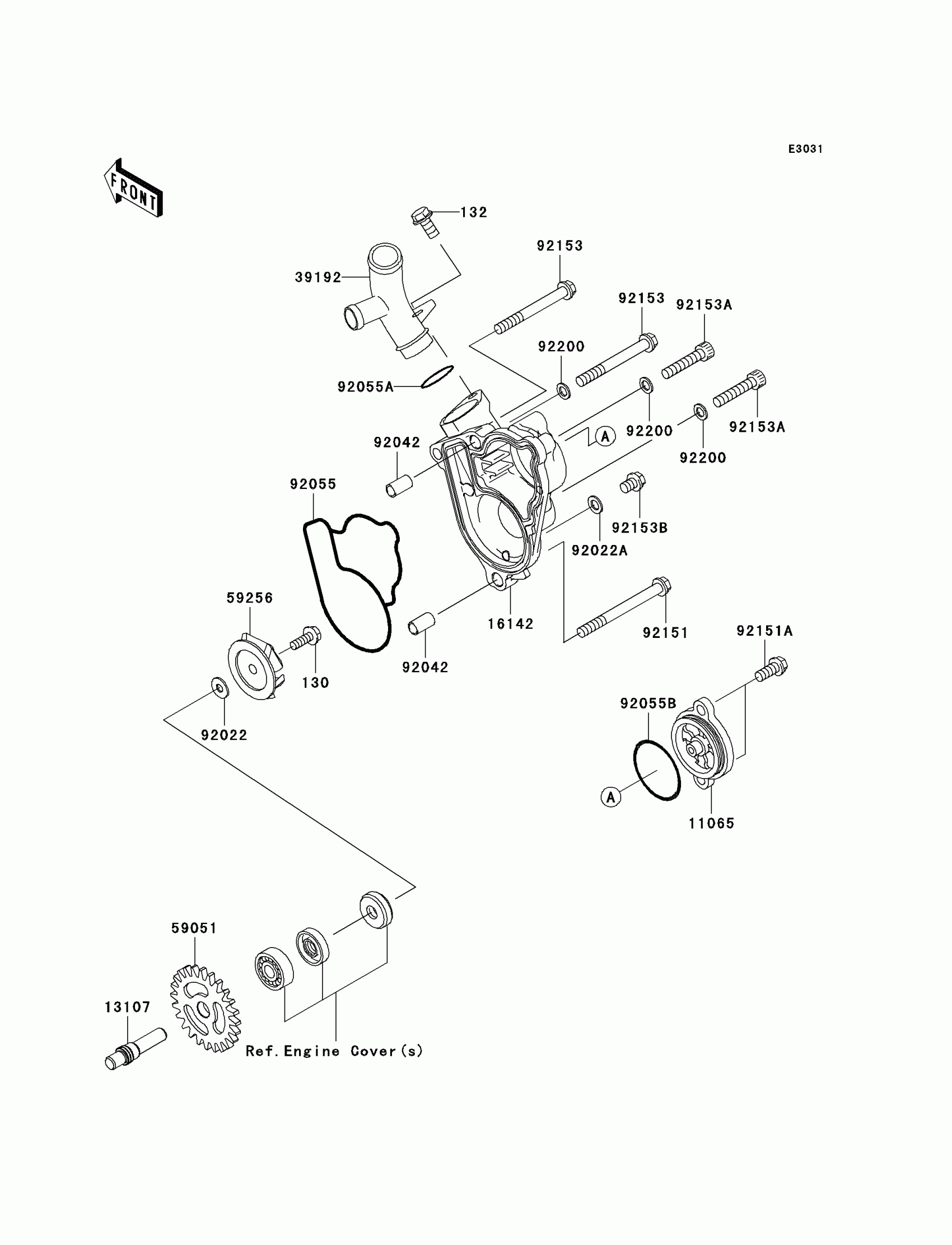

Kawasaki KX™250F Water Pump Diagram

#

Description
Price

130

BOLT-FLANGED,5X14

130Z0514

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132L0612

Unavailable

11065

CAP

11065-0087

$17.20

13107

SHAFT,WATER PUMP

13107-0130

Unavailable

16142

COVER-PUMP,WATER

16142-0020

$131.56

39192

PIPE-WATER

39192-0037

$29.60

59051

GEAR-SPUR,WATER PUMP

59051-0061

$49.52

59256

IMPELLER

59256-1065

$32.28

92022

WASHER,5.2X13X1

92022-1380

$3.29

92022A

WASHER,6.2X11X1

92022-304

$2.76

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92055

RING-O,WATER PUMP

92055-0010

$5.86

92055A

RING-O,18.8X2.4

92055-1308

$4.18

92055B

RING-O,35.2X1.9

92055-520

$4.04

92151

BOLT,6X65

92151-1199

$4.32

92151A

BOLT,6X14

92151-1423

$0.76

92153

BOLT,6X55

92153-0696

$3.69

92153A

BOLT,6X30

92153-0844

Unavailable

92153B

BOLT,6X8

92153-0860

$1.81

92200

WASHER,6.1X10.0X1.0

92200-0190

$1.85
