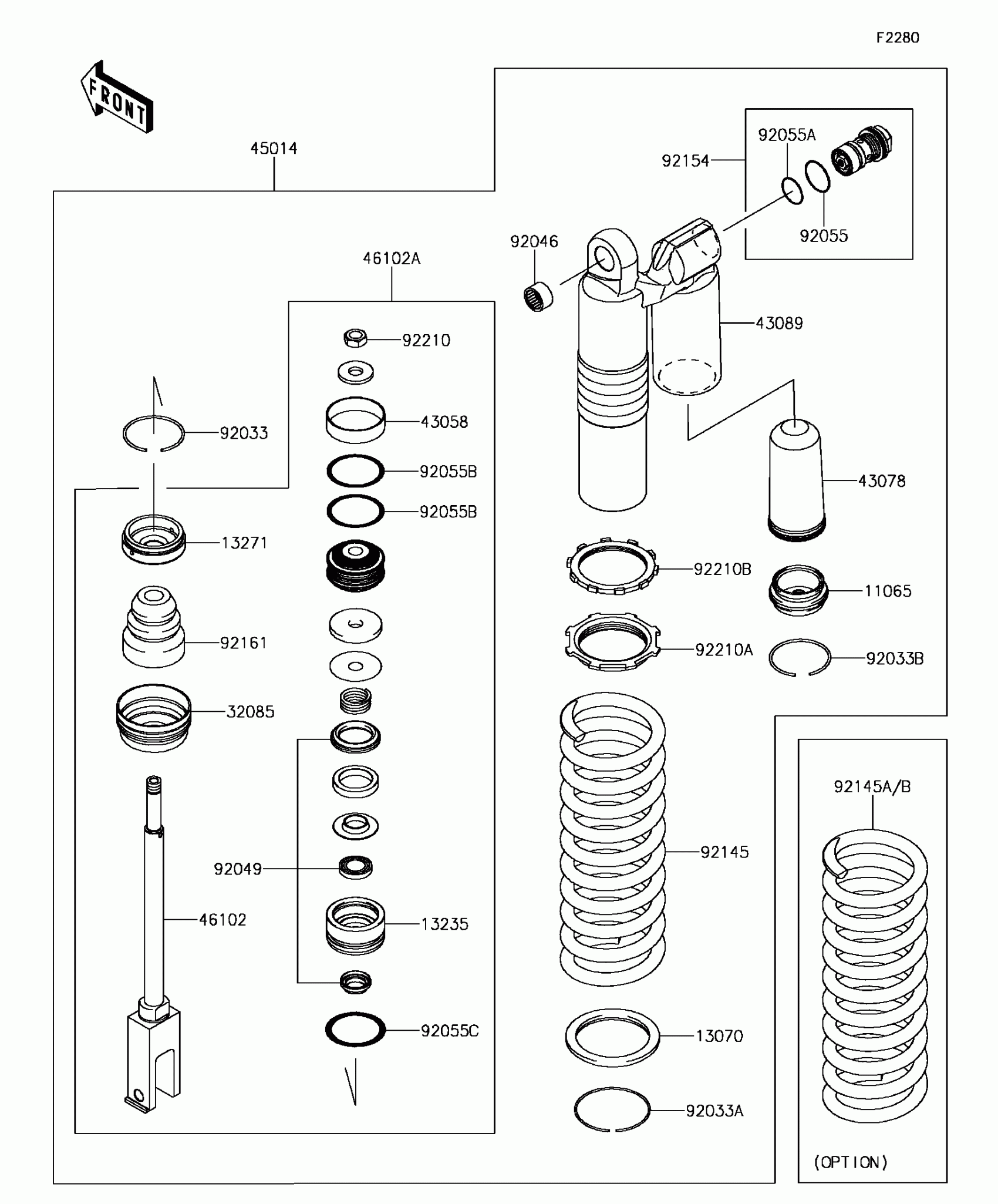

Kawasaki KX™250F Shock Absorber(s) Diagram

#

Description
Price

11065

CAP,AIR VALVE

11065-0145

$8.37

11065A

CAP,CHAMBER

11065-0164

$52.87

13070

GUIDE,SPRING SEAT

13070-0057

$31.05

13235

GUIDE-COMP,ROD

13235-0002

$46.07

13271

PLATE,END

13271-0858

$25.78

32085

STOPPER,SPRING SEAT

32085-0077

$21.24

43058

RING,PISTON

43058-0012

$23.49

43078

RESERVOIR

43078-0030

$29.74

43089

CYLINDER-SHOCKABSORBER,GOLD

43089-0012-829

$692.46

45014

SHOCKABSORBER

45014-5039

$1,432.34

46102

ROD

46102-0088

$363.90

46102A

ROD,PISTON

46102-0106

$559.19

92033

RING-SNAP

92033-0040

$4.32

92033A

RING-SNAP

92033-0041

$4.78

92033B

RING-SNAP

92033-0042

$11.32

92046

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

$14.73

92049

SEAL-OIL

92049-0075

$46.49

92055

RING-O,PLUG BOLT

92055-0098

$3.76

92055A

RING-O,PLUG BOLT

92055-0099

$3.56

92055B

RING-O

92055-0100

$7.61

92055C

RING-O

92055-0101

$7.61

92145

SPRING,REAR SHOCK,K=51N/MM,SIL

92145-0463-8V

$256.53

92145A

SPRING,REAR SHOCK,K=47N/MM,SIL

92145-0464-8V

$256.53

92145B

SPRING,REAR SHOCK,K=49N/MM,SIL

92145-0465-8V

$256.53

92145C

SPRING,REAR SHOCK,K=53N/MM,SIL

92145-0466-8V

$256.53

92153

BOLT,PLUG

92153-1702

$132.43

92161

DAMPER,STOPPER

92161-0329

$20.63

92210

NUT,PISTON

92210-0270

$4.14

92210A

NUT,SPRING ADJUSTER

92210-0271

$39.64

92210B

NUT,SPRING ADJUST NUT

92210-0272

$33.04
