2008 Kawasaki KX™250F Rear Master Cylinder Diagram

← All diagrams

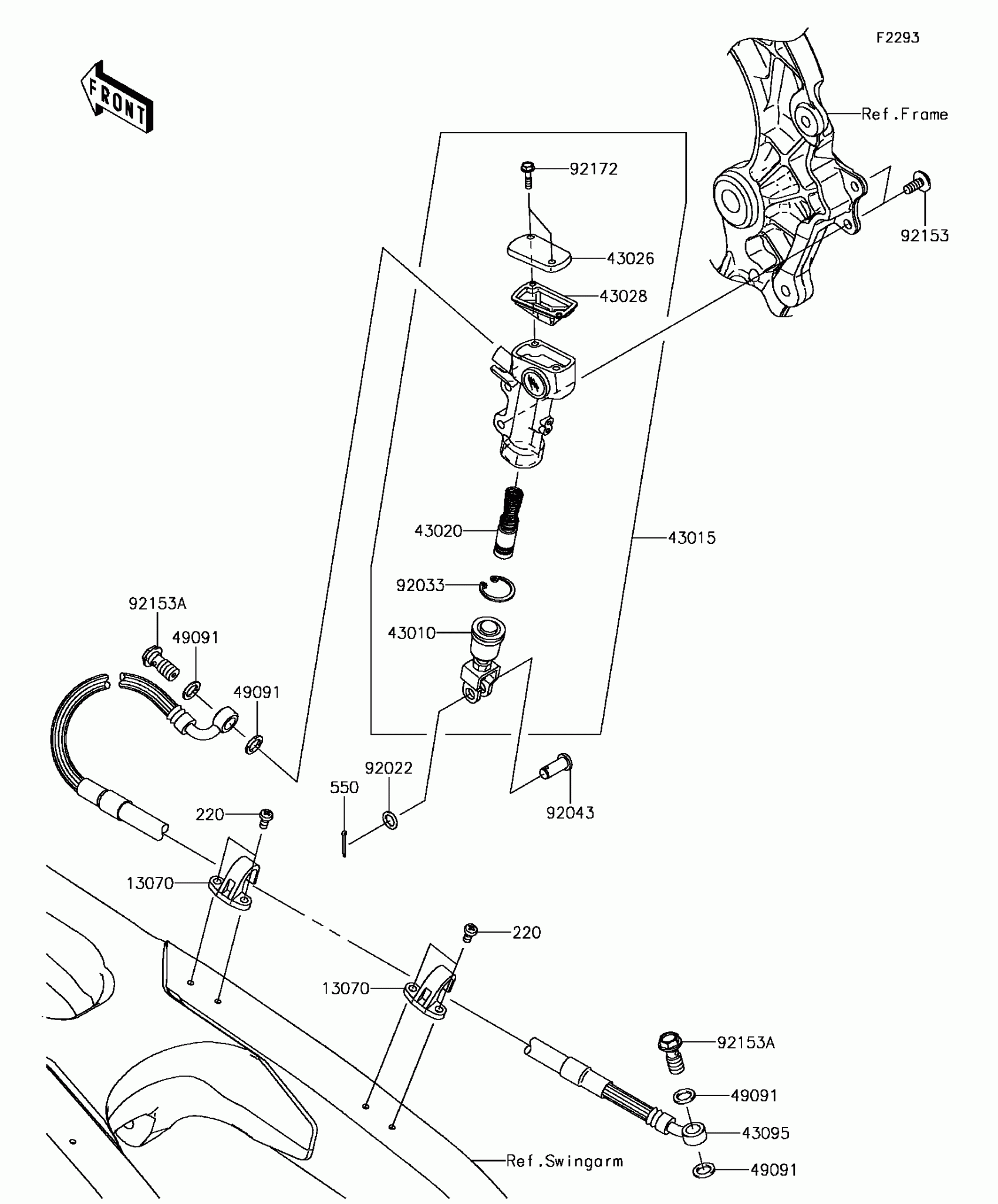

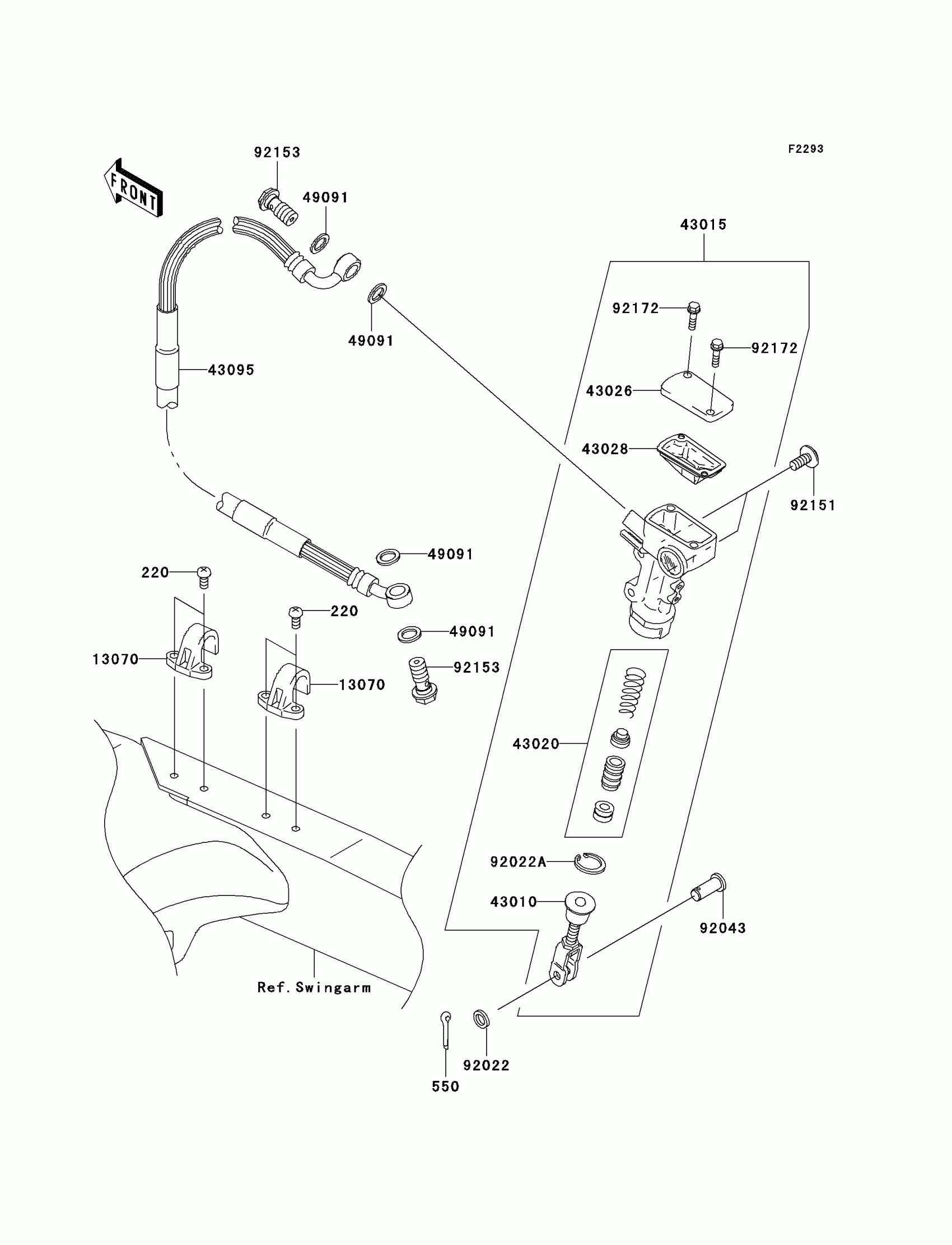

Find the part on the Rear Master Cylinder diagram for your 2008 Kawasaki KX™250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Kawasaki KX™250F Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

13070

GUIDE,BRAKE HOSE

13070-0048

1

$6.17

In stock

43010

ROD-ASSY-BRAKE

43010-1087

1

$55.97

In stock

43015

1

$341.75

In stock

43020

PISTON-COMP-BRAKE

43020-1094

1

$59.90

In stock

43026

CAP-BRAKE

43026-1086

1

$14.76

In stock

43028

DIAPHRAGM

43028-1092

1

$19.23

In stock

43095

HOSE-BRAKE,RR

43095-0187

1
Out of stock

49091

1

$1.81

In stock

92022

WASHER,8.5X13X1

92022-1028

1

$3.12

In stock

92022A

WASHER,CIRCRIP

92022-1601

1
Out of stock

92043

PIN

92043-0004

1

$8.85

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92172

SCREW

92172-1064

1

$1.60

In stock
