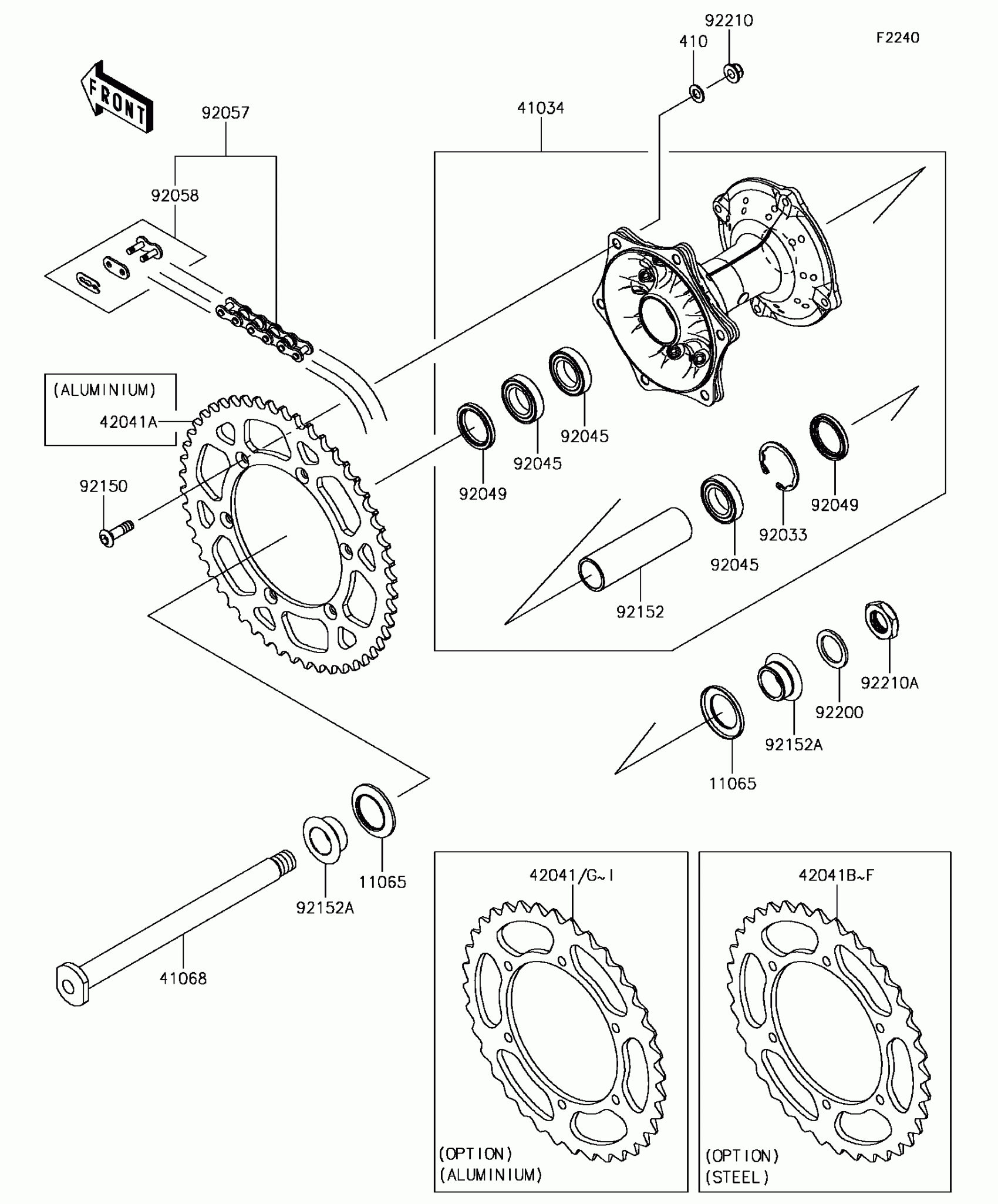

Kawasaki KX™250F Rear Hub Diagram

#

Description
Price

410

WASHER PLAIN 8MM

410B0800

Unavailable

550

PIN-COTTER,3.0X35

550D3035

$1.98

11065

CAP,AXLE

11065-1253

$5.79

41034

DRUM-ASSY,REAR BRAKE,M.M.GOLD

41034-0035-10Y

$506.02

41068

AXLE,RR

41068-1466

$95.30

42041

SPROCKET-HUB,46T

42041-1381

$75.39

42041A

SPROCKET-HUB,47T

42041-1382

Unavailable

42041B

SPROCKET-HUB,48T,STEEL

42041-1383

$75.39

42041C

SPROCKET-HUB,49T,STEEL

42041-1384

$75.39

42041D

SPROCKET-HUB,50T,STEEL

42041-1408

$72.32

42041E

SPROCKET-HUB,47T,AL

42041-1447

$151.47

42041F

SPROCKET-HUB,48T,AL

42041-1448

$141.34

42041G

SPROCKET-HUB,49T,AL

42041-1449

$141.34

42041H

SPROCKET-HUB,50T,AL

42041-1450

$141.34

42041I

SPROCKET-HUB,46T,AL

42041-1501

$140.51

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,69052RS

92045-1446

$34.07

92049

SEAL-OIL

92049-1614

$13.97

92057

CHAIN,DRIVE,DID520DMA2SDHX112L

92057-1540

Unavailable

92058

JOINT-CHAIN,DRIVE

92058-1074

$9.11

92150

BOLT,SOCKET,8X28

92150-1978

$6.55

92152

COLLAR,REAR BRAKE DRUM,L=106.5

92152-1427

$30.86

92152A

COLLAR,RR AXLE,L=17

92152-1473

$22.27

92200

WASHER,22.5X35X2.3

92200-1623

$1.17

92210

NUT,FLANGED,LOCK,8MM

92210-0159

$9.08

92210A

NUT,CASTLE,22MM

92210-1411

$11.20
