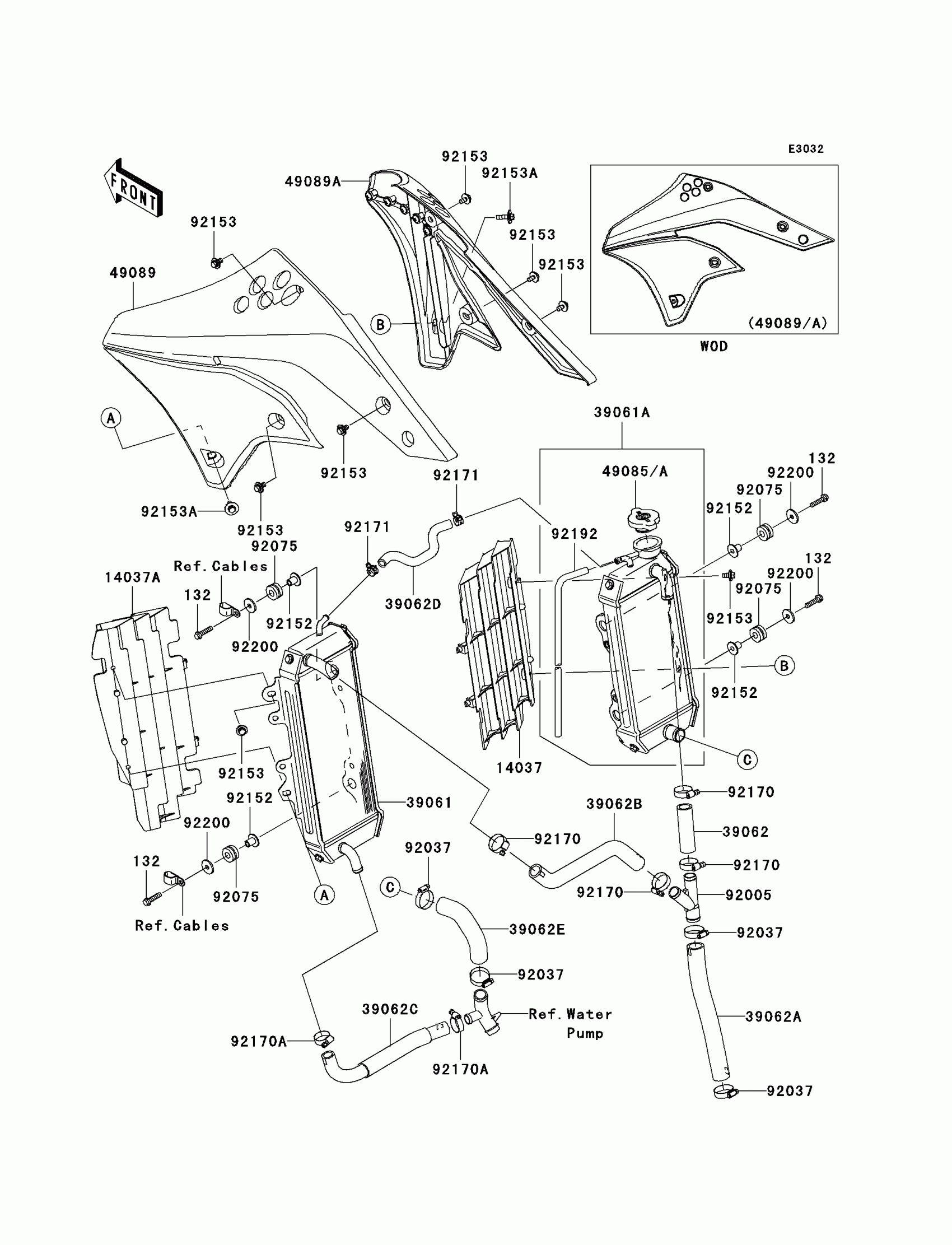

Kawasaki KX™250F Radiator Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X25

132L0625

Unavailable

14037

SCREEN,RH,WHITE

14037-0058-RZ

$29.43

14037A

SCREEN,LH,WHITE

14037-0063-RZ

$29.43

39061

RADIATOR-ASSY,LH

39061-0054

Unavailable

39061A

RADIATOR-ASSY,RH

39061-0074

$469.53

39062

HOSE-COOLING,FIT.-RAD. RH UPP

39062-0085

$9.56

39062A

HOSE-COOLING,HEAD-FIT

39062-0126

$34.82

39062B

HOSE-COOLING,RAD LH-FIT

39062-0127

$32.61

39062C

HOSE-COOLING,RAD LH-W/P

39062-0129

$46.07

39062D

HOSE-COOLING,RAD LH-RAD RH

39062-0130

$23.47

39062E

HOSE-COOLING,RAD RH-W/P

39062-0153

$19.53

49085

CAP-ASSY-PRESSURE,P1.1

49085-1070

$44.67

49085A

CAP-ASSY-PRESSURE,P1.6

49085-1073

$51.50

49089

SHROUD-ENGINE,LH,L.GREEN

49089-0036-290

$85.97

49089A

SHROUD-ENGINE,RH,L.GREEN

49089-0037-290

$85.97

92005

FITTING

92005-0065

Unavailable

92037

CLAMP,COOLING HOSE

92037-1589

$14.01

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92152

COLLAR,6.3X9.5(20)X14.2

92152-0379

Unavailable

92153

BOLT,6X12

92153-0503

$1.98

92153A

BOLT,6X20

92153-0864

$5.67

92170

CLAMP,HOSE,26MM

92170-1077

$6.37

92170A

CLAMP

92170-1283

$10.33

92171

CLAMP,CLIP,12.5MM

92171-0372

$2.71

92192

TUBE,6X9X640

92192-0167

$11.53

92200

WASHER,6.5X22X2.3

92200-0271

$2.71
