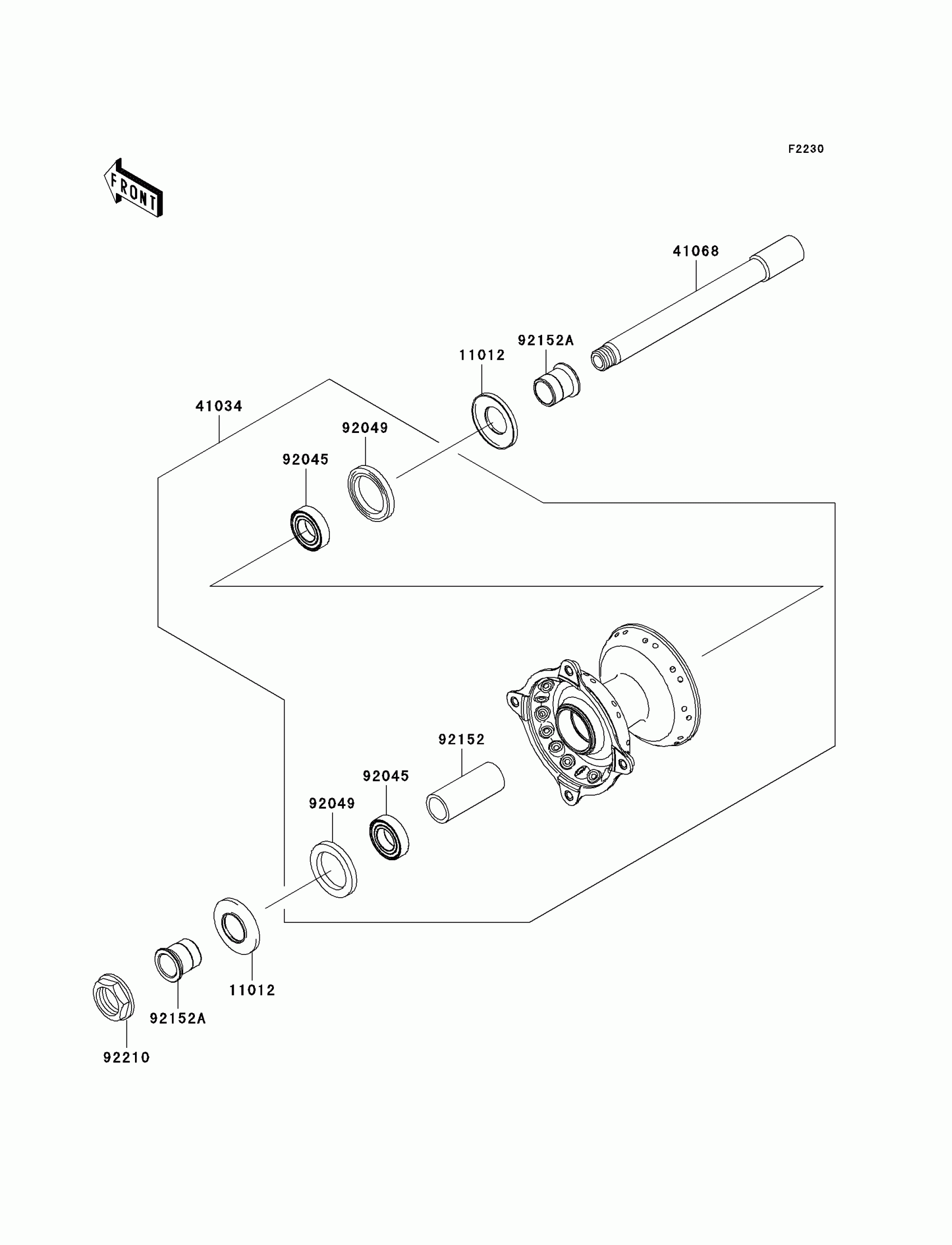

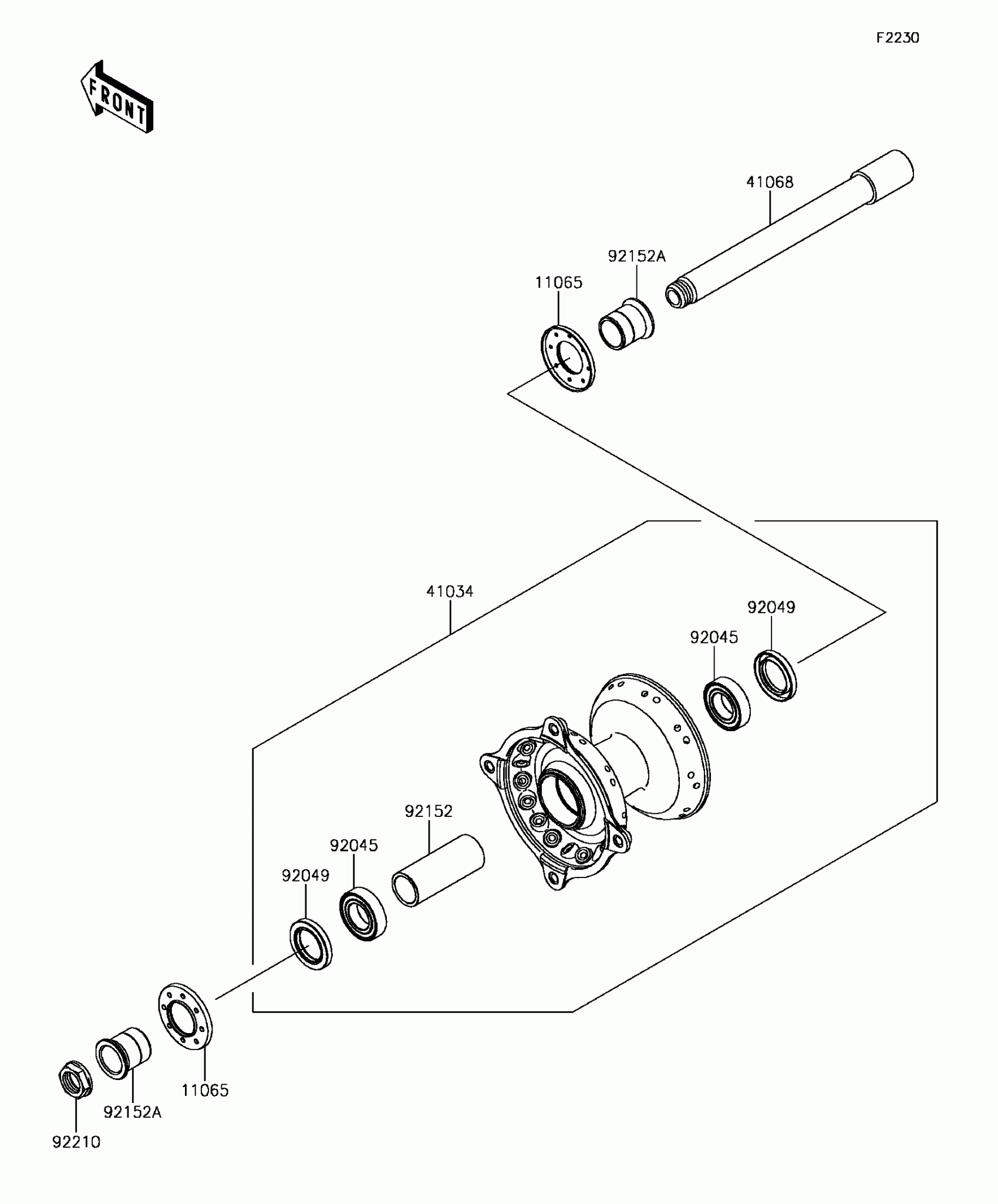

Kawasaki KX™250F Front Hub Diagram

#

Description
Price

11012

CAP,AXLE

11012-1581

$4.88

41034

DRUM-ASSY,FRONT BRAKE,M.M.GOLD

41034-0037-10Y

$320.39

41068

AXLE,FR

41068-0004

$68.46

92045

BEARING-BALL,69042RS

92045-1284

$26.04

92049

SEAL-OIL,BJNC-2 25X37X5

92049-1403

$15.97

92152

COLLAR,FRONT BRAKE DRUM,L=65

92152-0028

$23.56

92152A

COLLAR,FR AXLE,L=27.5

92152-0324

$23.07

92210

NUT,18MM

92210-0065

$7.73
