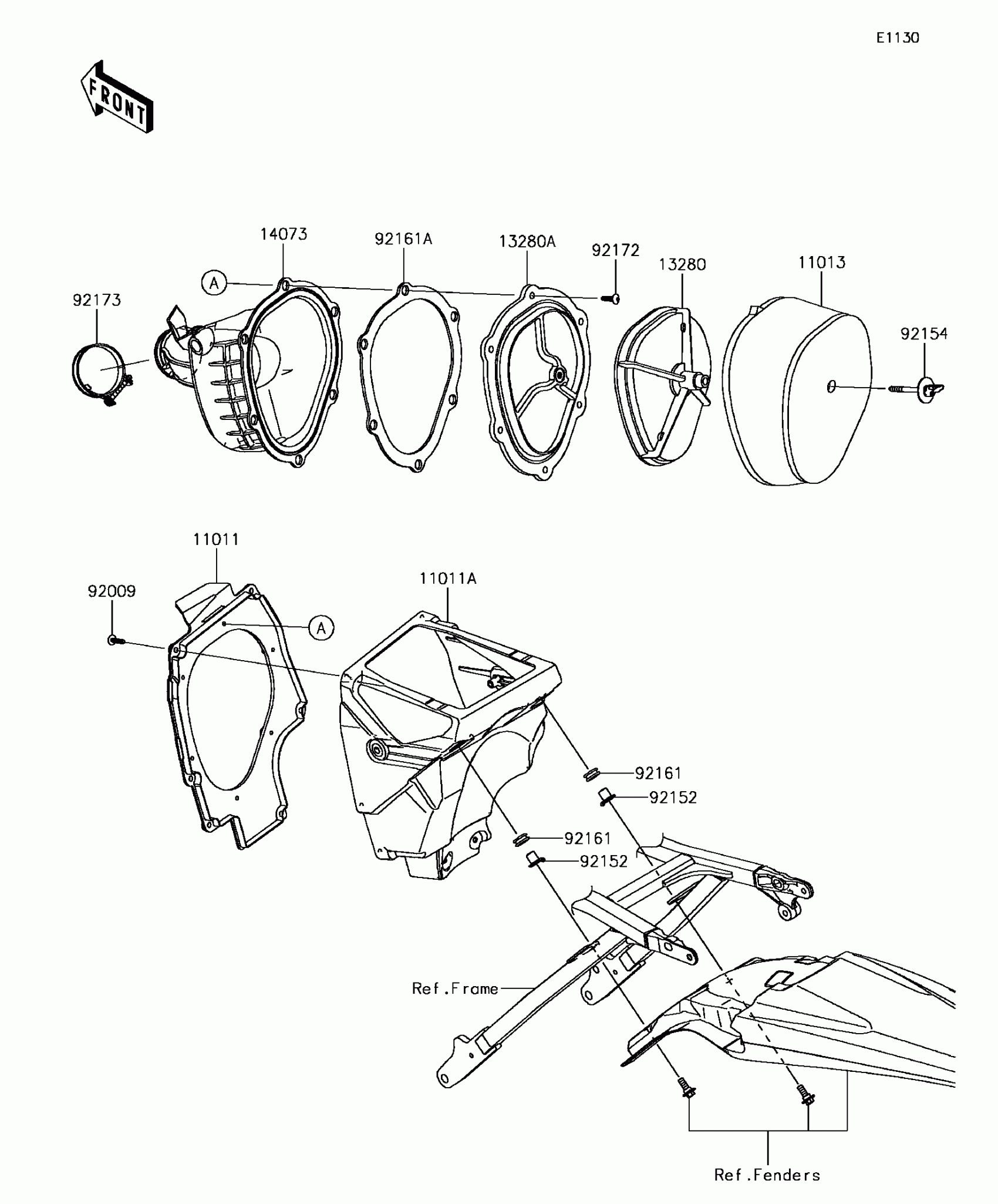

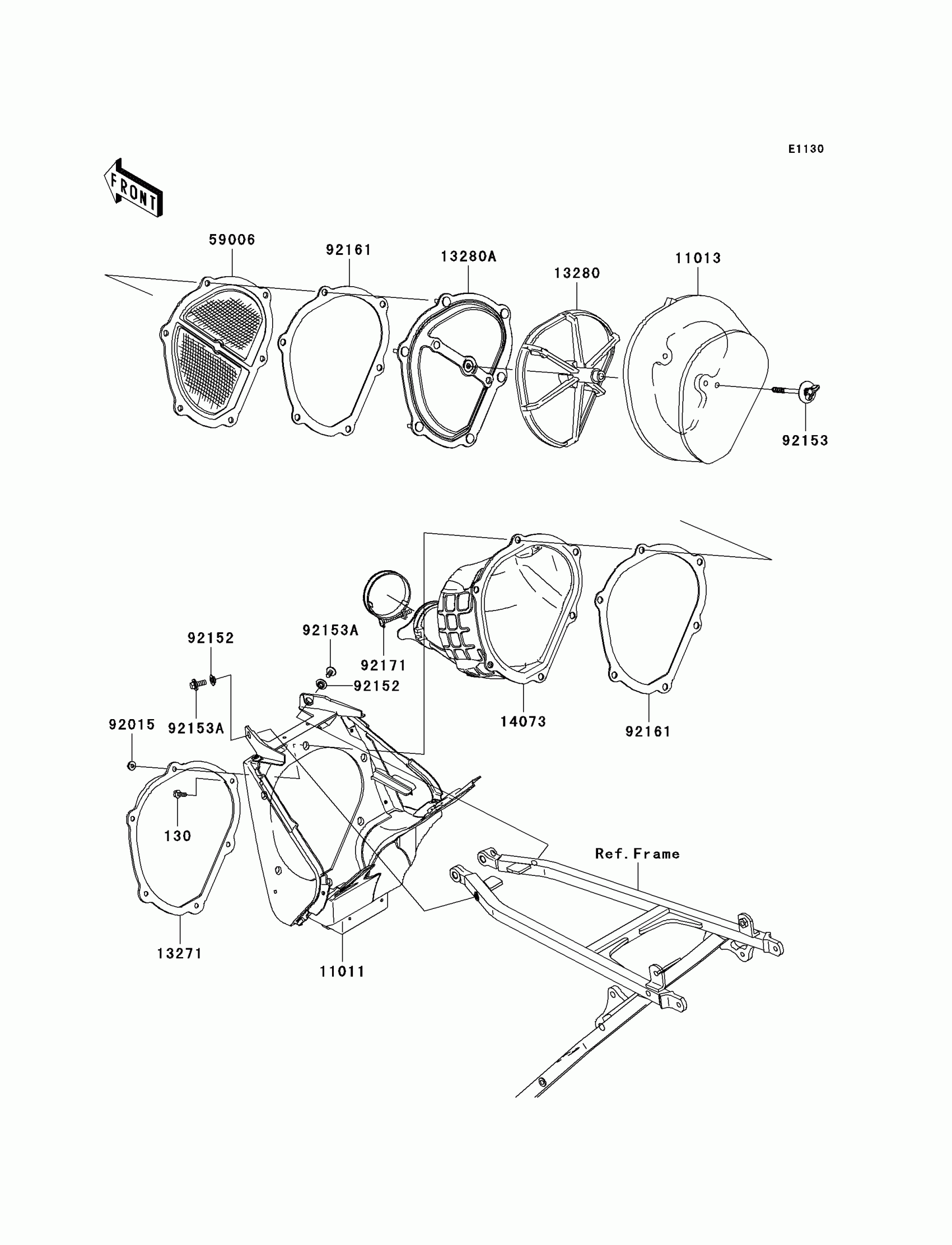

Kawasaki KX™250F Air Cleaner Diagram

Description

Price

130

BOLT-FLANGED,5X12

130G0512

Unavailable

11011

CASE-AIR FILTER,F.BLACK

11011-0055-6Z

Unavailable

11013

ELEMENT-AIR FILTER

11013-0011

$49.07

13271

PLATE,DUCT FITTING

13271-0730

$23.69

13280

HOLDER,ELEMENT

13280-0108

Unavailable

13280A

HOLDER

13280-0170

$62.58

14073

DUCT,FUNNEL

14073-0139

$59.66

59006

ARRESTER-FLAME

59006-0011

$62.32

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92152

COLLAR

92152-0275

$2.42

92153

BOLT,6X75

92153-0623

$7.09

92153A

BOLT,6X16

92153-0863

$1.57

92161

DAMPER

92161-0213

$31.35

92171

CLAMP,DUCT,62MM

92171-0651

$10.34
