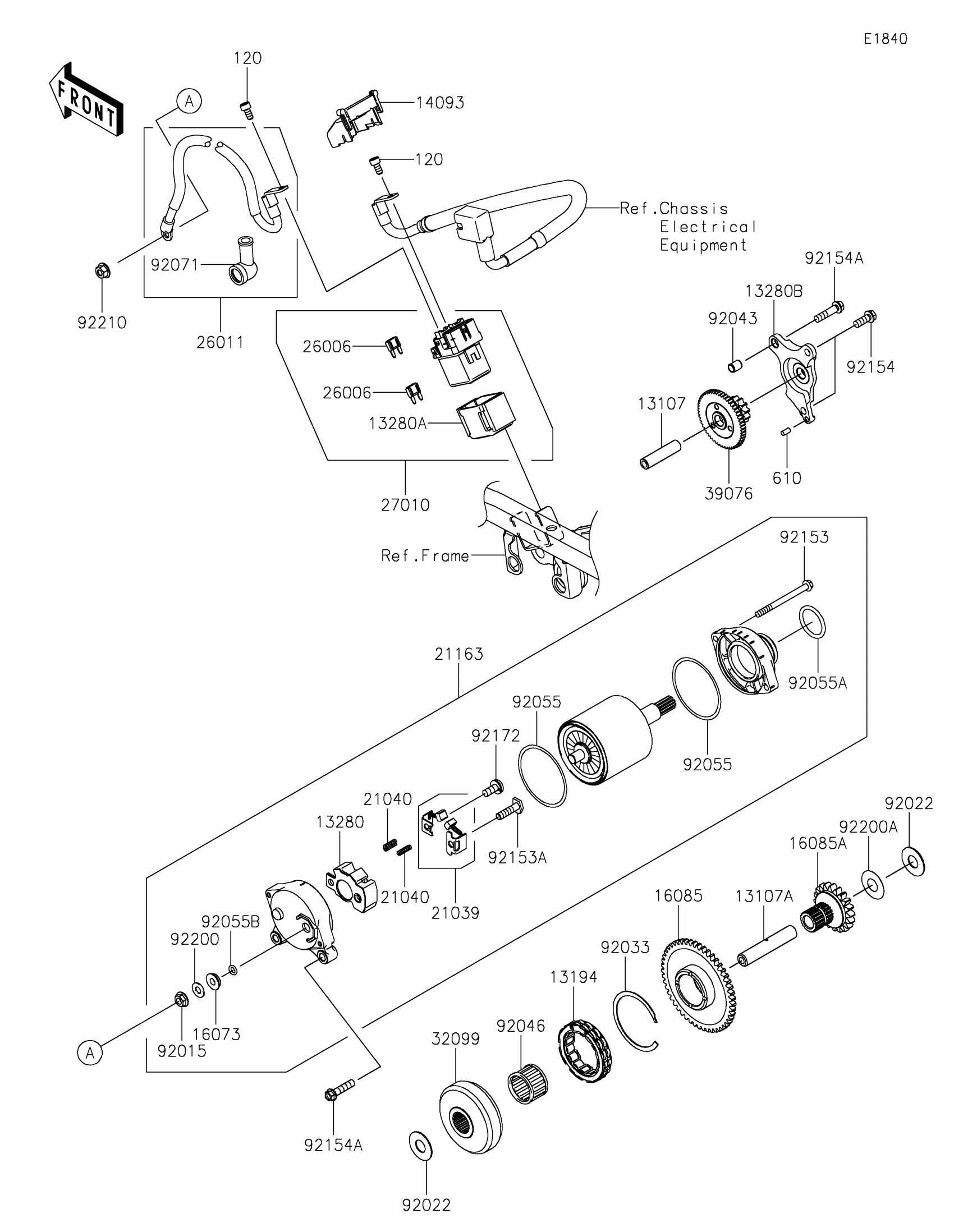

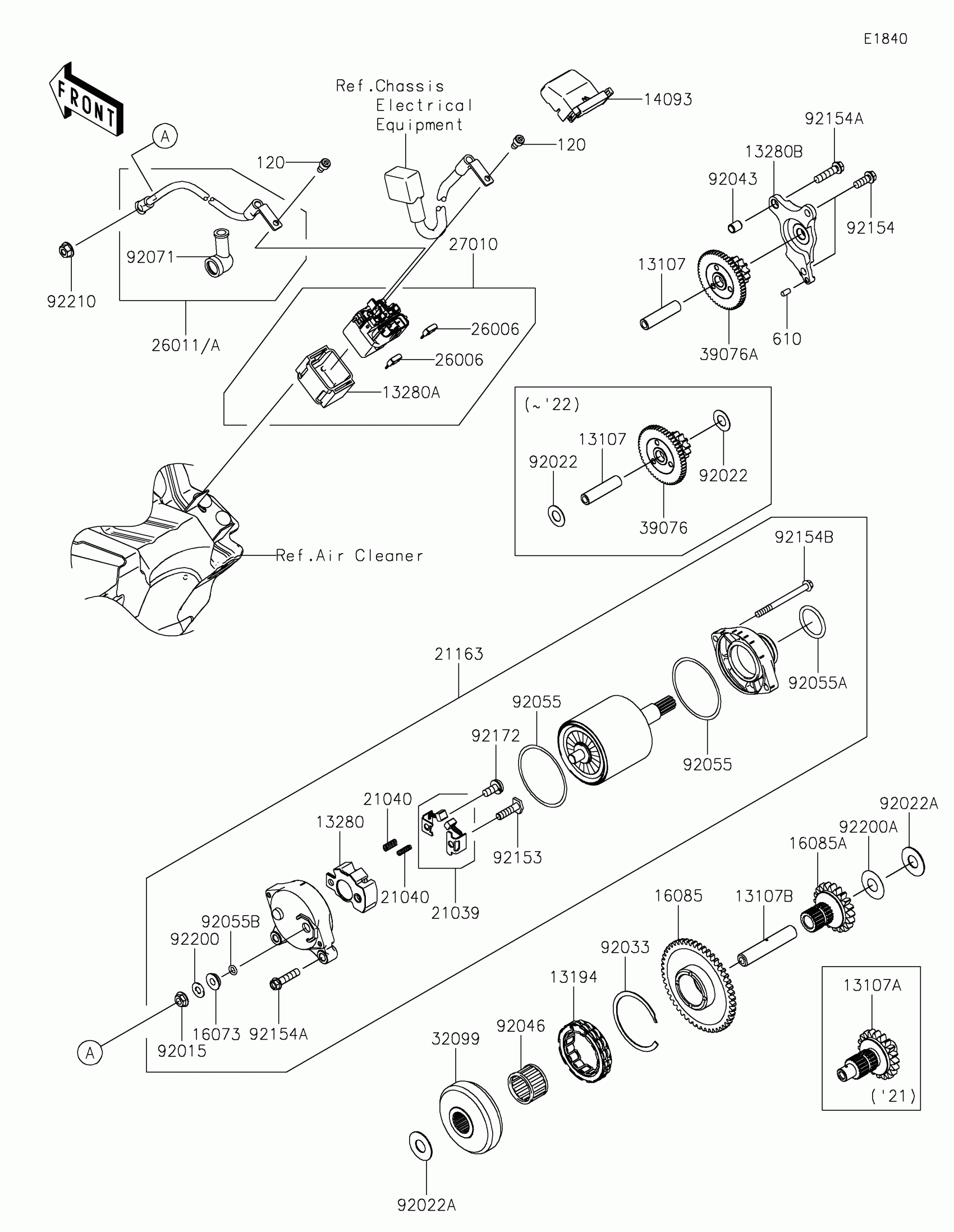

Kawasaki KX™250 Starter Motor Diagram

#

Description
Price

13107

SHAFT,IDLER

13107-0917

$8.53

13107B

SHAFT

13107-0946

$18.66

13194

CLUTCH-ONEWAY

13194-3705

$99.49

13280

HOLDER

13280-0261

$15.78

13280A

HOLDER,MAGNETIC SWITCH

13280-0814

$11.37

13280B

HOLDER,LIMITER

13280-0993

$56.57

14093

COVER,MAGNETIC SWITCH

14093-0716

$9.22

16073

INSULATOR

16073-0053

$11.42

16085

GEAR,49T

16085-0703

$116.54

16085A

GEAR,20T

16085-0710

$126.98

21039

BRUSH,CARBON SET

21039-0005

$69.54

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0789

$637.09

26006

FUSE,10A

26006-0033

$5.34

26011

WIRE-LEAD

26011-1918

$59.78

26011A

WIRE-LEAD

26011-2427

$57.21

27010

SWITCH,MAGNETIC

27010-0879

$111.05

32099

CASE

32099-0812

$129.48

39076

LIMITER

39076-0042

$191.31

39076A

LIMITER

39076-0045

$178.47

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,10.2X20X0.5

92022-1649

$3.29

92022A

WASHER,12X27.5X1.0

92022-1852

$4.51

92033

RING-SNAP

92033-3731

$5.37

92043

PIN,DOWEL,8X10

92043-1302

$0.84

92046

BEARING-NEEDLE,RS263020

92046-0004

$22.86

92055

RING-O

92055-0136

$5.91

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92071

GROMMET

92071-0024

$9.86

92153

BOLT

92153-1866

$4.14

92154

BOLT,FLANGED,6X16

92154-2965

$0.88

92154A

BOLT,FLANGED,6X25

92154-2967

$0.76

92154B

BOLT

92154-3958

$5.56

92172

SCREW

92172-0334

$4.14

92200

WASHER

92200-0386

$4.14

92200A

WASHER,12.2X27.5X0.2

92200-2432

$7.64

92210

NUT,6MM

92210-0188

$1.81

120

BOLT-SOCKET,5X10

120CB0510

$1.23

610

ROLLER,4X8

610A0408

$3.29
