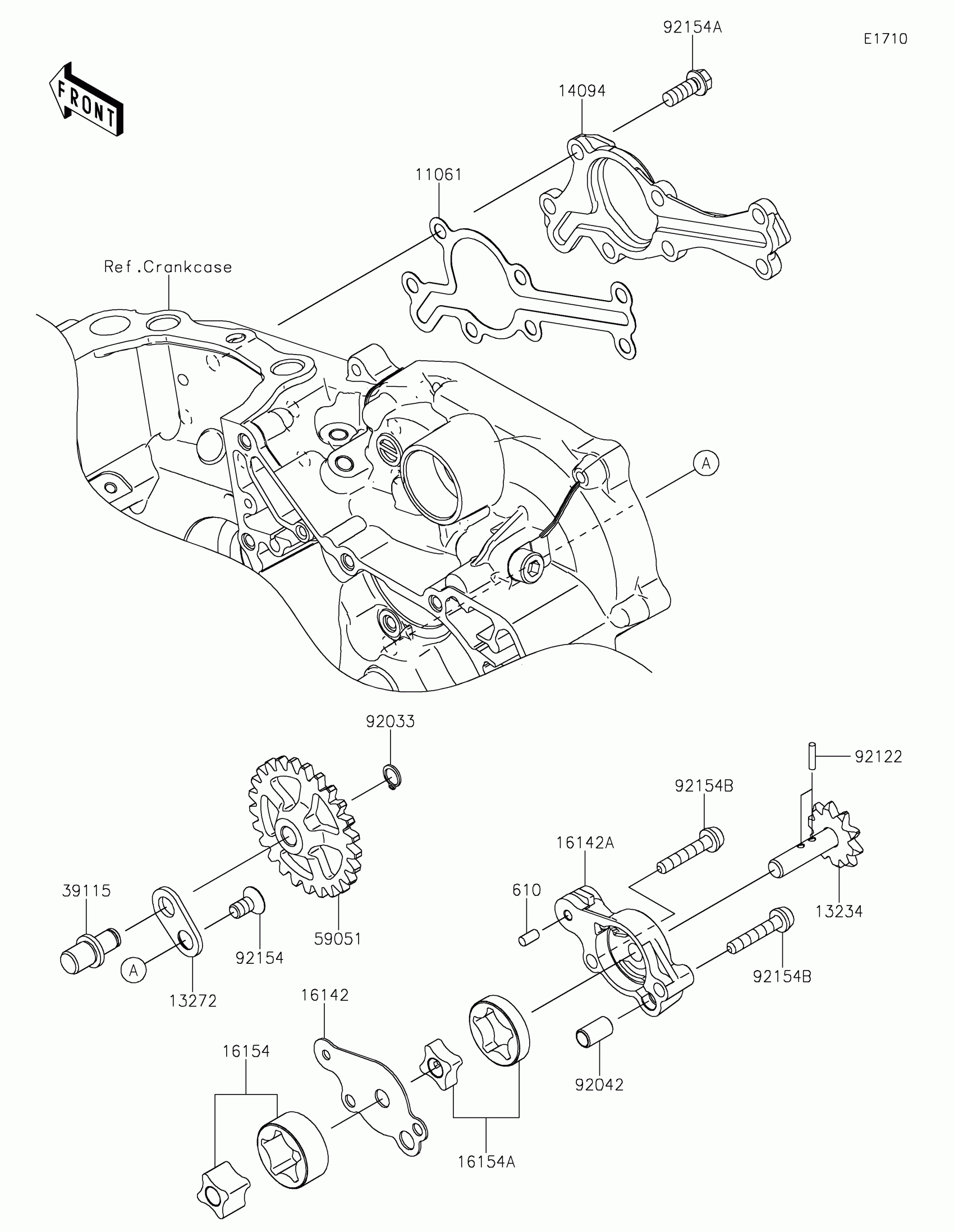

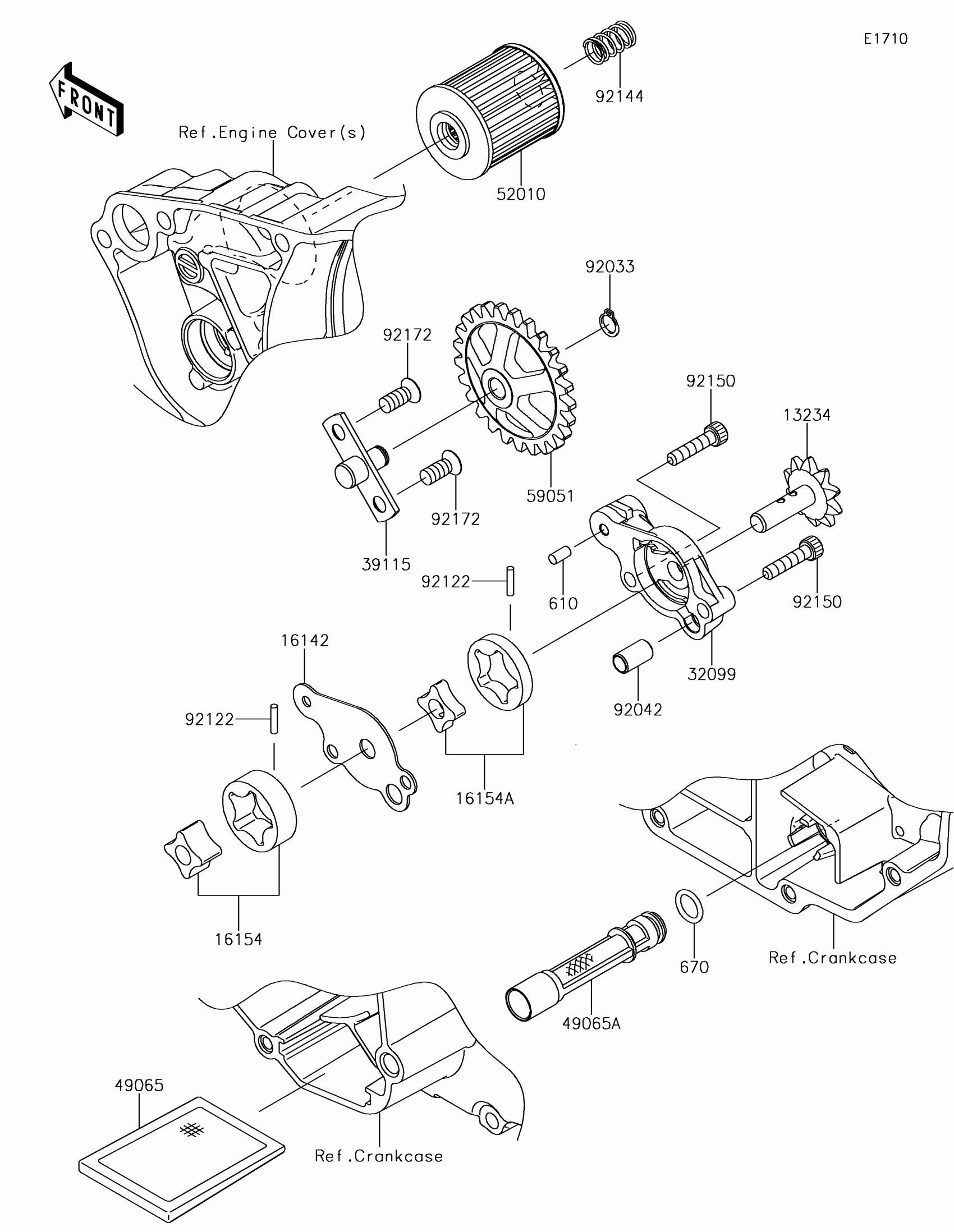

Kawasaki KX™250 Oil Pump Diagram

#

Description
Price

13234

SHAFT-COMP,OIL PUMP

13234-0045

$81.61

16142

COVER-PUMP

16142-0003

$5.86

16154

ROTOR-PUMP,SCAVENGE

16154-0090

$36.68

16154A

ROTOR-PUMP,FEED

16154-0093

$36.68

32099

CASE,OIL PUMP

32099-0051

$67.69

39115

SHAFT-IDLER,OIL PUMP

39115-0007

$24.10

49065

FILTER-OIL

49065-0023

$16.80

49065A

FILTER-OIL

49065-0043

$12.81

52010

ELEMENT-OIL FILTER

52010-0001

$9.16

59051

GEAR-SPUR,PUMP IDLER

59051-0009

$66.21

610

ROLLER,4X8

610A0408

$3.29

670

O RING,10MM

670D1510

$3.57

92033

RING-SNAP,8MM

92033-1039

$3.25

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92122

ROLLER,2.5X11.8

92122-0021

$1.85

92144

SPRING

92144-1761

$3.54

92150

BOLT,SOCKET,5X22

92150-1491

$3.03

92172

SCREW,6X14

92172-0087

$1.73
