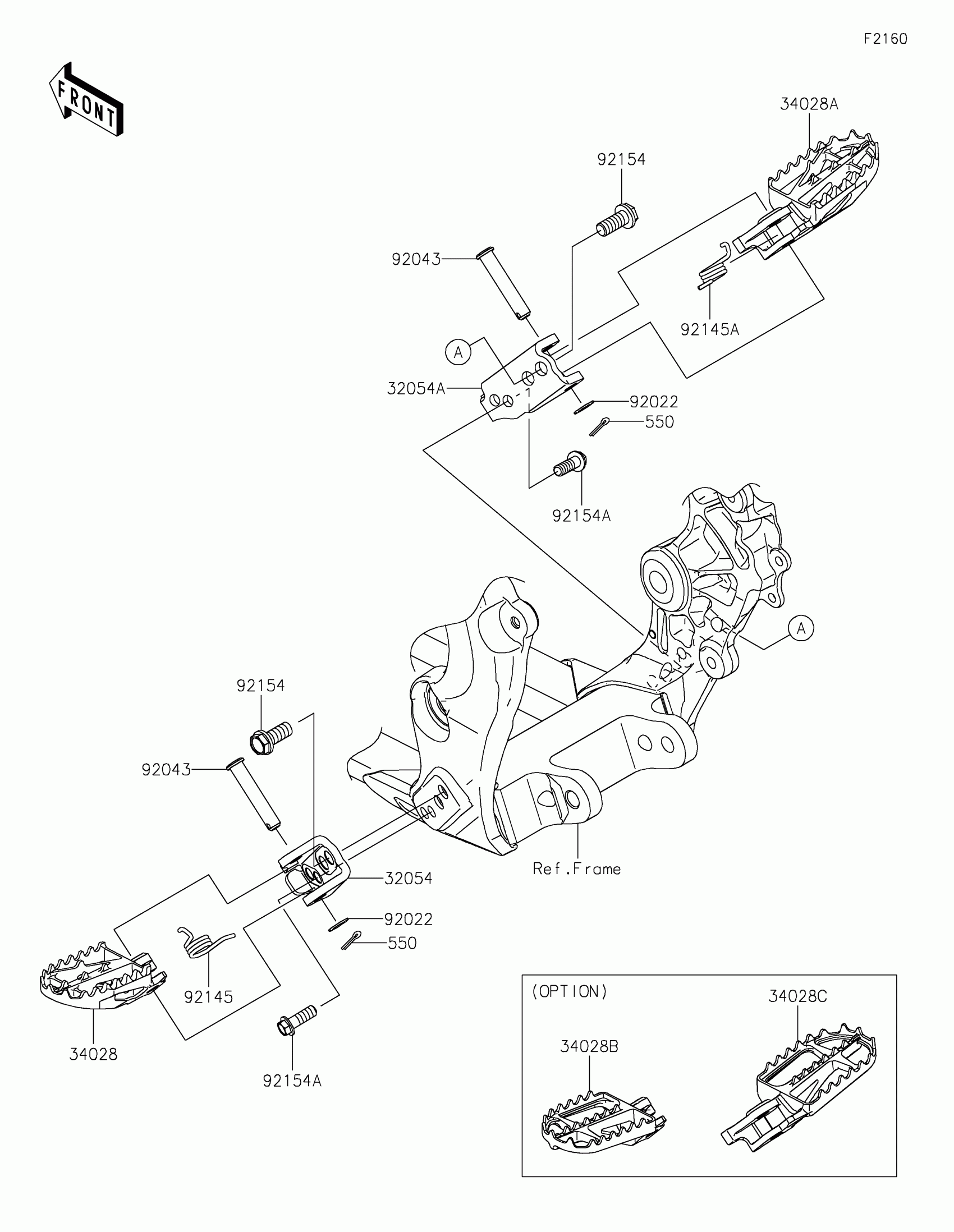

Kawasaki KX™250 Footrests(CMFNN/CNFNN) Diagram

Description

Price

32054

BRACKET-STEP,LH

32054-0054

$26.69

32054A

BRACKET-STEP,RH

32054-0055

$30.19

34028

STEP,LH

34028-0104

$68.48

34028A

STEP,RH

34028-0105

$68.48

34028B

STEP,WIDE,LH

34028-0360

$68.48

34028C

STEP,WIDE,RH

34028-0361

$68.48

92022

WASHER,10.2X16X1

92022-1829

$3.43

92043

PIN,10X42.5

92043-0074

$8.23

92145

SPRING,STEP,LH

92145-0819

$4.42

92145A

SPRING,STEP,RH

92145-0820

$4.42

92154

BOLT,FLANGED,10X23

92154-0545

$4.46

92154A

BOLT,8X23,MEC

92154-2987

$2.41

550

PIN-COTTER,3.0X20

550S3020

$2.92
