2009 Kawasaki KX™100 Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2009 Kawasaki KX™100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

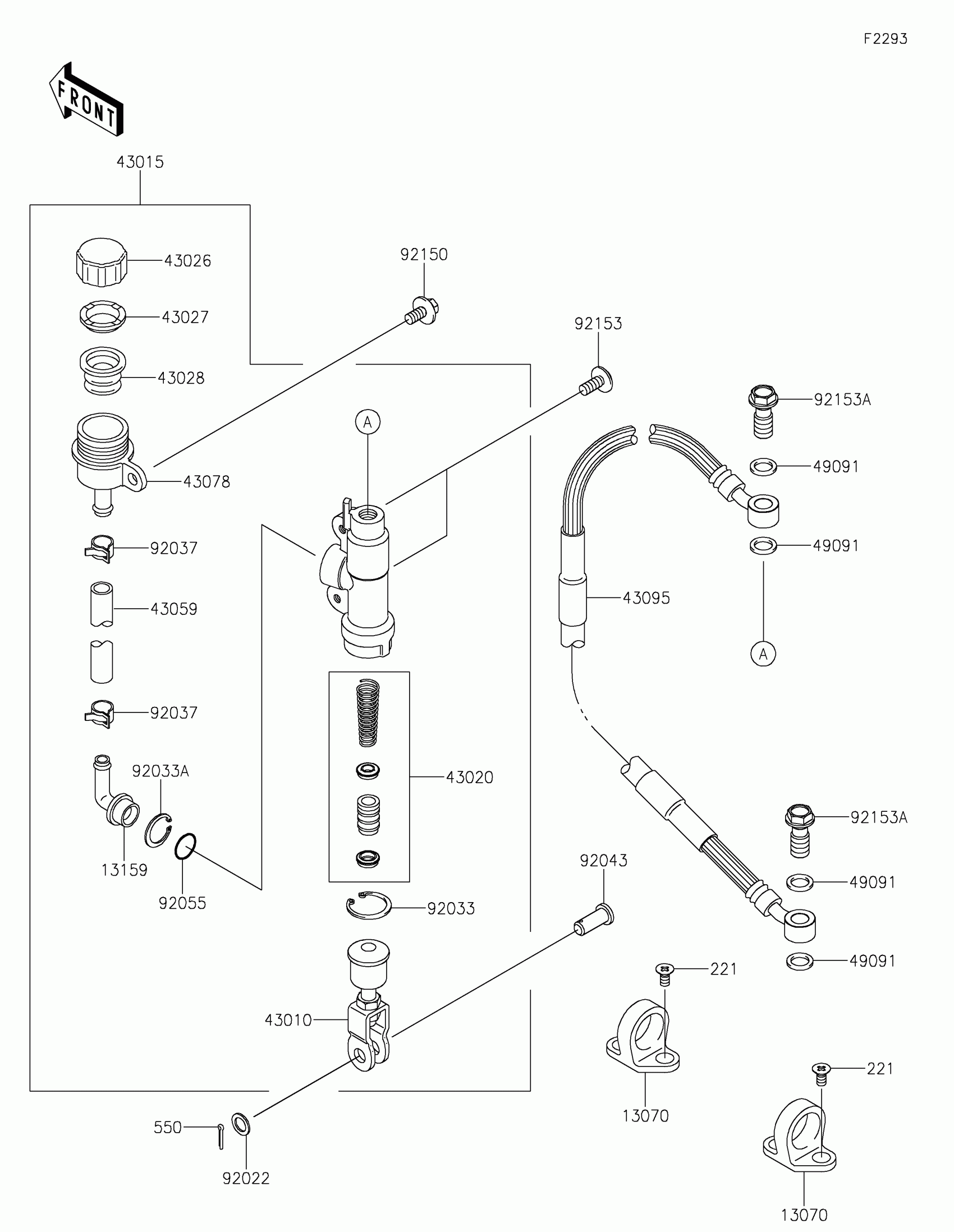

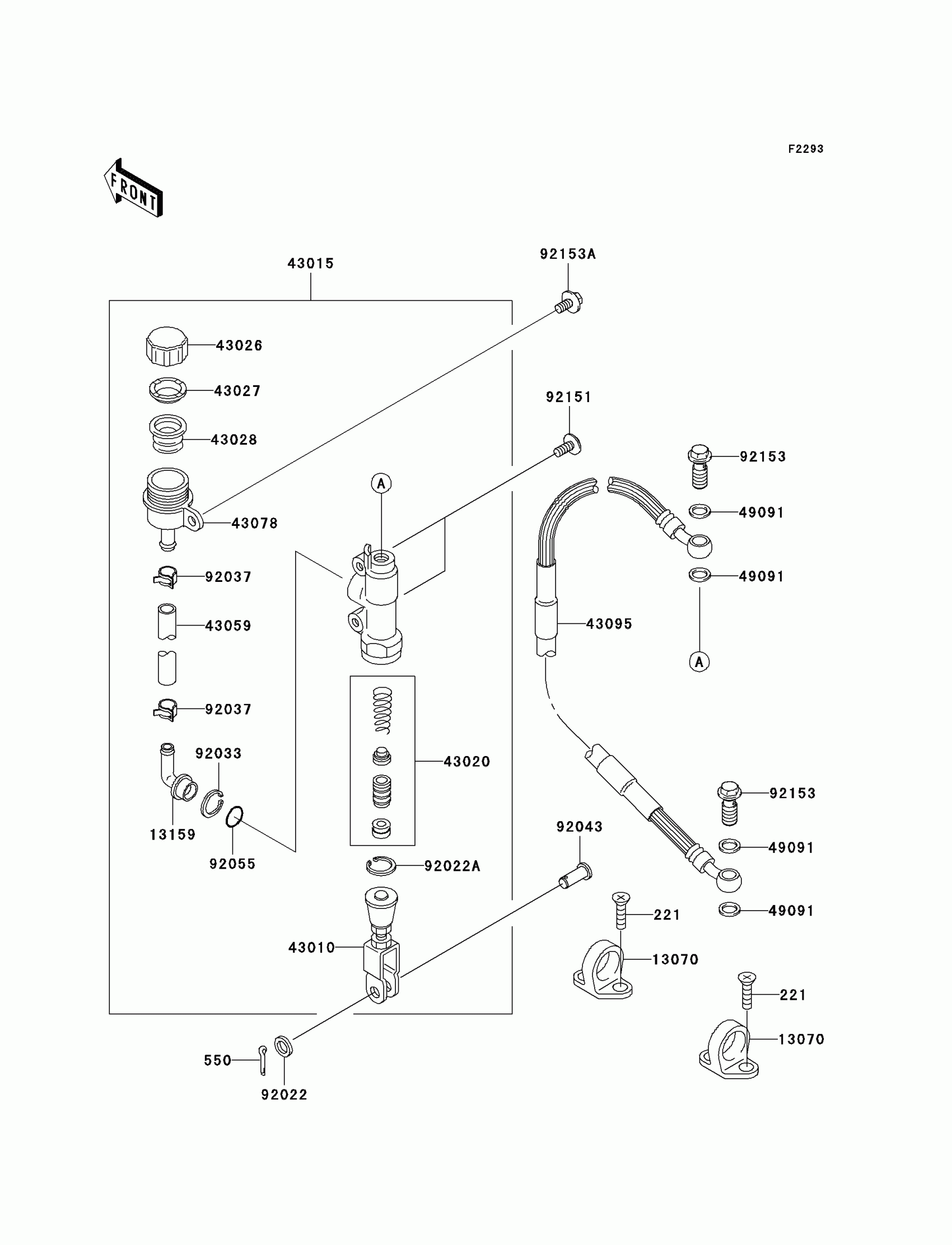

2009 Kawasaki KX™100 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

221

SCREW-CSK-CROS,5X10

221AA0510

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock

13070

GUIDE,HOSE

13070-1144

1
Out of stock

13159

CONNECTOR

13159-1056

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1079

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-1606

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1094

1
Out of stock

43026

CAP-BRAKE

43026-1058

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1052

1
Out of stock

43028

DIAPHRAGM

43028-1060

1
Out of stock

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1670

1
Out of stock

43078

RESERVOIR

43078-1068

1
Out of stock

43095

HOSE-BRAKE,RR,L=567

43095-1234

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92022

WASHER,8.5X13X1

92022-1028

1
Out of stock

92022A

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92037

CLAMP

92037-1710

1
Out of stock

92043

PIN

92043-0004

1
Out of stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,FLANGED,6X14

92153-0936

1
Out of stock
