2009 Kawasaki KX™100 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2009 Kawasaki KX™100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

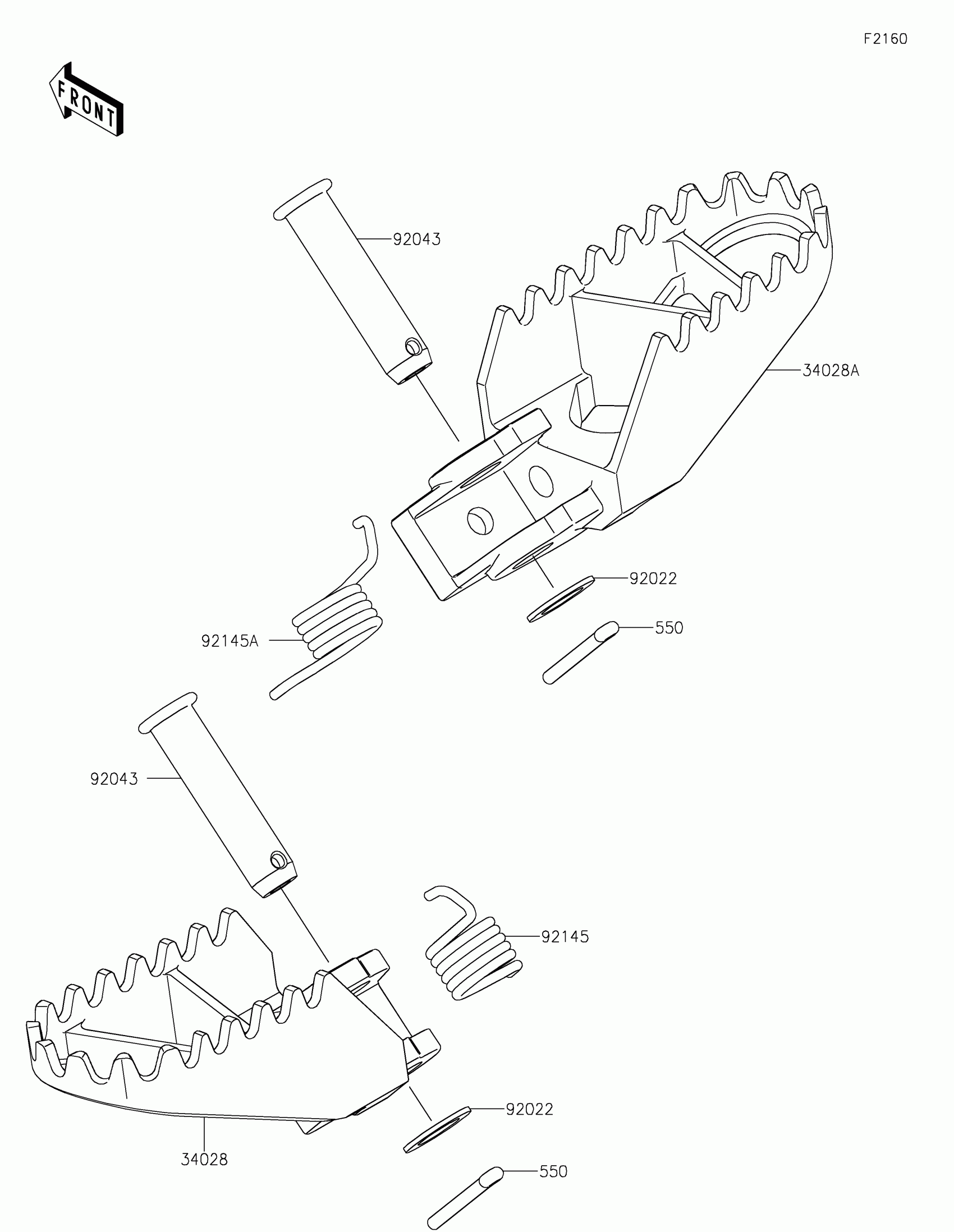

2009 Kawasaki KX™100 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

1

$2.92

In stock

34028

STEP,LH,SILVER

34028-1498-CE

1

$35.77

In stock

34028A

STEP,RH,SILVER

34028-1499-CE

1

$35.77

In stock

92022

WASHER,10.2X16X1

92022-1829

1
Out of stock

92043

PIN,10X37.5

92043-1643

1

$5.59

In stock

92145

SPRING,STEP,LH

92145-1106

1

$3.94

In stock

92145A

SPRING,STEP,RH

92145-1107

1

$4.39

In stock
← Fenders Frame →

More Body & Frame diagrams
