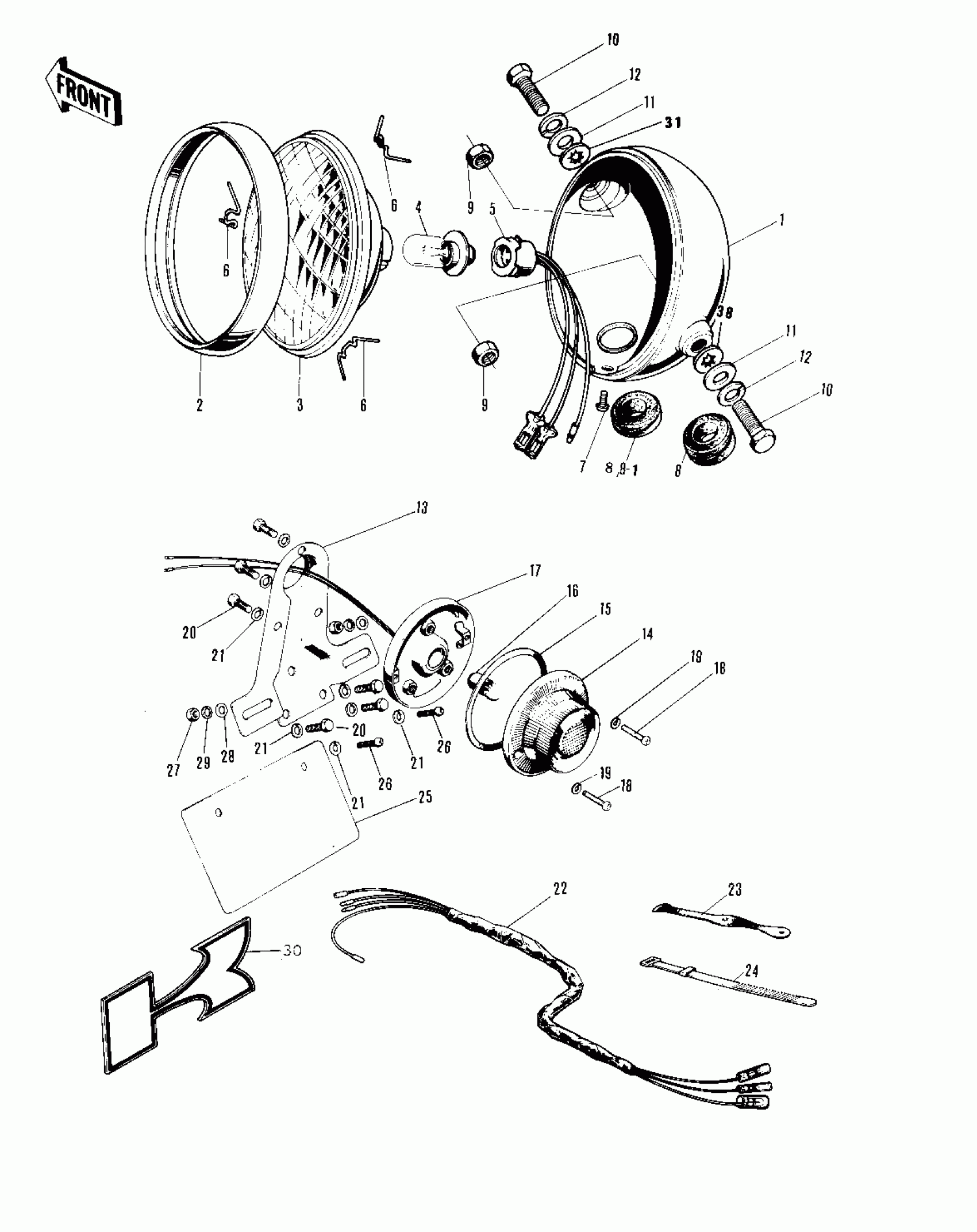

Find the part on the Headlight/taillight/chassis Electrical E diagram for your 1980 Kawasaki KV75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KV75 Headlight/taillight/chassis Electrical E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY,HD LIGHT,FL BLCK

23005-1006-21

1
Out of stock

1

BODY,HD LIGHT,FL BLCK

23005-1006-21

1
Out of stock

2 7

LAMP UNIT-HEAD

23004-023

1
Out of stock

2

RIM,HEAD LAMP

23006-043

1
Out of stock

3

LENS UNIT-HEAD LAMP

23007-010

1
Out of stock

4

BULB,6V 25/25W

92069-031

1
Out of stock

5

SOCKET HEAD LAMP

23008-009

1

$17.88

In stock

6

1

$4.76

In stock

6

1

$4.76

In stock

7

SCREW OVL CNTSNK 5X8

222E0508A

1
Out of stock

7

1

$0.51

In stock

8

GROMMET WIRING HARNES

23023-007

1
Out of stock

8-1

GROMMET

23023-011

1

$5.78

In stock

9

NUT 10MM

92016-027

1
Out of stock

10

BOLT-UPSET,10X20

112B1020

1
Out of stock

11

WASHER-PLAIN,10MM

411B1000

1
Out of stock

12

WASHER SPRING 10MM

461F1000

1
Out of stock

13

BKT-TAIL LAMP,BLACK

35028-005-10

1
Out of stock

14 19

LAMP ASSY-TAIL

23025-035

1
Out of stock

14

LENS-TAIL LAMP

23026-009

1
Out of stock

15

GASKET-TAIL LAMP LENS

23028-012

1
Out of stock

16

BULB 6V 10/3W

92069-020

1
Out of stock

17

SOCKET-TAIL LAMP

23027-025

1
Out of stock

18

SCREW-PAN HEAD,4X10

220E0410A

1
Out of stock

19

WASHER SPRING 4MM

461F0400

1
Out of stock

20

BOLT-UPSET,6X12

112G0612

1
Out of stock

21

1

$1.19

In stock

22

WIRING HARNESS,MAIN

26001-057

1
Out of stock

23

BAND RUBBER

92072-018

1
Out of stock

24

BAND,L=123

92072-030

1

$3.97

In stock

25

BRACKET-LICENCE PLATE

35027-006

1
Out of stock

26

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

27

NUT 6MM

311B0600

1
Out of stock

27

NUT 6MM

311B0600

1
Out of stock

28

1

$1.19

In stock

29

WASHER SPRING 6MM

461F0600

1
Out of stock

30

EMBLEM,LICNSE PLT BKT

56018-176

1
Out of stock

31

WASHER LOCK 10MM

463H1000

1

$0.69

In stock
