1980 Kawasaki KV75 Footrests/stand/cables Diagram

← All diagrams

Find the part on the Footrests/stand/cables diagram for your 1980 Kawasaki KV75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

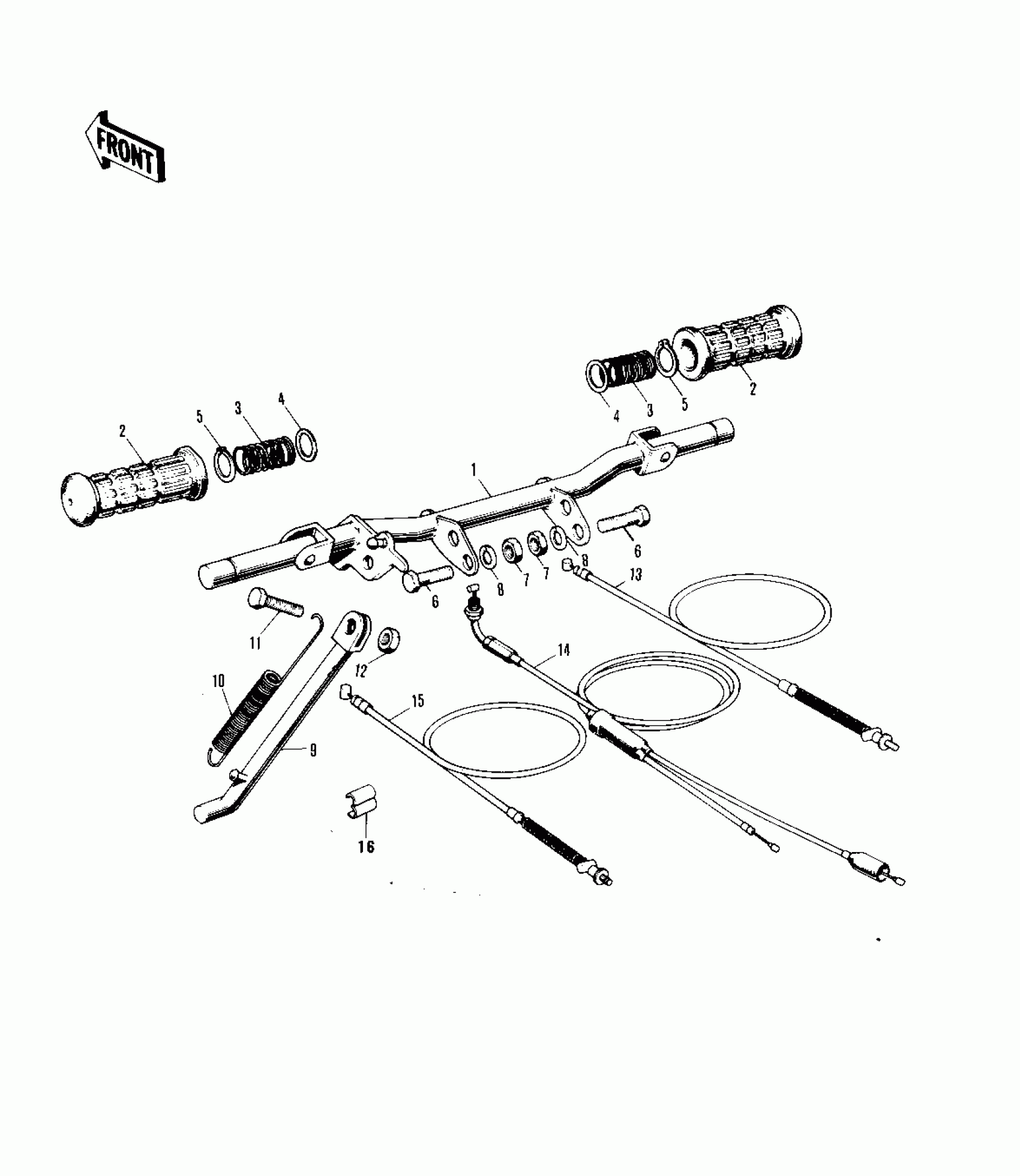

1980 Kawasaki KV75 Footrests/stand/cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR-FOOTREST

34002-029

1
Out of stock

2

RUBBER FOOTREST

92076-006

1
Out of stock

3

SPRING FOOTREST PEG

34006-002

1
Out of stock

4

WASHER FOLDING PEG

92022-049

1
Out of stock

5

CIRCLIP-TYPE-C,16MM

480J1600

1
Out of stock

6

BOLT,HEX HEAD,10X18

113G1018

1
Out of stock

7

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

8

WASHER SPRING 10MM

461F1000

1
Out of stock

9

STAND-SIDE

34024-050

1
Out of stock

10

SPRING MAIN STAND

34023-005

1
Out of stock

11

BOLT,HEX HEAD,10X25

113G1025

1
Out of stock

12

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

13

CABLE-FRONT BRAKE

54005-058

1
Out of stock

14

CABLE,THROTTLE

54012-129

1
Out of stock

14

CABLE,THROTTLE

54012-1015

1
Out of stock

15

CABLE-REAR BRAKE

54022-020

1
Out of stock

16

CLAMP-CABLE

92037-069

1
Out of stock
