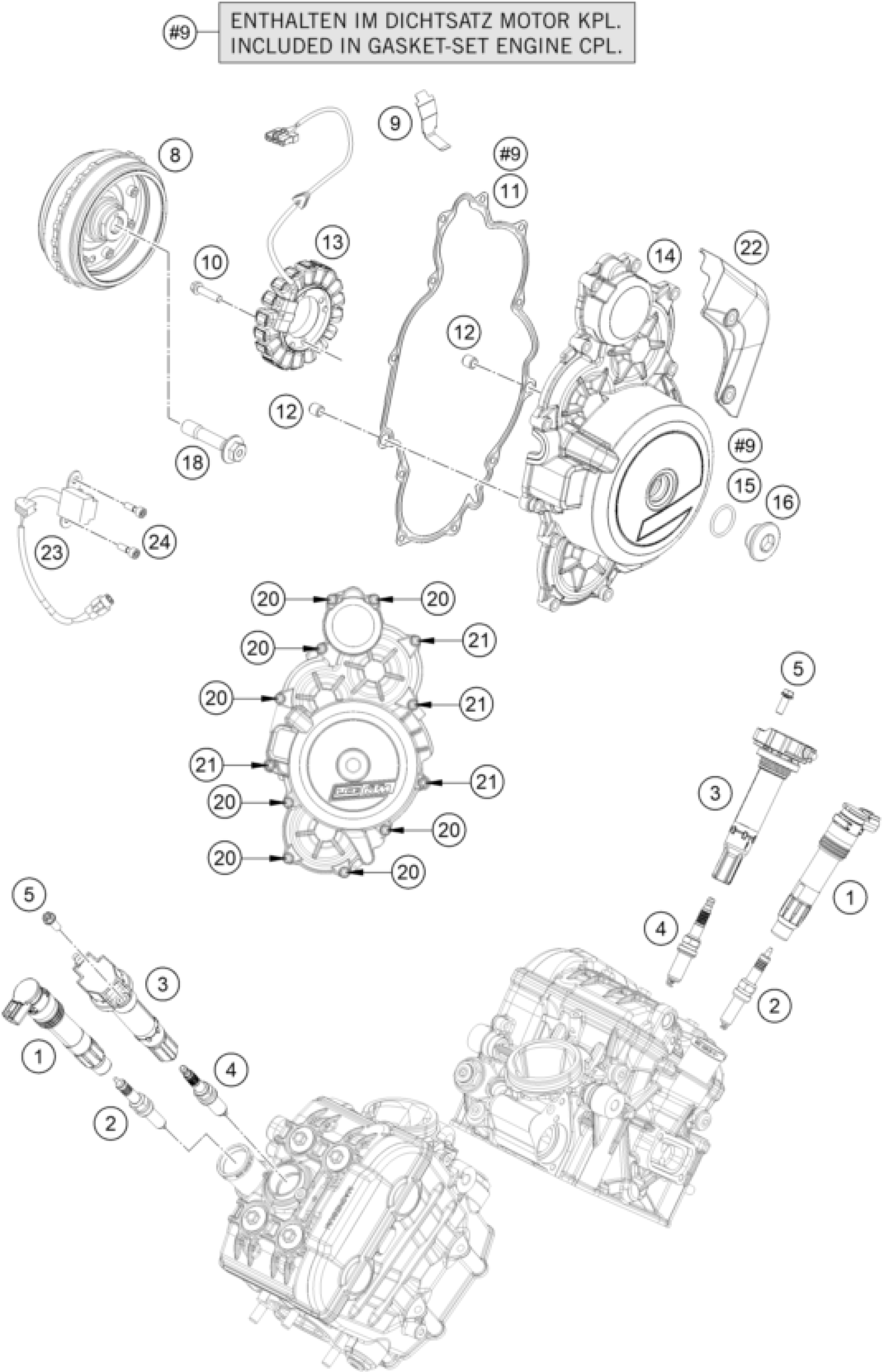

KTM KTMR2R 1290 SUPER DUKE R 2022 IGNITION SYSTEM Diagram

#

Description

Price

1

STICK COIL

76039006000

Unavailable

2

SPARK PLUG

60439094000

Unavailable

3

Stick coil

63539006100

Unavailable

4

Spark plug M12x1.25

61739093000

Unavailable

5

HH collar screw M6x16 TX30

0025060166

Unavailable

8

Rotor complete

61539005000

Unavailable

9

generator line bracket

60039040020

Unavailable

10

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

Unavailable

11

GASKET GENERATORCOVER

61230040100

Unavailable

12

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

13

STATOR

60339004000

Unavailable

14

generator cover cpl.

6193010204441

Unavailable

15

o-ring 24.00x2.50 Viton

07700240251

Unavailable

16

threaded plug M24x1.5 PA 6.6

6003009400030

Unavailable

18

special screw M12x1.5 WS15

60339003000

Unavailable

20

HH collar screw M6x30 TX30

0025060306

Unavailable

21

HH collar screw M6x35 TX30

0025060356

Unavailable

22

Plug cover

61411095000

Unavailable

23

pulse generator KOKUSAN 4K3-A/

59039034000

Unavailable

24

SPECIAL SCREW M5X16

60339035000

Unavailable
