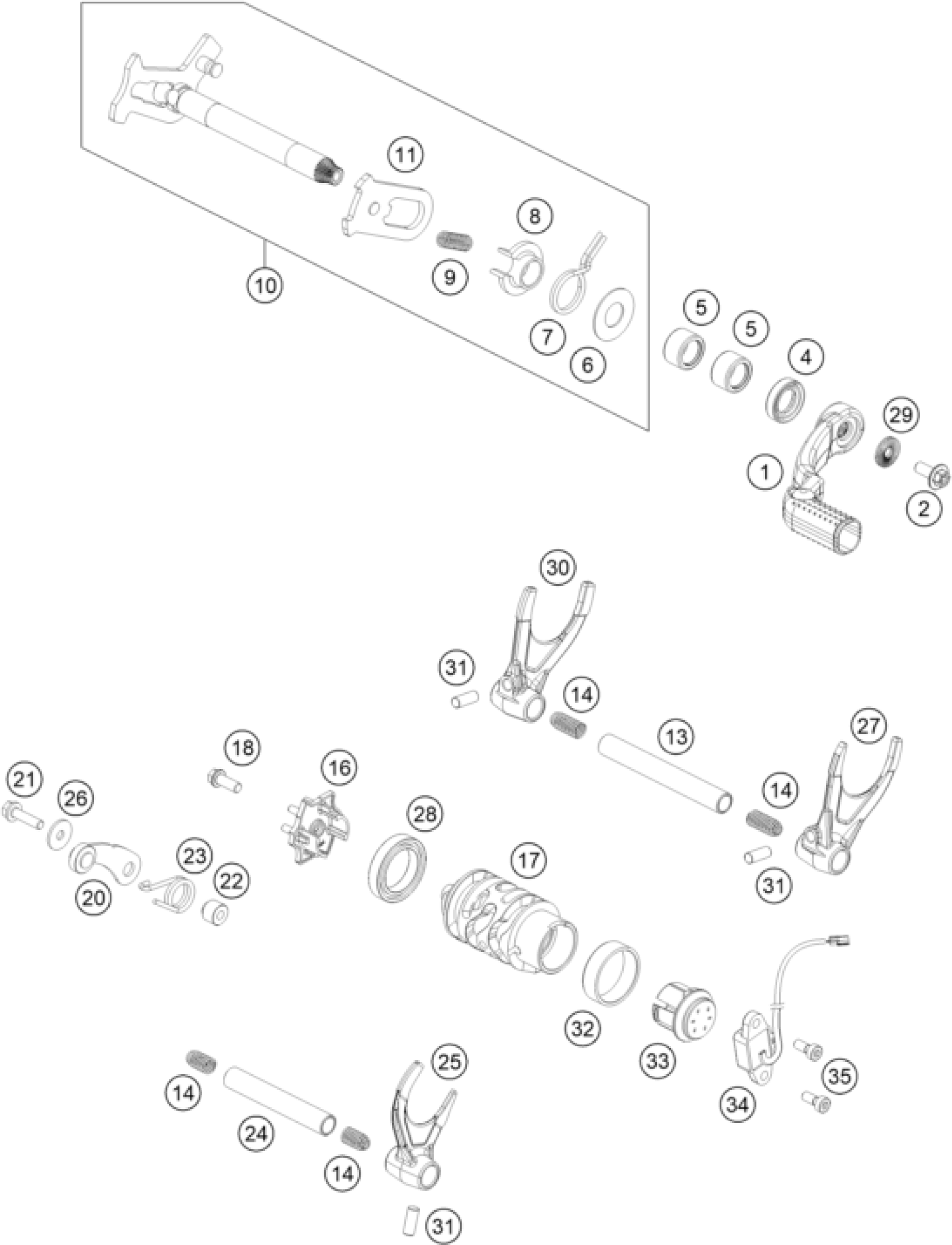

KTM KTM 450 RALLY REPLICA 2025 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT LEVER CPL.

79434031100

Unavailable

2

HH collar screw M6x15 TX30

0024060156S

Unavailable

4

radial shaft seal 14x24x6 B

0760142460

Unavailable

5

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

6

STOP DISK 14X30X1,5

90134050000

Unavailable

7

RETURN SPRING 2,2MM '95

54634014100

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

Unavailable

10

Shift Shaft cpl.

79434005033M02

Unavailable

11

SLIDING PLATE

61234008044

Unavailable

13

GEAR SHIFT RAIL 11,8X91,1MM

79434020000

Unavailable

14

Compression spring L=25mm D=0.

58038023400

Unavailable

16

Shift star cmpl.

76734015000M01

Unavailable

17

Shift Roller 6 gear

76734512000

Unavailable

18

AH SCREW DIN6912 M6X30 8.8

0012060303

Unavailable

20

LOCKING LEVER CPL.

78134024044

Unavailable

21

HH collar screw M5x20 TX30

0025050206

Unavailable

22

Sleeve detent arm

76734052000

Unavailable

23

Detend arm spring

76734023000M02

Unavailable

24

GEAR SHIFT RAIL 11,8X74,5MM

79434019000

Unavailable

25

Shift fork 5/-6 gear

76734001000M06

Unavailable

26

washer DIN 9021 A - 5.3

0021050003

Unavailable

27

Shift fork 2/-4 gear

79434002100M02

Unavailable

28

BALL BEARING 61805 C3

0625618050

Unavailable

29

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

30

Shift fork 1/-3 gear

79434003100M02

Unavailable

31

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

32

Slide Bearing

79234012010M01

Unavailable

33

Magnet bracket cmpl.

79234012020

Unavailable

34

Switch position sensor

79211023000M02

Unavailable

35

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

Unavailable
