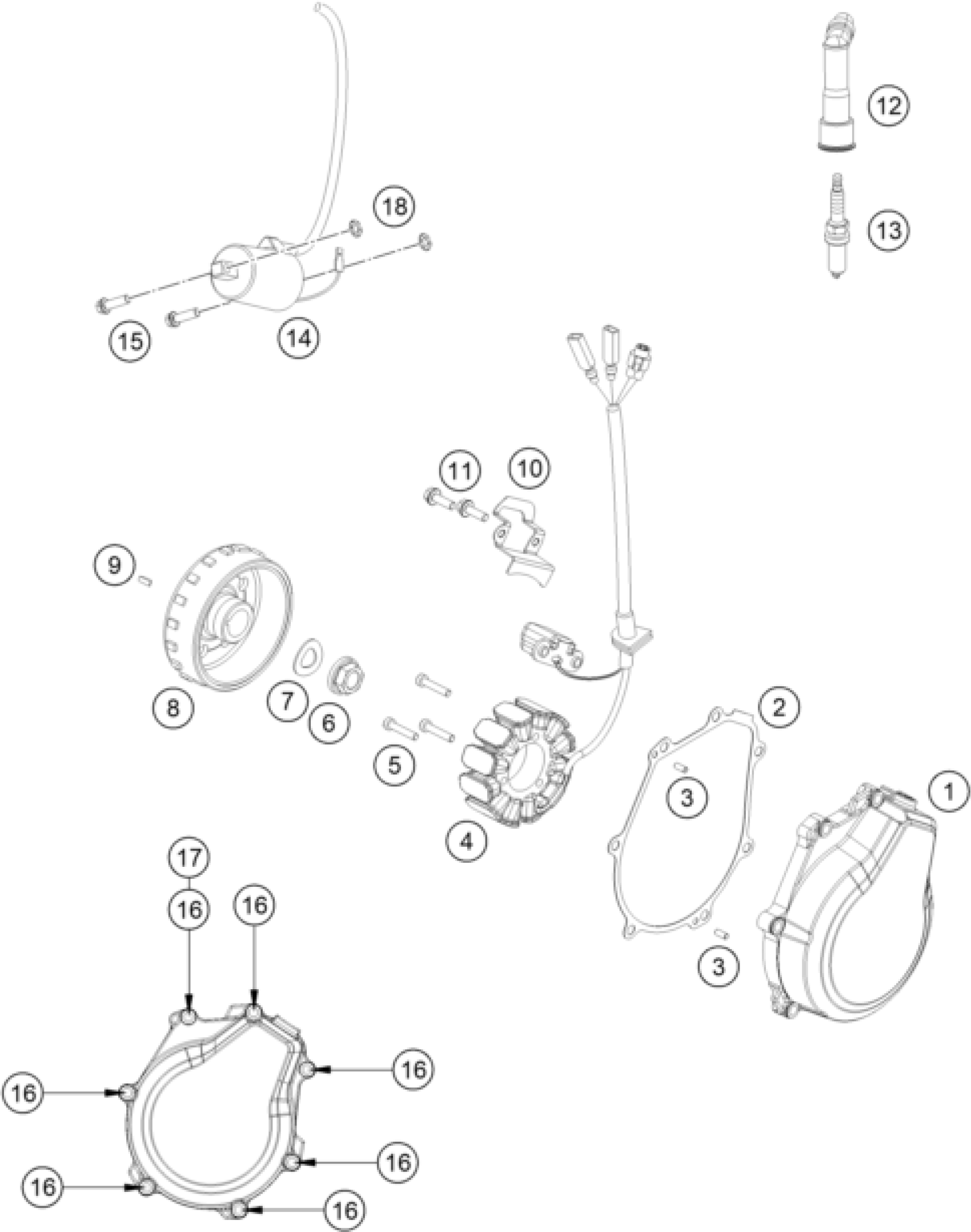

KTM KTM 450 RALLY REPLICA 2025 IGNITION SYSTEM Diagram

#

Description
Price

1

Ignition cover

7943070200015

Unavailable

2

IGNITION COVER GASKET

79430040000

Unavailable

3

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

4

STATOR

79239104000

Unavailable

5

Cap head screw DIN 6912 - M5x3

0012050303S

Unavailable

6

COLLAR NUT M12X1 R/S

49030021000

Unavailable

7

SPRING WASHER DIN0137-B12

0137120000

Unavailable

8

ROTOR EXC 08

78039205000

Unavailable

9

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

10

CABLE BRACKET

79430502050

Unavailable

11

HH collar screw M5x16 TX30

0025050166

Unavailable

12

Spark plug connector

79539190000

Unavailable

13

PLUG NGK LMAR9AI - 8

77239093000

Unavailable

14

Ignition coil

58439006000

Unavailable

15

HH collar screw M6x20 TX30

0025060206

Unavailable

16

HH collar screw M6x25 TX30

0025060256

Unavailable

17

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

18

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable
