1975 Kawasaki KS125-A Headlight/taillight Diagram

← All diagrams

Find the part on the Headlight/taillight diagram for your 1975 Kawasaki KS125-A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

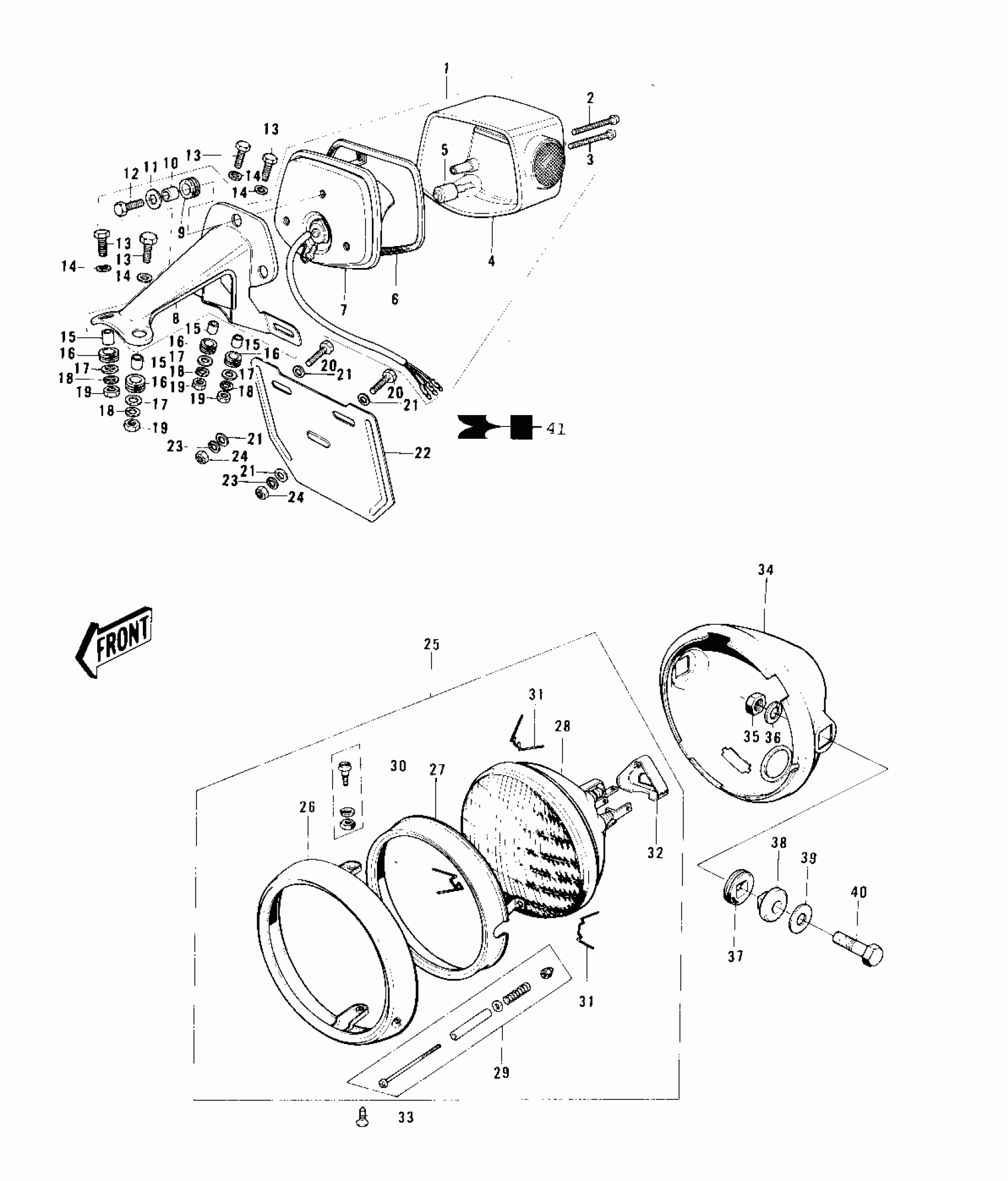

1975 Kawasaki KS125-A Headlight/taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,TAIL,BLACK

23024-048-21

1
Out of stock

2

SCREW

220R0455

1

$4.44

In stock

3

SCREW PAN HEAD 4X50

220E0450

1
Out of stock

4

LENS,TAIL LAMP

23026-028

1
Out of stock

5

BULB,6V 32/3CP

92069-074

1
Out of stock

6

GASKET,TAIL LAMP LENS

23028-019

1
Out of stock

7

BODY COMP TAIL LAMP

23027-1018

1
Out of stock

8

BKT,TAIL LAMP,BLACK

23036-037-21

1
Out of stock

9

DAMPER RUBBER

92075-076

1

$3.97

In stock

10

COLLAR,6.8X10X8.5

92027-129

1

$3.97

In stock

11

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

12

UNAVAILABLE IN PRICE BOOK

110B620

1
Out of stock

13

BOLT-UPSET

112G0630

1
Out of stock

14

WASHER,6.5X22X1.6

92022-237

1
Out of stock

15

COLLAR 6.8X10X10.5

92027-120

1

$3.97

In stock

16

1

$3.72

In stock

17

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

18

WASHER SPRING 6MM

461F0600

1
Out of stock

19

NUT 6MM

311B0600

1
Out of stock

20

BOLT-UPSET,6X20

112G0620

1
Out of stock

21

1

$1.19

In stock

22

BRACKET,LICENSE PLATE

11034-1117

1
Out of stock

23

WASHER SPRING 6MM

461F0600

1
Out of stock

24

NUT 6MM

311B0600

1
Out of stock

25

LAMP UNIT,HEAD

23003-021

1

$144.39

In stock

26

RIM,HEAD LAMP

23006-042

1

$62.24

In stock

27

1

$39.81

In stock

28

LENS-COMP,"4020" MARK

23007-055

1
Out of stock

29

SCREW ASSY,FOCUS AJST

23013-5001

1
Out of stock

30

1

$5.46

In stock

31

1

$4.78

In stock

32

1

$7.92

In stock

33

1

$0.51

In stock

34

BODY,HEAD LAMP,BLACK

23005-044-21

1

$66.12

In stock

35

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

36

WASHER SPRING 10MM

461F1000

1
Out of stock

37

DAMPER RUBBER

23066-011

1
Out of stock

38

COLLAR

23052-005

1

$14.36

In stock

39

1

$4.25

In stock

40

BOLT,HEX HEAD,10X30

92007-041

1
Out of stock

41

EMBLEM,LICNSE PLT BKT

56018-176

1
Out of stock
