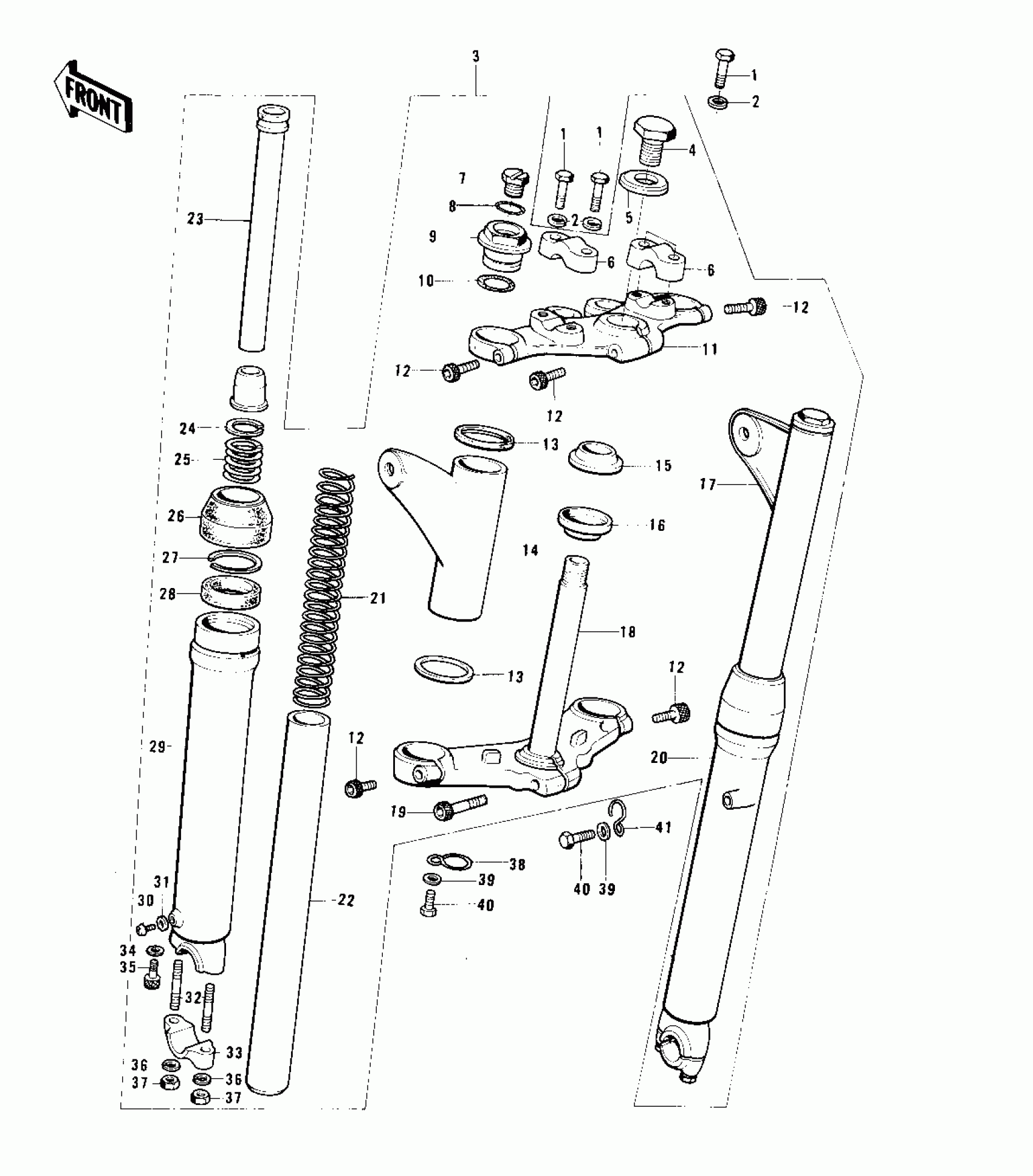

Kawasaki KS125-A FRONT FORK ('74-'75) Diagram

#

Description
Price

1

BOLT 8X38

92001-1405

$12.52

2

WASHER SPRING 8MM

461F0800

Unavailable

3

FORK-FRONT

44001-129

$650.33

4

BOLT,STEERING STEM

44041-072

Unavailable

5

WASHER,STEERING STEM

44043-056

Unavailable

6

HOLDER,HANDLEBAR

46012-012

$27.76

7

BOLT,HEX HEAD,12MM

44041-069

Unavailable

8

O RING

44045-048

Unavailable

9

BOLT,FORK TOP

44032-011

Unavailable

10

"O" RING,FORK TOP

44046-021

Unavailable

11

HEAD,STEERING STEM

44039-061

$107.78

12

BOLT,HEX HEAD,8X34

44041-070

$5.27

13

GASKET,FORK COVER

44045-049

Unavailable

14

COVER,L.H FORK

44033-063

$75.71

15

RACE,STEERING STEM BEARING

92047-010

Unavailable

16

SEAL,STEERING STEM

44010-027

Unavailable

17

COVER,R.H FORK

44034-063

$77.54

18

STEM,STEERING,GMN

44037-1030

$128.66

19

BOLT,SPECIAL 10X42

44041-073

$9.37

20

TUBE,RH,FORK OUTER

44006-1045

$189.41

21

SPRING,FORK

44026-053

$34.58

22

TUBE,FORK INNER

44013-047

Unavailable

23

CYLINDER-FORK

44022-018

$59.51

24

RING

44025-002

$5.08

25

SPRING,FORK CYLINDER

44026-054

$4.34

26

DUST SHIELD,FORK

44010-026

Unavailable

27

CIRCLIP,45MM

481J4500

$1.49

28

OIL SEAL,FORK

44009-018

Unavailable

29

TUBE,LH,FORK OUTER

44005-1045

$189.41

30

BOLT-UPSET,6X8

112B0608

Unavailable

31

GASKET,DRAIN PLUG

44045-047

$7.12

32

STUD,8X35

92004-1009

$4.80

33

HOLDER,FRONT AXLE

44063-009

$39.11

34

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

35

BOLT,FORK CYLINDER

44041-078

$9.56

36

WASHER SPRING 8MM

461F0800

Unavailable

37

NUT,8MM

312G0800

$2.56

38

CLAMP

92037-083

Unavailable

39

WASHER PLAIN 6MM

411B0600

Unavailable

40

BOLT,6X10

112G0610

Unavailable

41

CLAMP,CABLE

92037-092

$7.41
