1975 Kawasaki KS125-A Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1975 Kawasaki KS125-A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

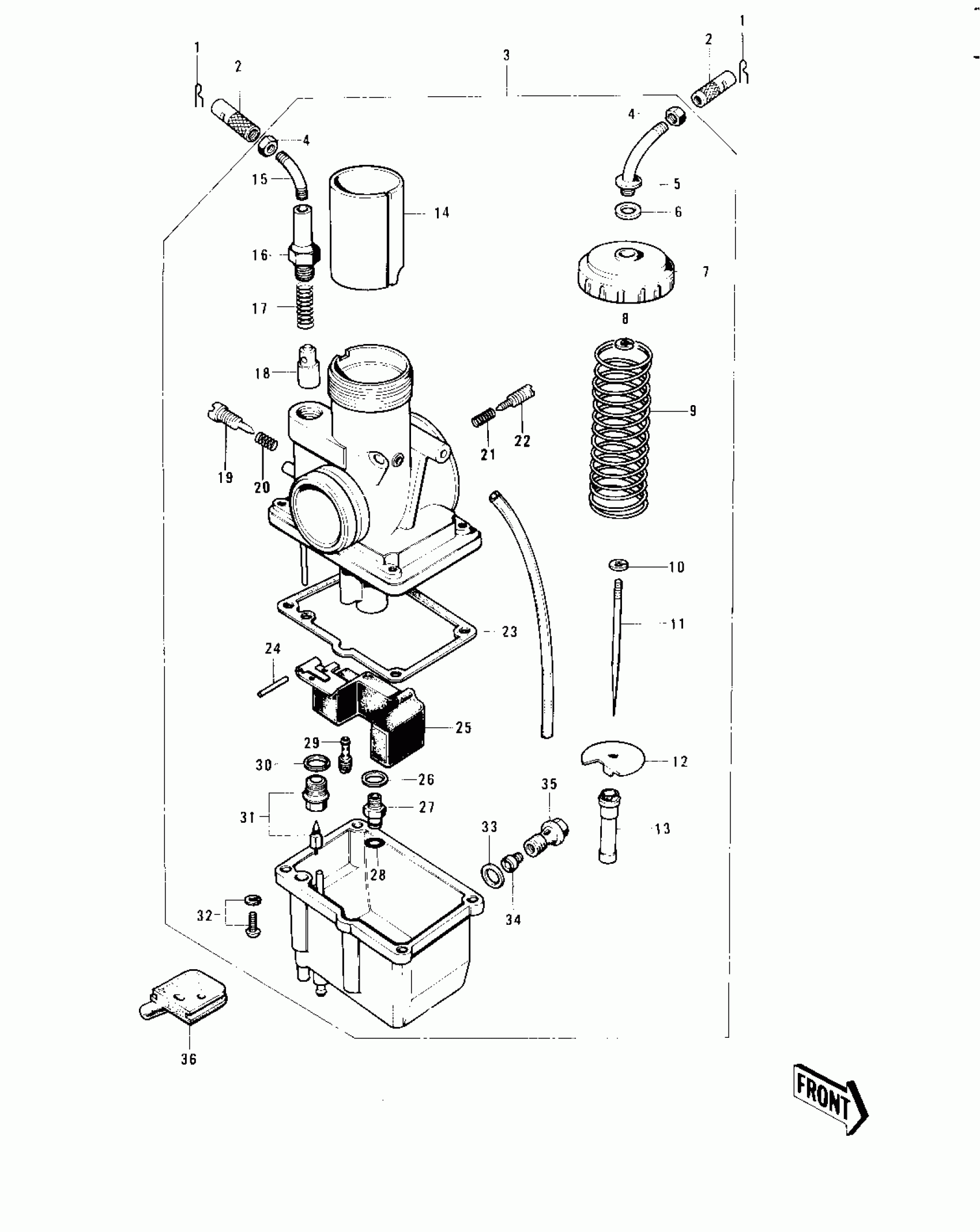

1975 Kawasaki KS125-A Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RING-SNAP

92036-018

1
Out of stock

2

CABLE ADJUSTER

16002-007

1
Out of stock

3

CARBURETOR ASSY

16001-199

1
Out of stock

4

NUT,CABLE ADJUST LOCK

16003-004

1
Out of stock

5

GUIDE,CABLE

16077-011

1
Out of stock

6

GASKET,CABLE GUIDE

16029-007

1
Out of stock

7

CAP,MIXING CHAMBER

16004-024

1
Out of stock

8

CLAMP,CABLE GUIDE

16008-011

1
Out of stock

9

SPRING,THROTTLE VALVE

16006-029

1
Out of stock

10

CLAMP,E-TYPE

16008-010

1
Out of stock

11

JET NEEDLE 4EJ3

16009-040

1
Out of stock

12

SEAT-SPRING,THROTTLE VALVE

16007-023

1
Out of stock

13

NEEDLE JET,O-4

16017-085

1
Out of stock

14

VALVE,THROTTLE

16025-079

1
Out of stock

15

GUIDE,CABLE

16077-010

1
Out of stock

16

CAP,STARTER PLUNGER

16012-017

1
Out of stock

17

SPRING-PLUNGER

16013-003

1
Out of stock

18

PLUNGER,STARTER

16016-002

1
Out of stock

19

SCREW,THROTTLE STOP

16021-023

1
Out of stock

20

SPRING,THROTTLE STOP SCREW

16022-005

1
Out of stock

21

SPRING,PILOT AIR SCREW

16022-007

1
Out of stock

22

SCREW-PILOT AIR

16014-002

1
Out of stock

23

GASKET,FLOAT CHAMBER

16019-023

1
Out of stock

24

FLOAT PIN

16032-006

1
Out of stock

25

FLOAT

16031-026

1
Out of stock

26

WASHER,MAIN JET

16034-001

1
Out of stock

27

HOLDER-NEEDLE JET

16065-008

1
Out of stock

28

RING-O

92055-044

1
Out of stock

29

JET-PILOT,#30

92064-022

1
Out of stock

30

WASHER FLOAT VLV SEAT

16029-004

1
Out of stock

31

FLOAT VALVE ASSY,#2.6

16030-025

1
Out of stock

32

SCREW-PAN-WS-CROS

223B0414

1
Out of stock

33

GASKET-BANJO BOLT

16034-005

1
Out of stock

34

MAIN JET,#A100

92063-1033

1
Out of stock

34

MAIN JET,#A97.5

92063-063

1
Out of stock

35

BOLT-BANJO

92001-097

1
Out of stock

36

GROMMET,OVERFLOW

16136-009

1
Out of stock
