1981 Kawasaki KM100 Front Hub/brake Diagram

← All diagrams

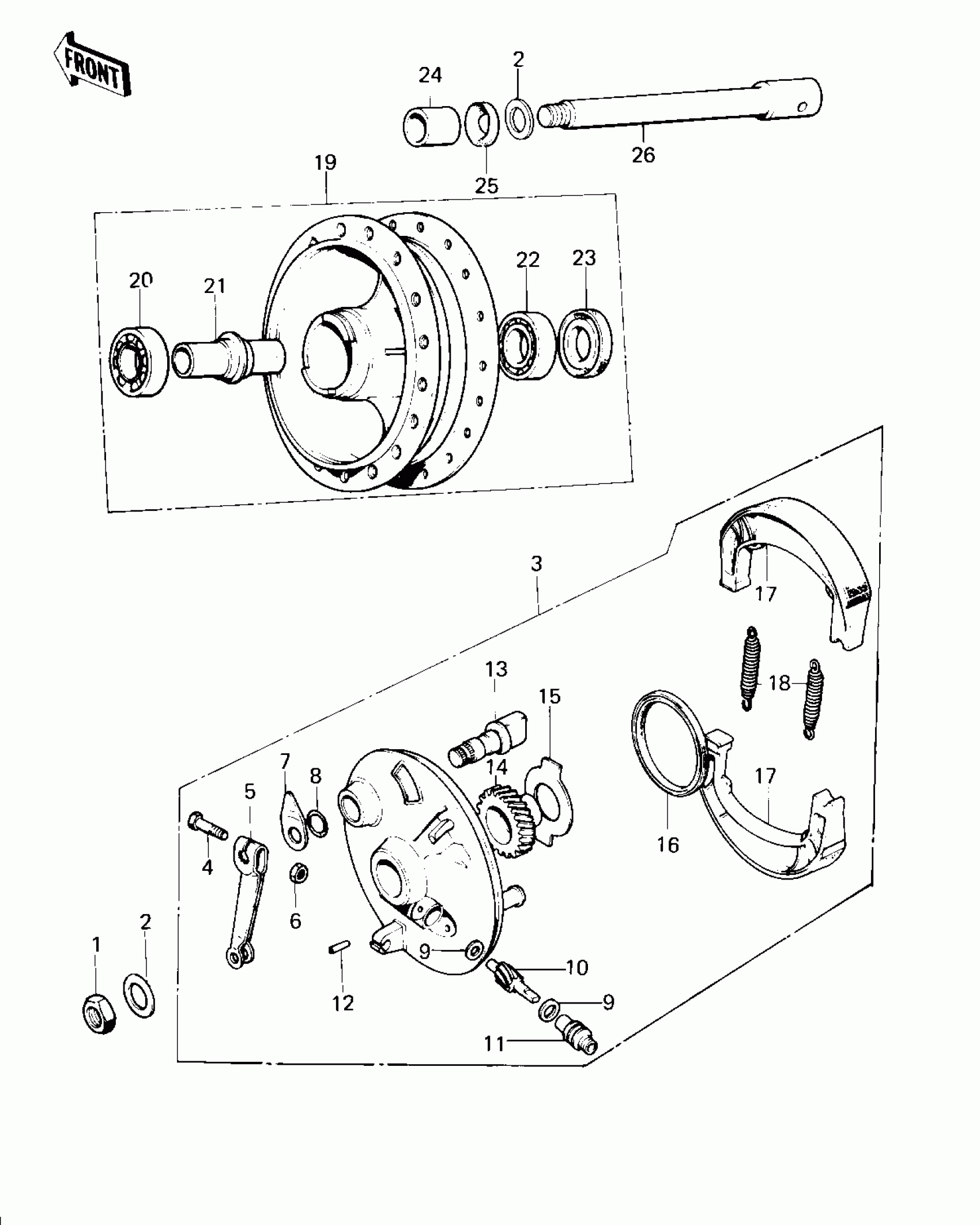

Find the part on the Front Hub/brake diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KM100 Front Hub/brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NUT,10MM

42045-005

1

$6.34

In stock

2

WASHER-PLAIN,10MM

411B1000

1
Out of stock

3

PANEL-ASY,FR BRK

41035-1027

1
Out of stock

3

PANEL-ASY,FR BRK

41035-1027

1
Out of stock

4

BOLT-UPSET

112G0630

1
Out of stock

5

LEVER-BRAKE CAM

41053-005

1

$12.24

In stock

6

NUT,6MM

41072-007

1

$3.12

In stock

7

1

$13.78

In stock

8

RING-O,BRAKE CAM

92055-004

1
Out of stock

9

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

10

PINION-SPEEDOMETER

41060-014

1
Out of stock

11

1

$18.66

In stock

12

PIN,SPRING

41082-001

1

$3.53

In stock

13

CAM-BRAKE

41050-018

1

$21.98

In stock

14

GEAR,SPEEDOMETER

41060-1026

1
Out of stock

14

GEAR,SPEEDOMETER

41060-1026

1
Out of stock

15

1

$9.56

In stock

16

SEAL-OIL,BRAKE PANEL

92050-002

1
Out of stock

17

SHOE-BRAKE

41048-1085

1

$20.89

In stock

18

SPRING,BRAKE SHOE

92081-1766

1

$6.39

In stock

19

DRUM-ASSY,FR BRK

41034-1040

1
Out of stock

20

BEARING BALL #6300Z

601B6300Z

1
Out of stock

21

COLLAR,L=51

41039-002

1

$10.54

In stock

22

1

$14.07

In stock

23

SEAL-OIL,TC17317

92050-063

1
Out of stock

24

COLLAR,L=13

41069-026

1

$12.47

In stock

25

DUST SHIELD FRNT DRUM

41042-002

1
Out of stock

26

AXLE,FR

41068-039

1
Out of stock
