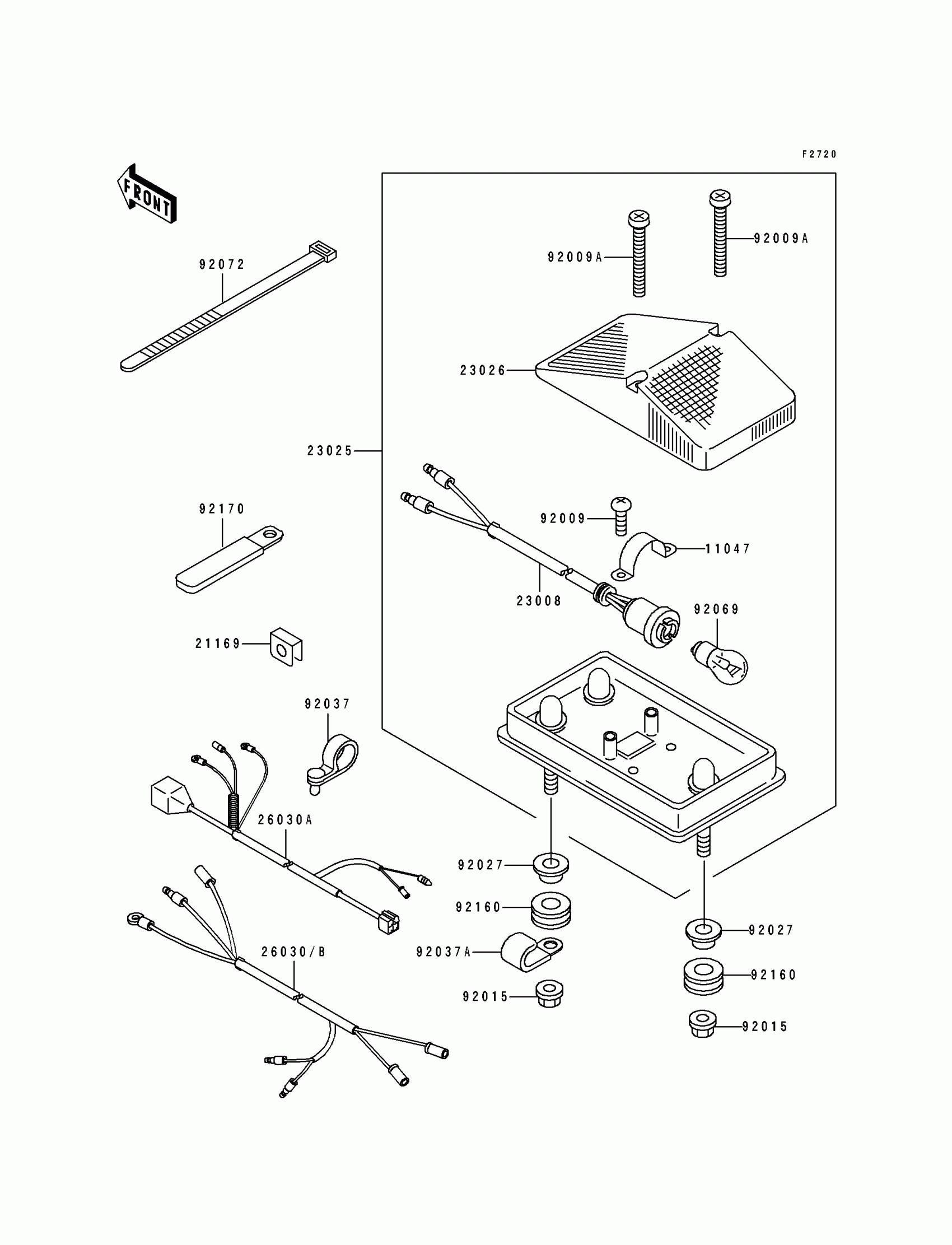

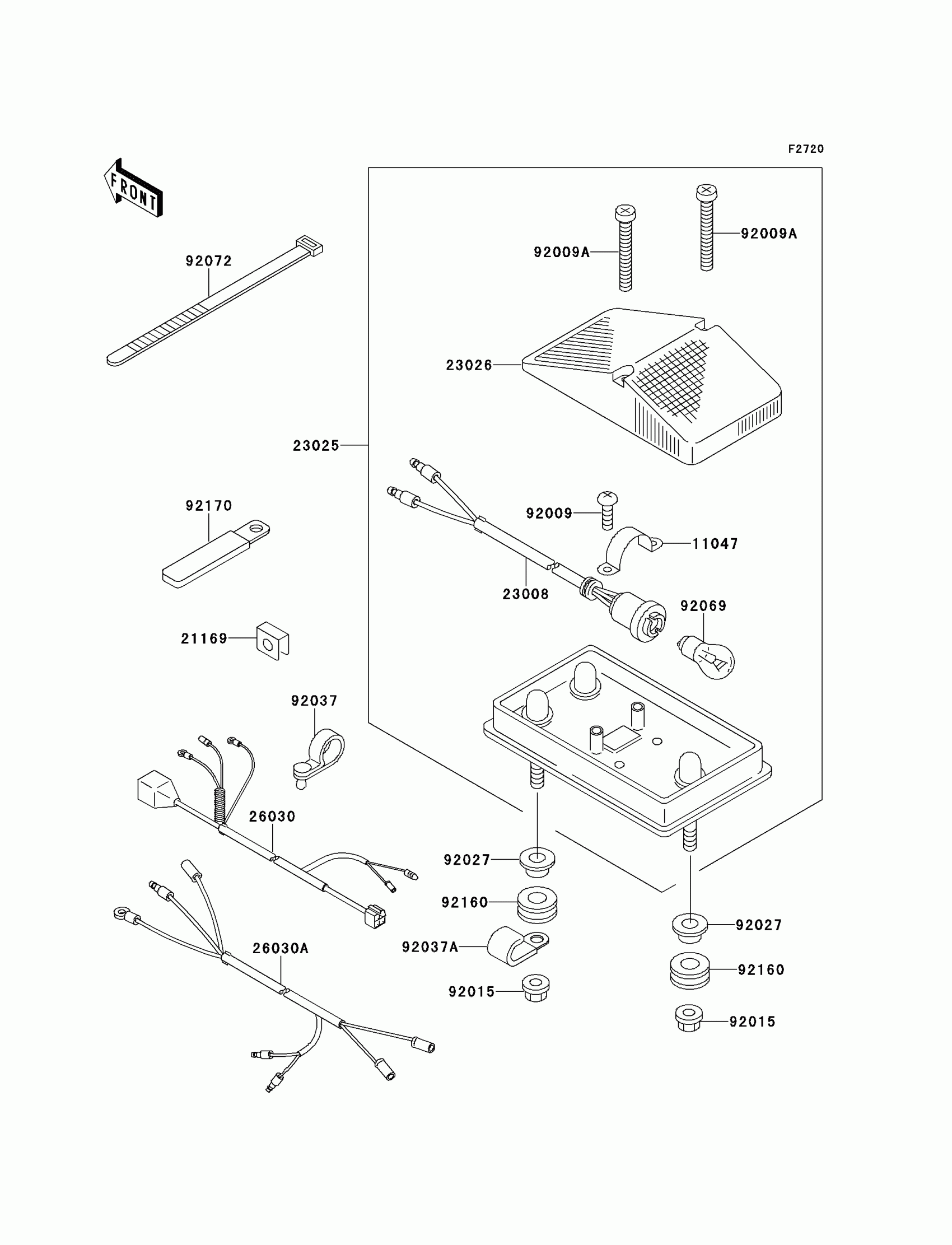

Find the part on the Taillight diagram for your 1995 Kawasaki KLX650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Kawasaki KLX650R Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,TAIL LAMP

11047-1238

1

$5.61

In stock

21169

TERMINAL

21169-1066

1

$4.81

In stock

23008

1

$46.37

In stock

23025

LAMP-TAIL

23025-1215

1

$141.17

In stock

23026

LENS,TAIL LAMP

23026-1131

1

$28.89

In stock

26030A

HARNESS,RADIATOR FAN

26030-1294

1
Out of stock

26030B

HARNESS,MAIN

26030-1309

1
Out of stock

92009

SCREW,TAPPING,4X10

92009-1021

1
Out of stock

92009A

SCREW,TAPPING,4X30

92009-1647

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92027

COLLAR,L=14.1

92027-1920

1

$5.45

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037A

CLAMP

92037-1877

1

$5.71

In stock

92069

BULB,12V 10W

92069-1072

1
Out of stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92170

CLAMP,L=150

92170-1114

1

$7.36

In stock
