Partiron

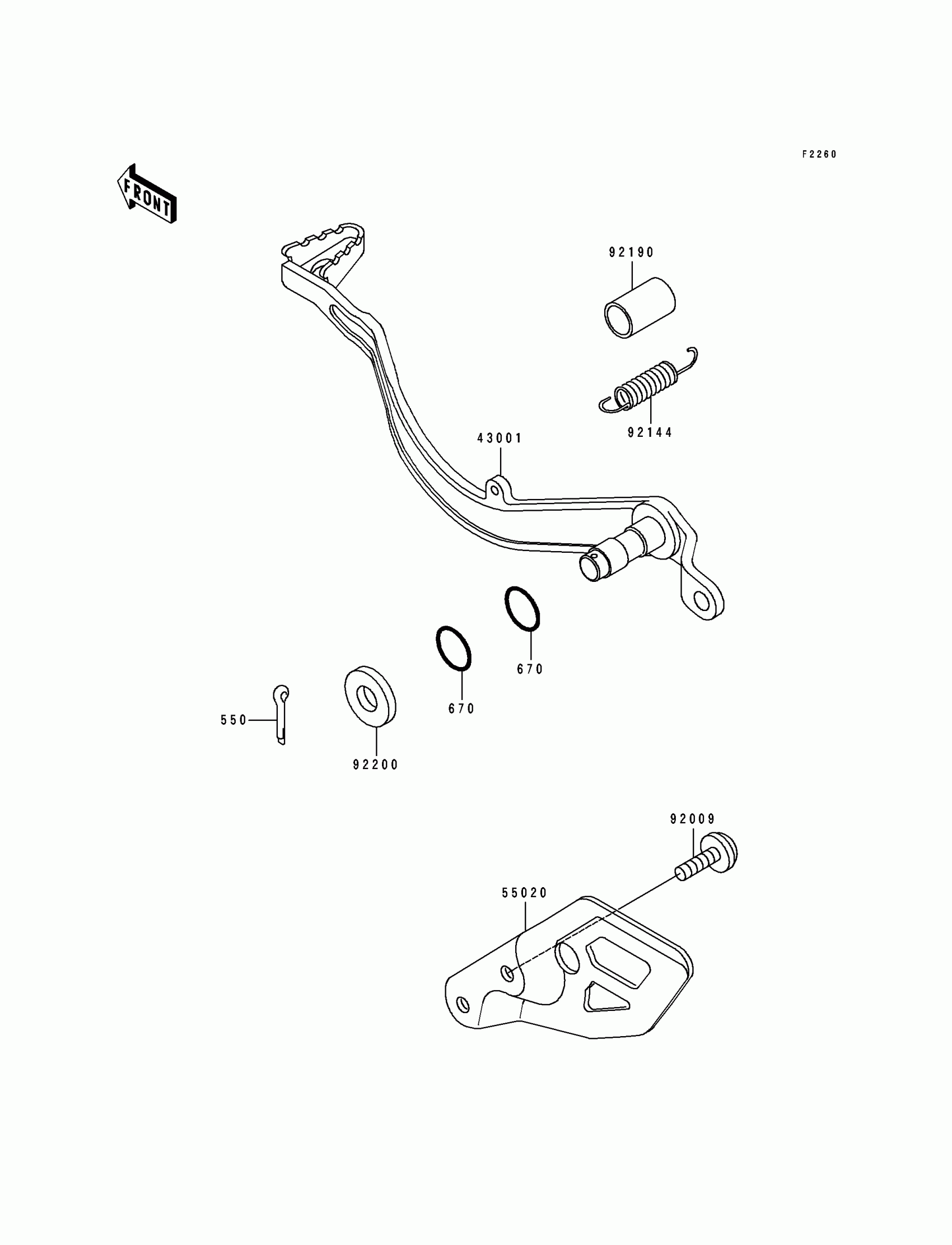

Kawasaki KLX650R Brake Pedal Diagram

#

Description
Price

43001

LEVER-BRAKE,PEDAL

43001-1318

Unavailable

55020

GUARD,RR MASTER CYLINDER

55020-1445

$20.63

92009

SCREW,6X10,WHITE

92009-1286

$3.29

92144

SPRING,BRAKE PEDAL RETURN

92144-1752

$5.55

92190

TUBE,13X16X25

92190-1488

$2.98

92200

WASHER,14.5X24X1.6

92200-1171

$3.33

550

PIN-COTTER,2.5X25

550D2525

Unavailable

670

O RING,14MM

670B2014

$0.93
