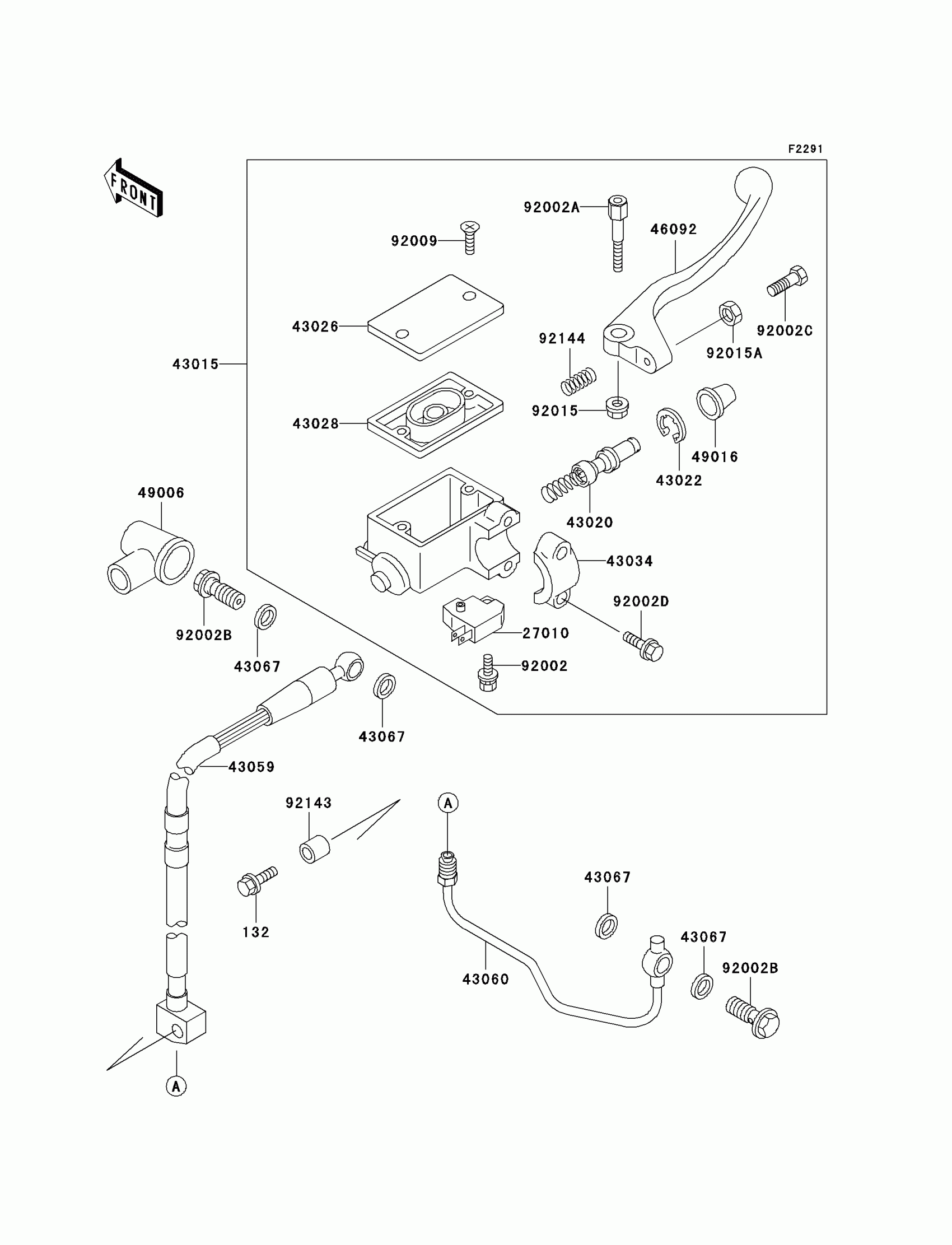

Kawasaki KLX650 Front Master Cylinder Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X30

132G0630

Unavailable

27010

SWITCH,BRAKE

27010-1170

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-1534

Unavailable

43020

PISTON-COMP-BRAKE

43020-1104

$53.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1074

$20.73

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43059

HOSE-BRAKE,FR

43059-1737

$124.00

43060

PIPE-BRAKE,FR

43060-1093

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$1.57

46092

LEVER-GRIP,FRONT BRAKE

46092-1175

$17.71

49006

BOOT,DUST

49006-1040

$8.74

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT,LEVER SET

92002-1879

$18.69

92002B

BOLT,OIL,L=23

92002-1888

$4.15

92002C

BOLT,ADJUST

92002-1893

$7.36

92002D

BOLT

92002-1894

$4.18

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,ADJUST

92015-1642

$2.99

92143

COLLAR,6.5X9.5X17

92143-1408

$4.24

92144

SPRING,RETURN

92144-1103

$7.18
