Partiron

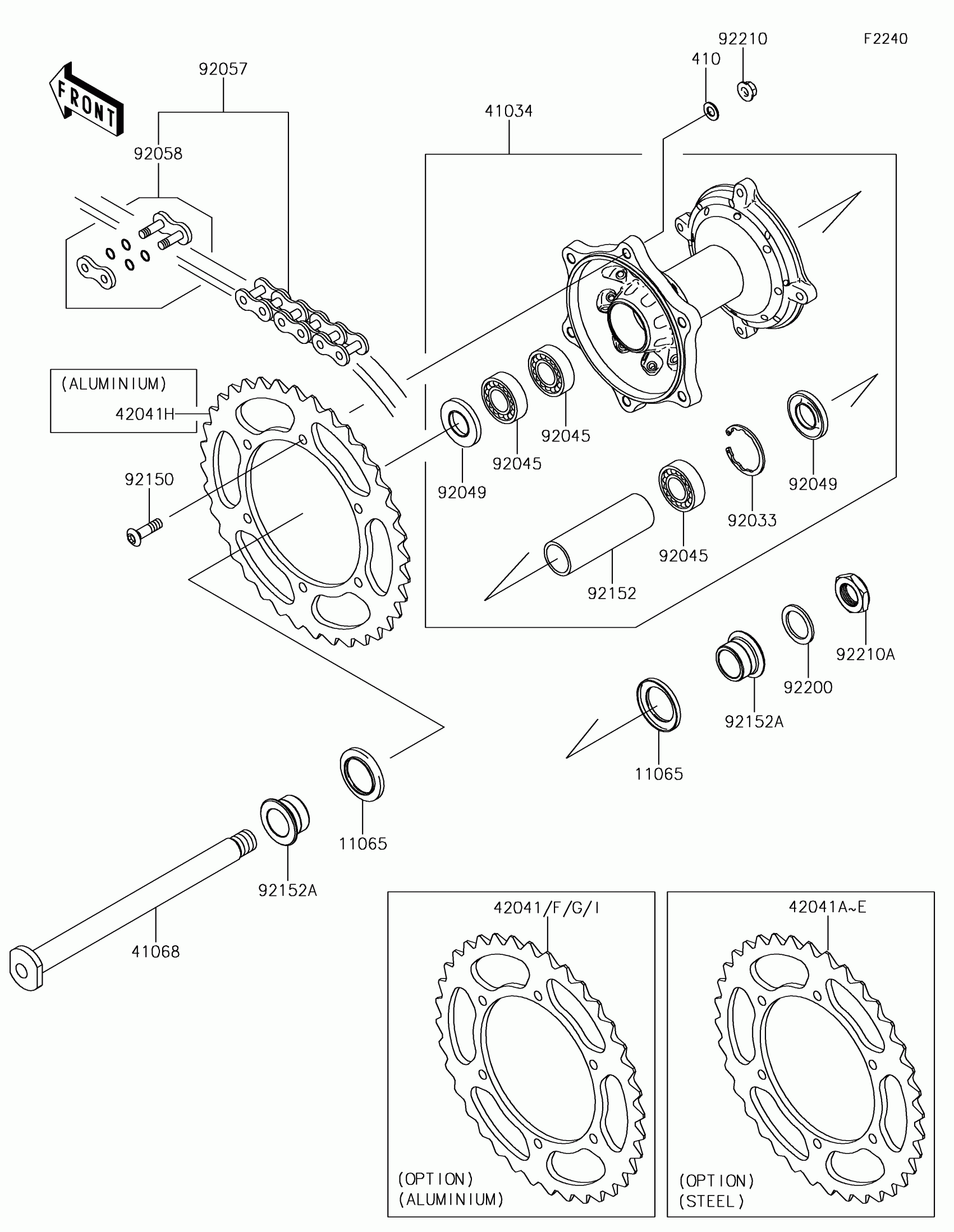

Kawasaki KLX450R Rear Hub Diagram

#

Description
Price

11065

CAP,AXLE

11065-1253

$5.79

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

41034

DRUM-ASSY,REAR BRAKE

41034-0057

$449.94

41068

AXLE,RR,25X259

41068-0591

$90.96

42041

SPROCKET-HUB,52T,AL

42041-0001

$147.02

42041A

SPROCKET-HUB,48T,STEEL

42041-1383

$75.39

42041B

SPROCKET-HUB,49T,STEEL

42041-1384

$75.39

42041C

SPROCKET-HUB,50T,STEEL

42041-1408

$72.32

42041D

SPROCKET-HUB,51T,STEEL

42041-1428

$72.32

42041E

SPROCKET-HUB,52T,STEEL

42041-1429

$72.32

42041F

SPROCKET-HUB,48T,AL

42041-1448

$141.34

42041G

SPROCKET-HUB,49T,AL

42041-1449

$141.34

42041H

SPROCKET-HUB,50T,AL

42041-1450

$141.34

42041I

SPROCKET-HUB,51T,AL

42041-1451

$131.31

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,69052RS

92045-1446

$34.07

92049

SEAL-OIL

92049-1614

$13.97

92057

CHAIN,DRIVE,DID520VT2X114L

92057-0710

$201.82

92058

JOINT-CHAIN,DRIVE

92058-0046

$13.03

92150

BOLT,SOCKET,8X28

92150-1978

$6.55

92152

COLLAR,REAR BRAKE DRUM,L=106.5

92152-1427

$30.86

92152A

COLLAR,RR HUB

92152-1544

$22.27

92200

WASHER,22.5X35X2.3

92200-1623

$1.17

92210

NUT,FLANGED,LOCK,8MM

92210-0493

$5.80

92210A

NUT,SELF LOCK,22MM

92210-0939

$17.56
