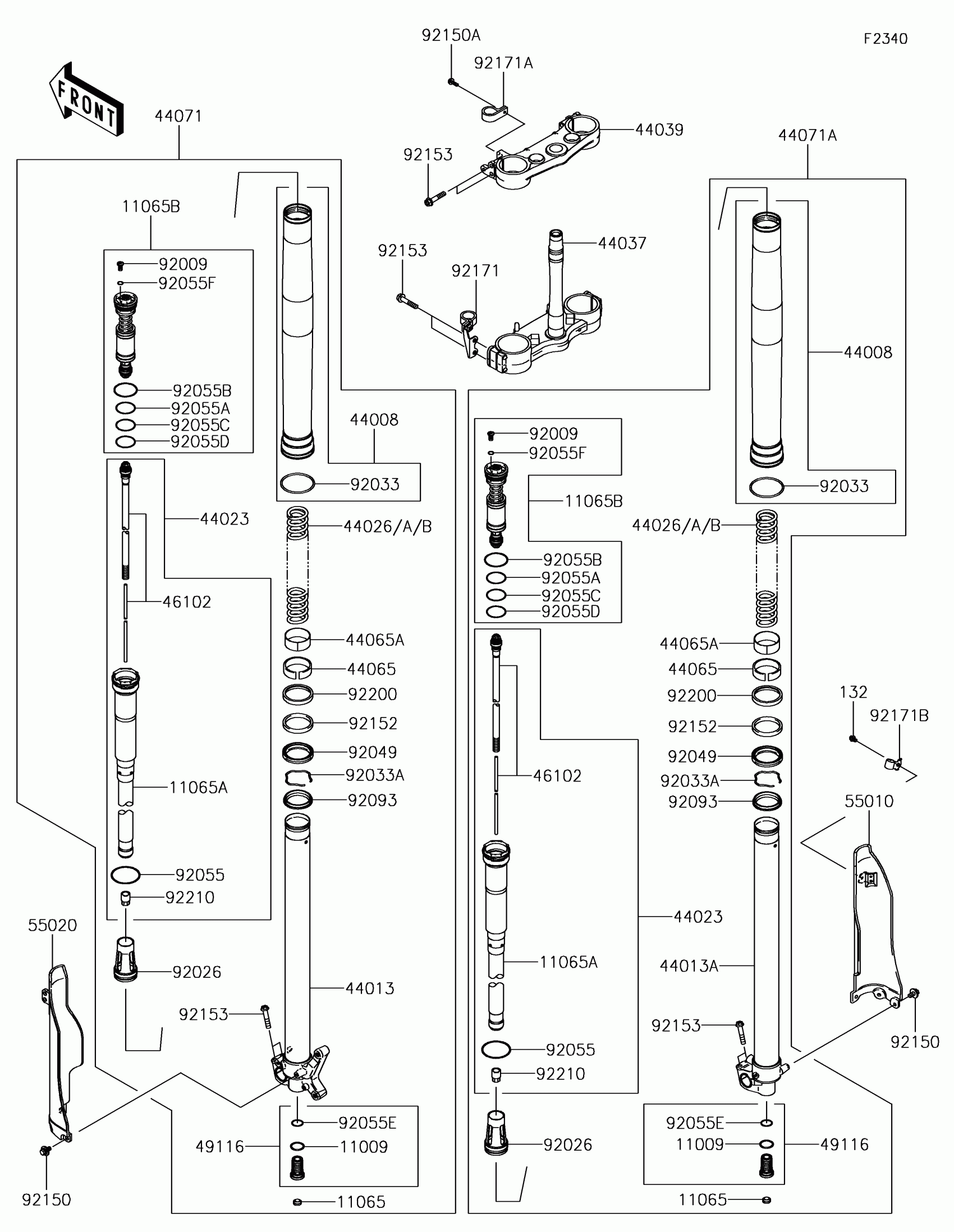

Kawasaki KLX450R Front Fork Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1592

$4.64

11065

CAP

11065-0097

$4.92

11065A

CAP,FORK,TOP,SILVER

11065-0163-KX

$242.75

11065B

CAP,BASE VALVE

11065-0371

$244.59

44008

PIPE-FORK OUTER,GOLD

44008-0031-828

$635.91

44013

PIPE-FORK INNER,LH

44013-0075

$607.21

44013A

PIPE-FORK INNER,RH

44013-0076

$607.21

44023

CYLINDER-SET-FORK,SILVER

44023-0055-KX

$575.17

44026

SPRING-FRONT FORK,K=4.3N/MM

44026-0104

$90.10

44026A

SPRING-FRONT FORK,K=4.4N/MM

44026-0113

$90.10

44026B

SPRING-FRONT FORK,K=4.5N/MM

44026-0114

$90.10

44037

HOLDER-FORK UNDER,P.SILVER

44037-0080-458

$575.87

44039

HOLDER-FORK UPPER,P.SILVER

44039-0054-458

$252.10

44065

BUSHING-FRONT FORK

44065-0006

$17.85

44065A

BUSHING-FRONT FORK

44065-1140

$19.83

44071

DAMPER-ASSY,FORK,LH,GOLD/SIL

44071-0722-48R

$1,611.17

44071A

DAMPER-ASSY,FORK,RH,GOLD/SIL

44071-0723-48R

$1,611.17

46102

ROD,PISTON

46102-0096

$410.39

49116

VALVE-ASSY

49116-0015

$201.70

55010

GUARD-ASSY,FORK,RH,EBONY

55010-0001-6C

$57.25

55020

GUARD,FORK,LH,EBONY

55020-0172-6C

$57.25

92009

SCREW

92009-1884

$5.88

92026

SPACER

92026-0097

$25.75

92033

RING-SNAP

92033-0049

$4.10

92033A

RING-SNAP

92033-1329

$5.15

92049

SEAL-OIL

92049-0056

$20.63

92055

RING-O

92055-0104

$4.95

92055A

RING-O

92055-0105

$4.95

92055B

RING-O

92055-0106

$4.95

92055C

RING-O

92055-0116

$4.95

92055D

RING-O

92055-0117

$4.95

92055E

RING-O

92055-1156

$1.08

92055F

RING-O,2.8X6.6X1.9

92055-1441

$3.31

92093

SEAL,FORK OUTER TUBE

92093-1566

$16.80

92150

BOLT,6X14

92150-1340

$3.86

92150A

BOLT,5X16

92150-1802

$4.42

92152

COLLAR

92152-0824

$7.15

92153

BOLT,8X40

92153-0020

$4.24

132

BOLT-FLANGED-SMALL,6X8

132BB0608

$3.24

92171

CLAMP

92171-0819

$15.93

92171A

CLAMP

92171-0820

$7.61

92171B

CLAMP

92171-1615

$11.42

92200

WASHER

92200-0532

$4.66

92210

NUT

92210-0337

$21.54
