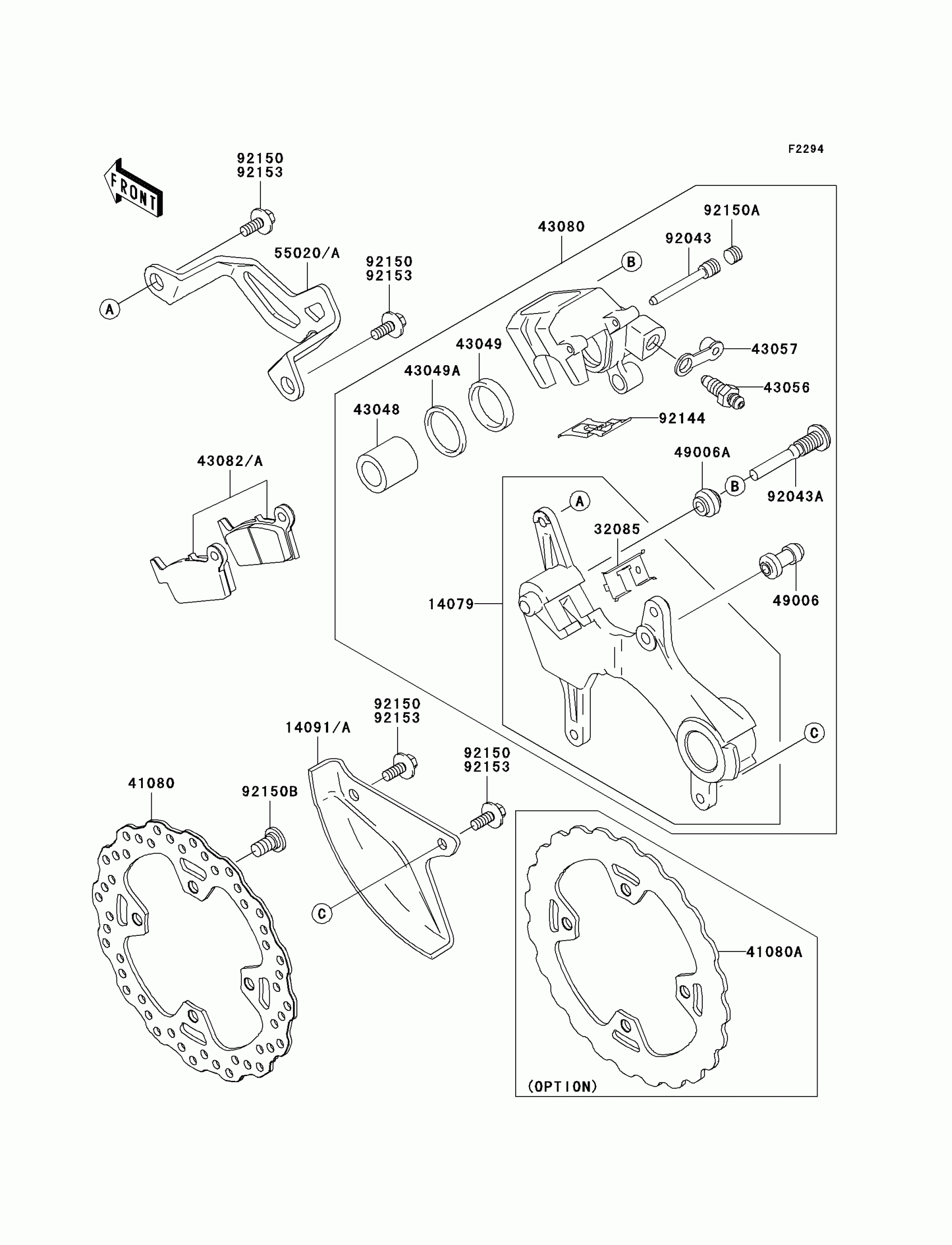

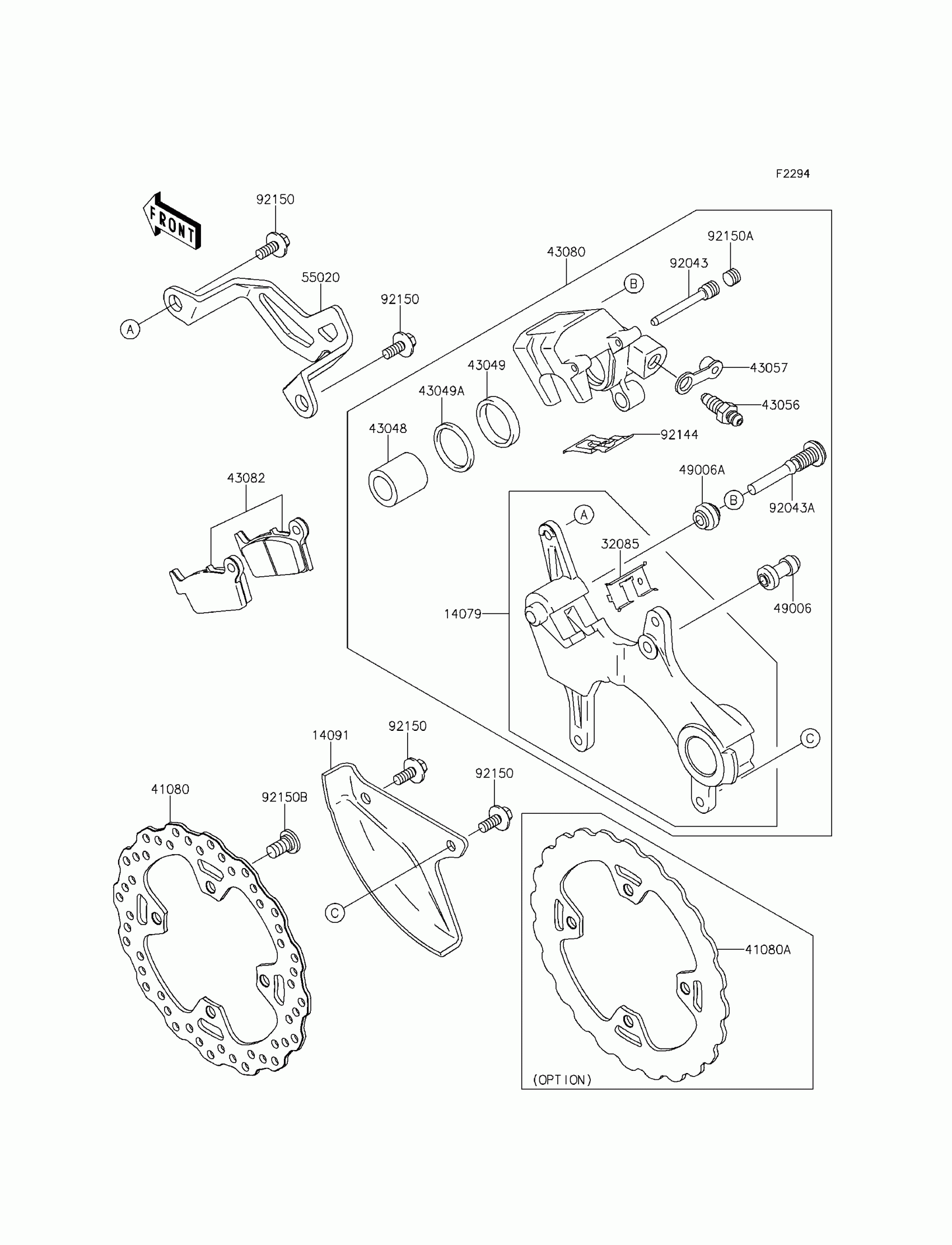

Kawasaki KLX450R (Australian) Rear Brake Diagram

Description

Price

14079

HOLDER-ASSY,REAR CALIPER

14079-0022

$160.10

14091A

COVER,REAR DISC,EBONY

14091-1523-6C

$28.88

32085

STOPPER,PAD

32085-1386

$6.75

41080

DISC,RR

41080-0076

$258.67

41080A

DISC,RR

41080-0094

$226.08

43048

PISTON-CALIPER

43048-1066

$74.44

43049

PACKING

43049-1063

$6.13

43049A

PACKING

43049-1064

$4.64

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR

43080-0037

$281.55

43082A

PAD-ASSY-BRAKE

43082-0108

$83.02

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

55020A

GUARD,REAR CALIPER,EBONY

55020-0458-6C

$30.46

92043

PIN,HANGER

92043-1507

$10.44

92043A

92043-1508

$10.44

92144

SPRING,PAD

92144-1819

$6.13

92150

BOLT,6X14

92150-1340

$3.86

92150A

BOLT,PLUG

92150-1692

$5.99

92150B

BOLT,DISC PLATE,8X15

92150-1811

$3.81
