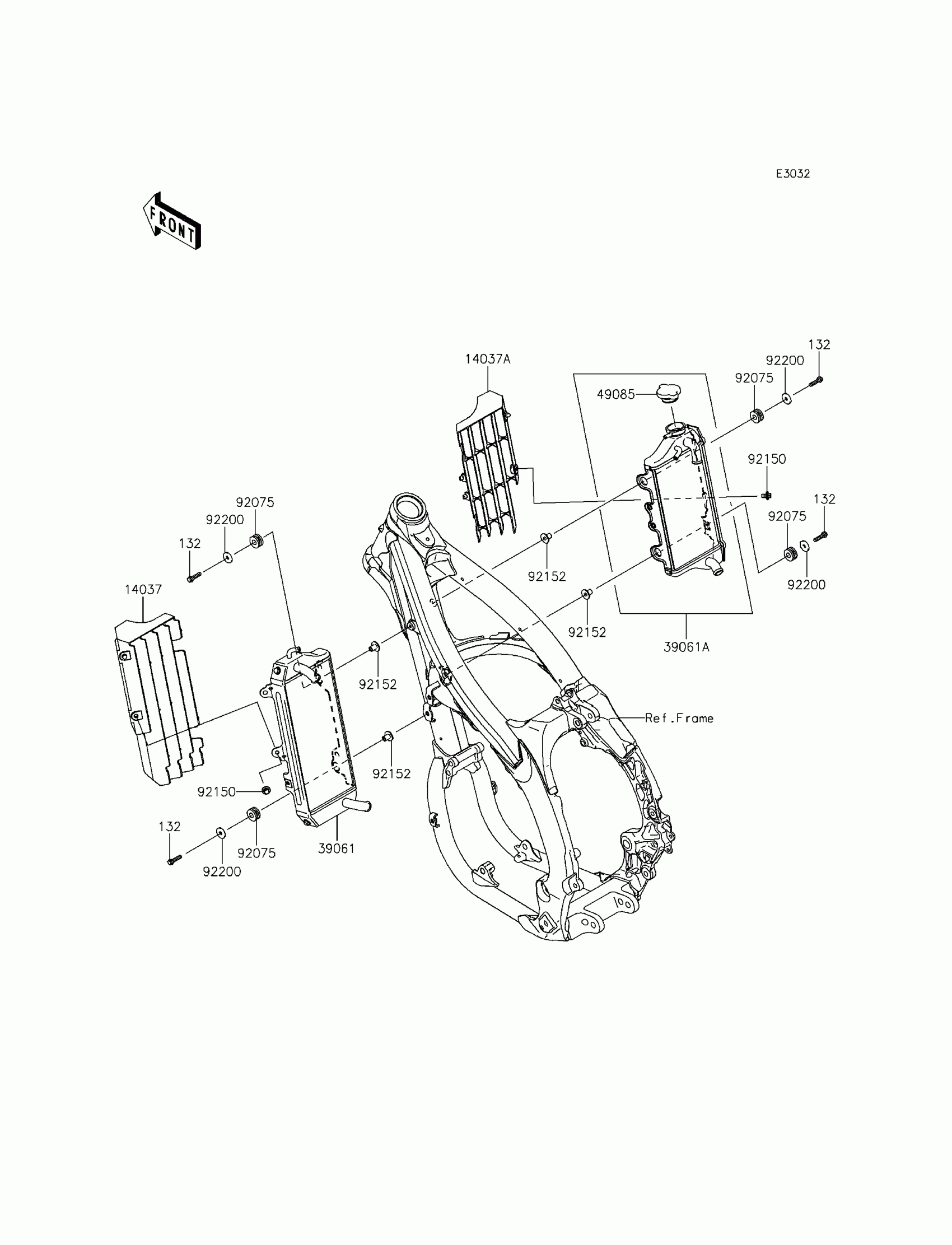

Kawasaki KLX450R (Australian) Radiator Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X25

132BB0625

$1.98

14037C

SCREEN,LH,EBONY

14037-0092-6C

$37.48

14037E

SCREEN,RH,EBONY

14037-0093-6C

$37.48

39061

RADIATOR-ASSY,LH

39061-0151

$392.71

39061A

RADIATOR-ASSY,RH

39061-0152

$420.50

49085

CAP-ASSY-PRESSURE

49085-1078

$45.97

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92150

BOLT,6X12

92150-1435

$3.29

92152

COLLAR,6.3X9.5(20)X14.2

92152-0379

Unavailable

92200

WASHER,6.5X22X2.3

92200-0271

$2.71
