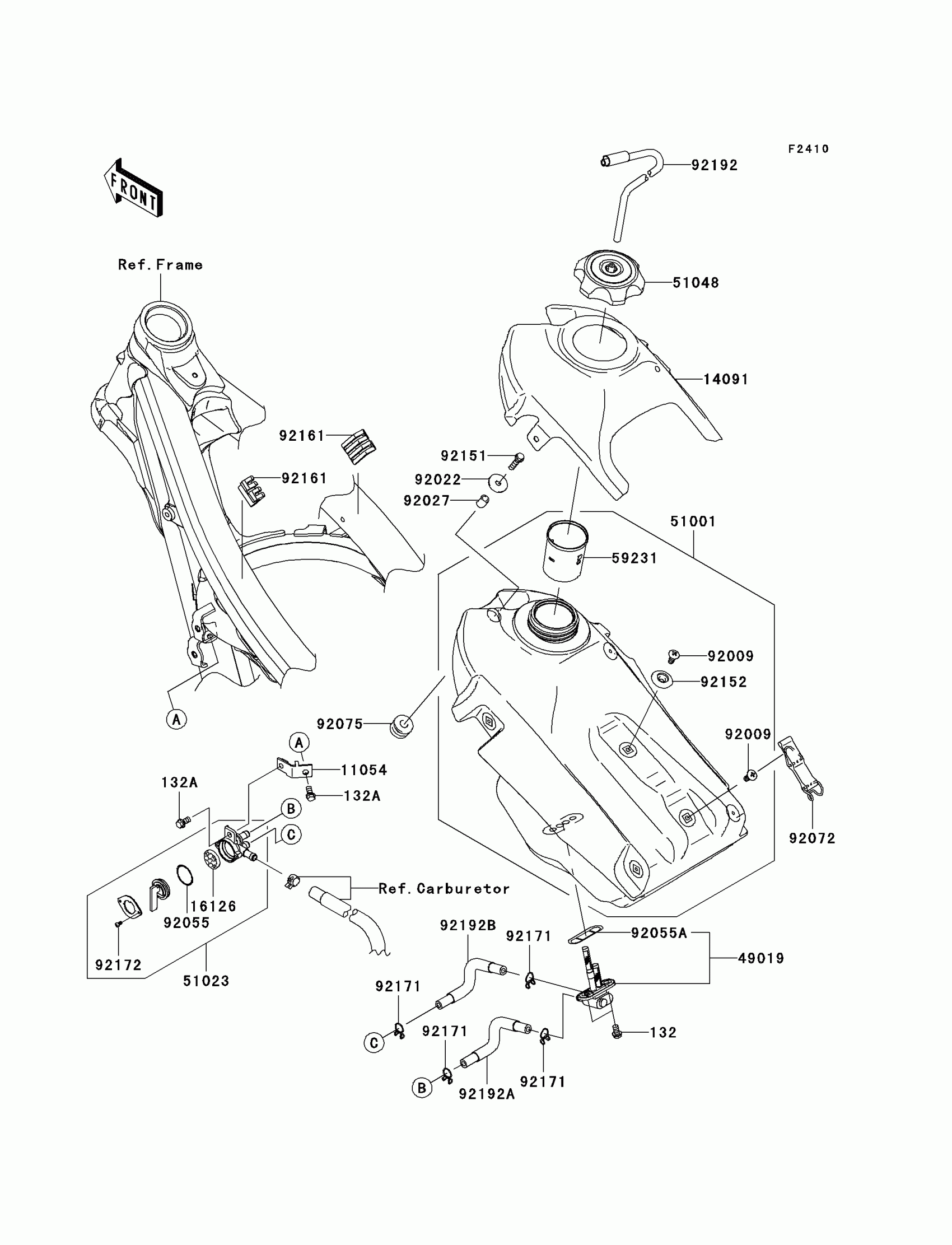

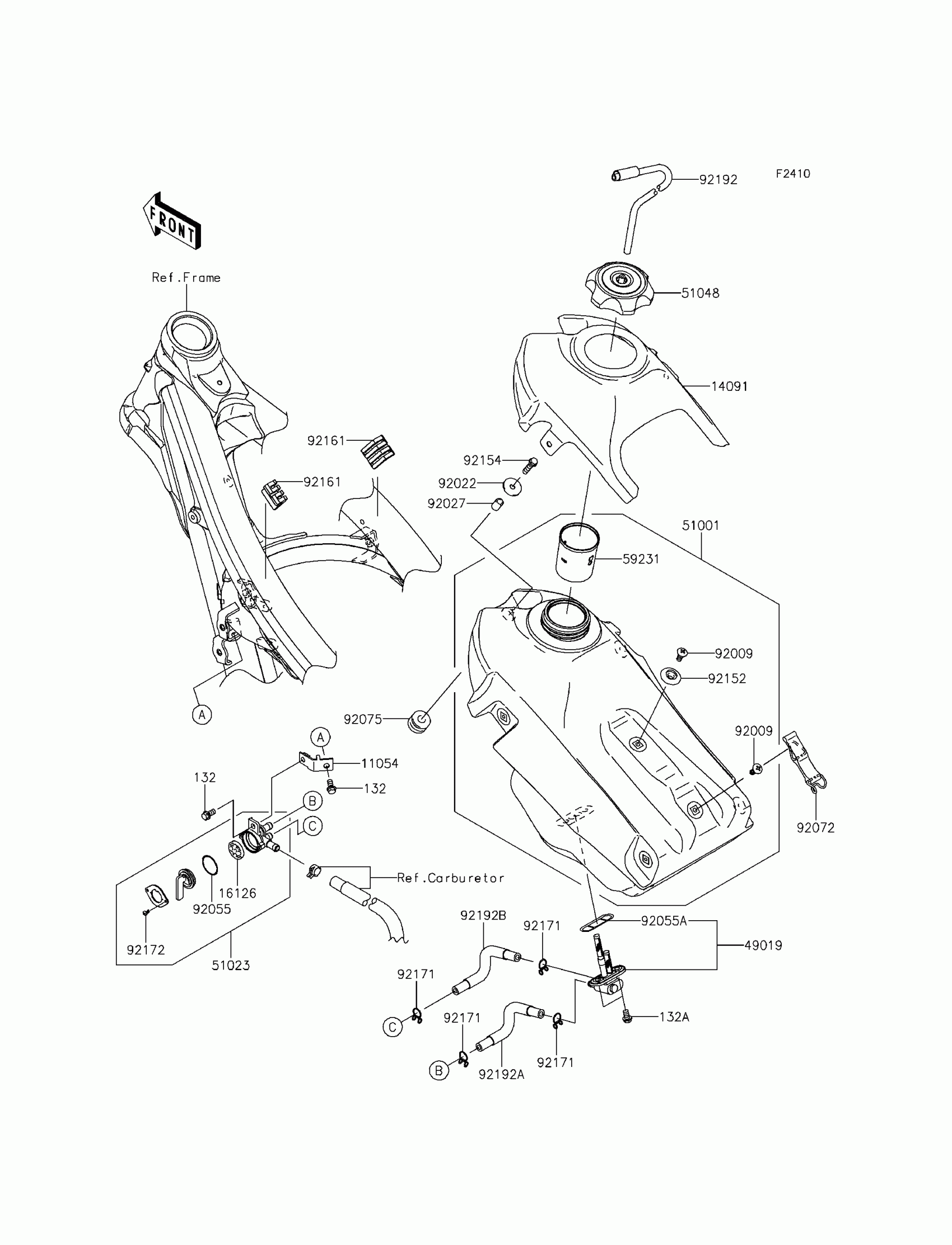

Kawasaki KLX450R (Australian) Fuel Tank Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

132A

BOLT-FLANGED-SMALL,6X12

132BC0612

$1.81

11054

BRACKET,FUEL TAP

11054-1092

$9.93

14091

COVER,FUEL TANK,F.BLACK

14091-0843-6Z

$47.25

16126

VALVE

16126-0027

$5.80

49019

FILTER-FUEL

49019-0005

$21.78

51001

TANK-COMP-FUEL,F.BLACK

51001-0153-6Z

$740.71

51023

TAP-ASSY,FUEL

51023-0026

$73.09

51048

CAP-ASSY-TANK,FUEL

51048-0009

$53.60

59231

FILLER

59231-0019

$5.80

92009

SCREW,6MM

92009-1971

$3.19

92022

WASHER,6.5X24X2

92022-1690

$2.99

92027

COLLAR,6.8X10X14

92027-1966

$4.42

92055

RING-O

92055-0111

$4.68

92055A

RING-O,FUEL TAP PACKING

92055-1348

$5.61

92072

BAND,FUEL TANK

92072-0045

$11.06

92075

DAMPER

92075-1787

$4.93

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR

92152-1346

$3.19

92161

DAMPER,FUEL TANK,SIDE

92161-0254

$5.05

92171

CLAMP

92171-0149

$3.29

92172

SCREW,3X6

92172-0259

$2.71

92192

TUBE

92192-0161

$9.86

92192A

TUBE,ON

92192-0409

$27.18

92192B

TUBE,RESERVE

92192-0503

$27.18
