2004 Kawasaki KLX400R (Canada Only) Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2004 Kawasaki KLX400R (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

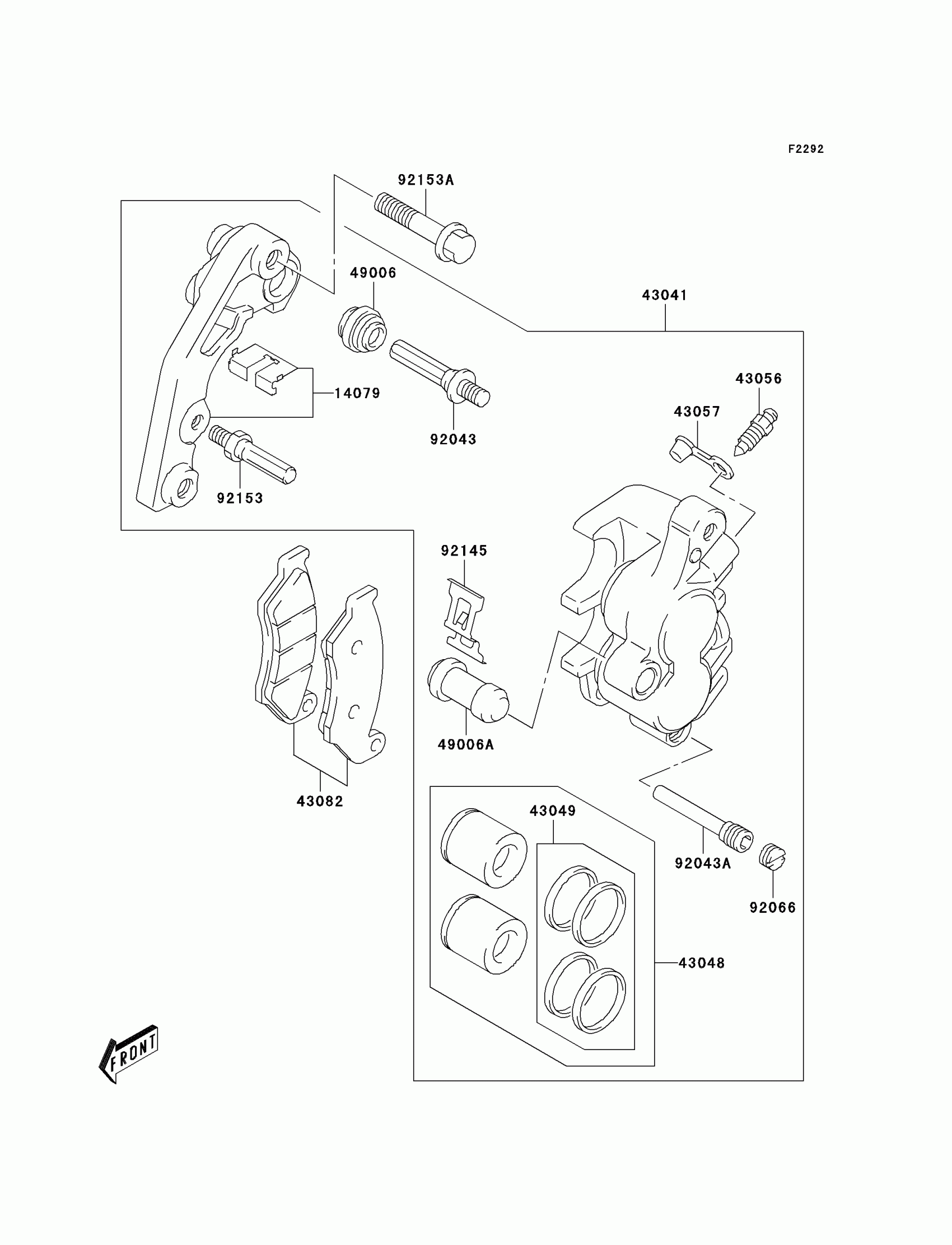

2004 Kawasaki KLX400R (Canada Only) Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14079

HOLDER-ASSY

14079-S004

1
Out of stock

43041

CALIPER-ASSY,FR

43041-S012

1
Out of stock

43048

PISTON-CALIPER

43048-S006

1
Out of stock

43049

PACKING

43049-S012

1
Out of stock

43056

BREATHER-BRAKE

43056-S002

1
Out of stock

43057

CAP-BREATHER,BLEEDER

43057-S002

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-S011

1
Out of stock

49006

BOOT

49006-S006

1
Out of stock

49006A

BOOT

49006-S007

1
Out of stock

92043

PIN

92043-S015

1
Out of stock

92043A

PIN,HANGER

92043-S017

1
Out of stock

92066

PLUG

92066-S037

1
Out of stock

92145

SPRING,PAD

92145-S135

1
Out of stock

92153

BOLT

92153-S118

1
Out of stock

92153A

BOLT,8X40

92153-S354

1
Out of stock
