2025 Kawasaki KLX300SM Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

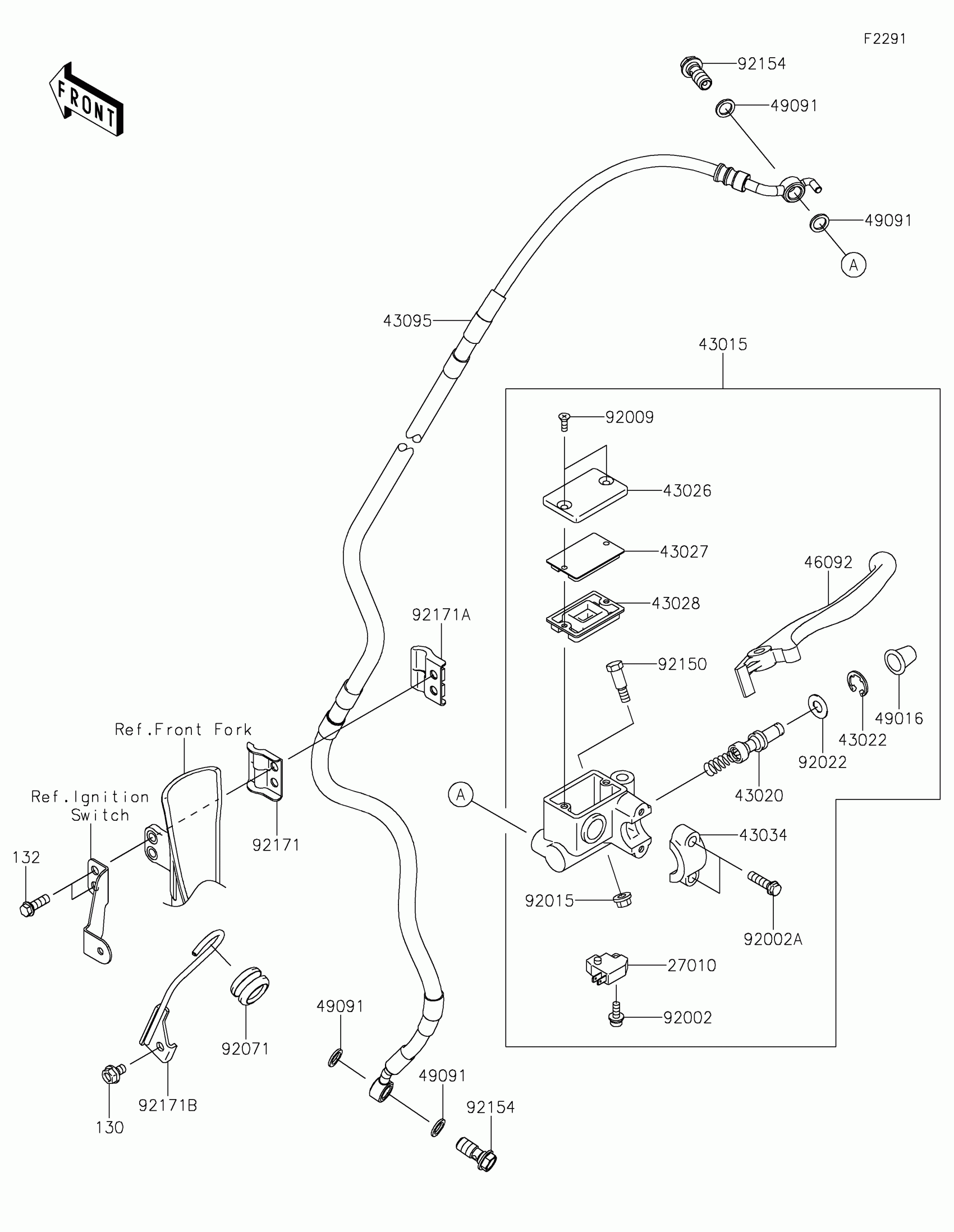

2025 Kawasaki KLX300SM Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

27010-0762

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0771

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1126

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1082

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1057

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

43095

HOSE-BRAKE,FR

43095-1931

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-1140

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92022

WASHER

92022-1814

1
Out of stock

92071

GROMMET,15X20X16

92071-0056

1
Out of stock

92150

BOLT,LEVER SET

92150-1451

1
Out of stock

92154

BOLT,FLANGED,10X23

92154-0732

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-1626

1
Out of stock

92171A

CLAMP,BRAKE HOSE

92171-1627

1
Out of stock

92171B

CLAMP,BRAKE HOSE

92171-1839

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1
Out of stock

132

BOLT-FLANGED-SMALL,6X18

132BB0618

1
Out of stock
