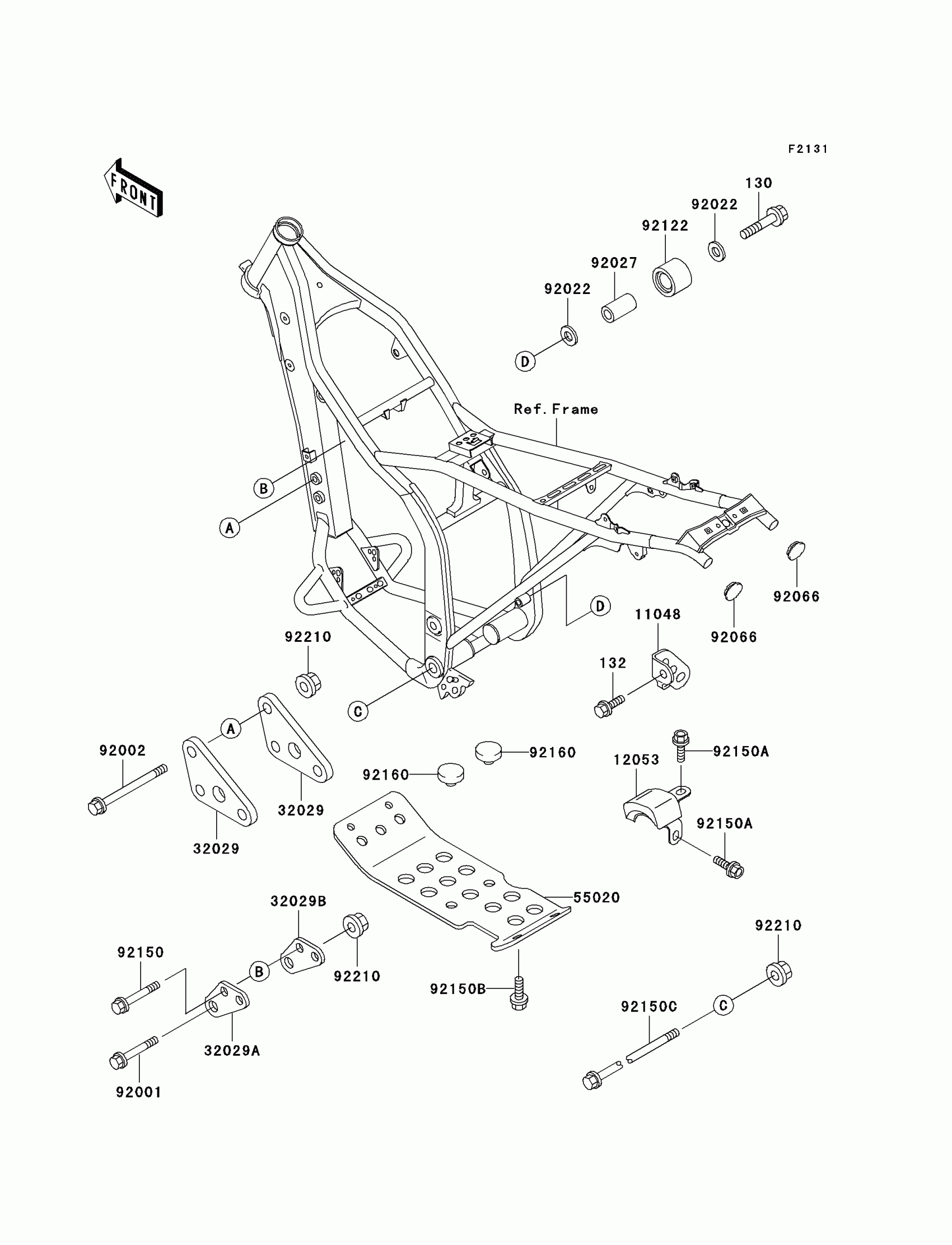

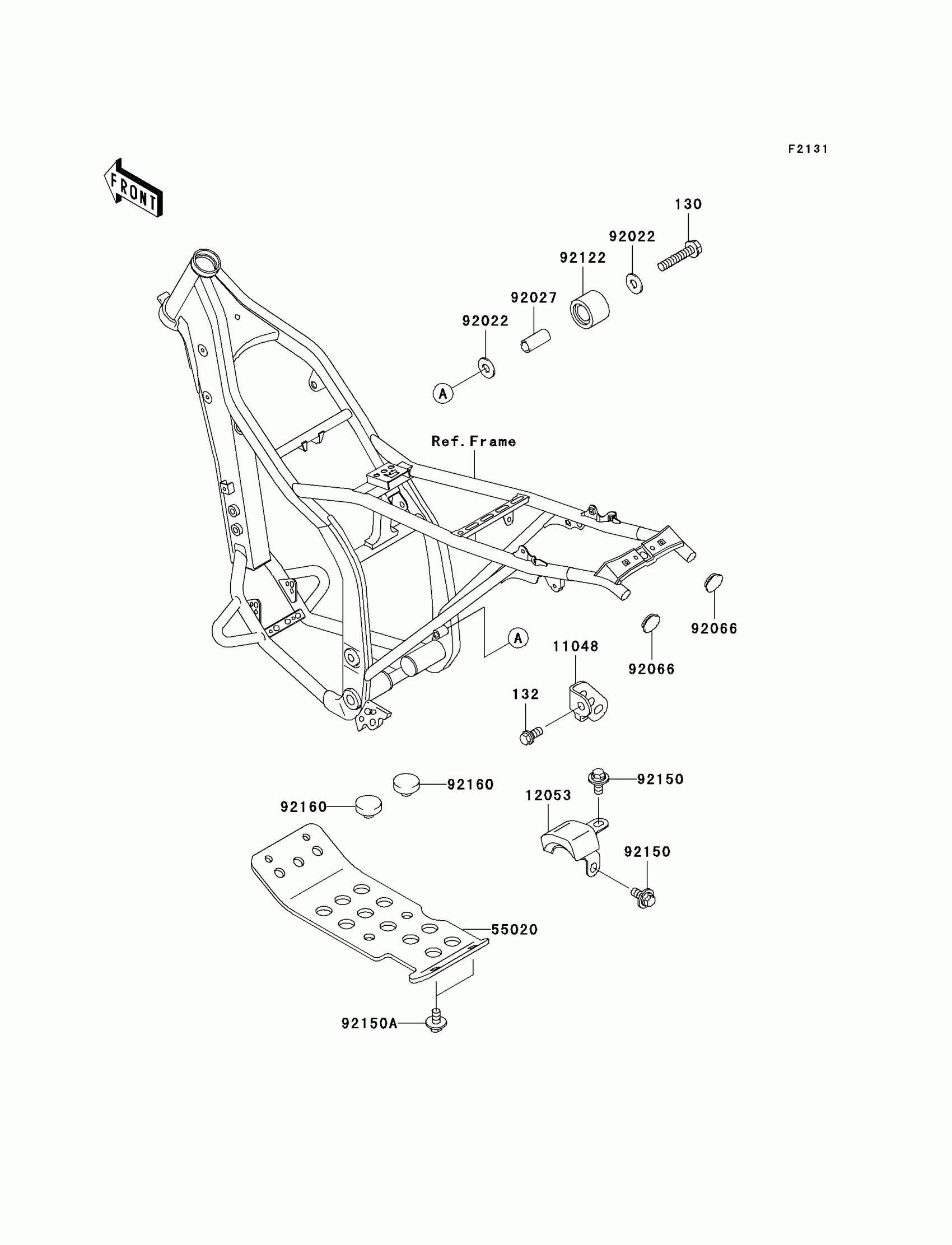

Kawasaki KLX300R Frame Fittings Diagram

#

Description
Price

130

BOLT-FLANGED,8X40

130G0840

Unavailable

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

11048

BRACKET,AIR FILTER,LWR,LH

11048-1223

$8.76

12053

GUIDE-CHAIN

12053-1314

Unavailable

32029

BRACKET-ENGINE,FR

32029-1855

$20.85

32029A

BRACKET-ENGINE,HEAD,LH

32029-1886

$8.54

32029B

BRACKET-ENGINE,HEAD,RH

32029-1887

$9.56

55020

GUARD,ENGINE

55020-1456

$95.85

92001

BOLT,FLANGED,10X44

92001-1499

$4.18

92002

BOLT,10X90

92002-1674

$16.78

92022

WASHER,8.5X20X1.6

92022-1561

$3.29

92027

COLLAR,CHAIN ROLLER

92027-1670

$7.25

92066

PLUG,FRAME END,12X13

92066-1034

$3.21

92122

ROLLER,CHAIN GUIDE

92122-1153

$8.10

92150

BOLT,FLANGED,8X40

92150-1168

$2.68

92150A

BOLT,6X14

92150-1340

$3.86

92150B

BOLT,6X12

92150-1435

$3.29

92150C

BOLT,FLANGED,10X120

92150-1642

$16.78

92160

DAMPER

92160-1396

$4.85

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83
