1996 Kawasaki KLX250R Rear Brake Diagram

← All diagrams

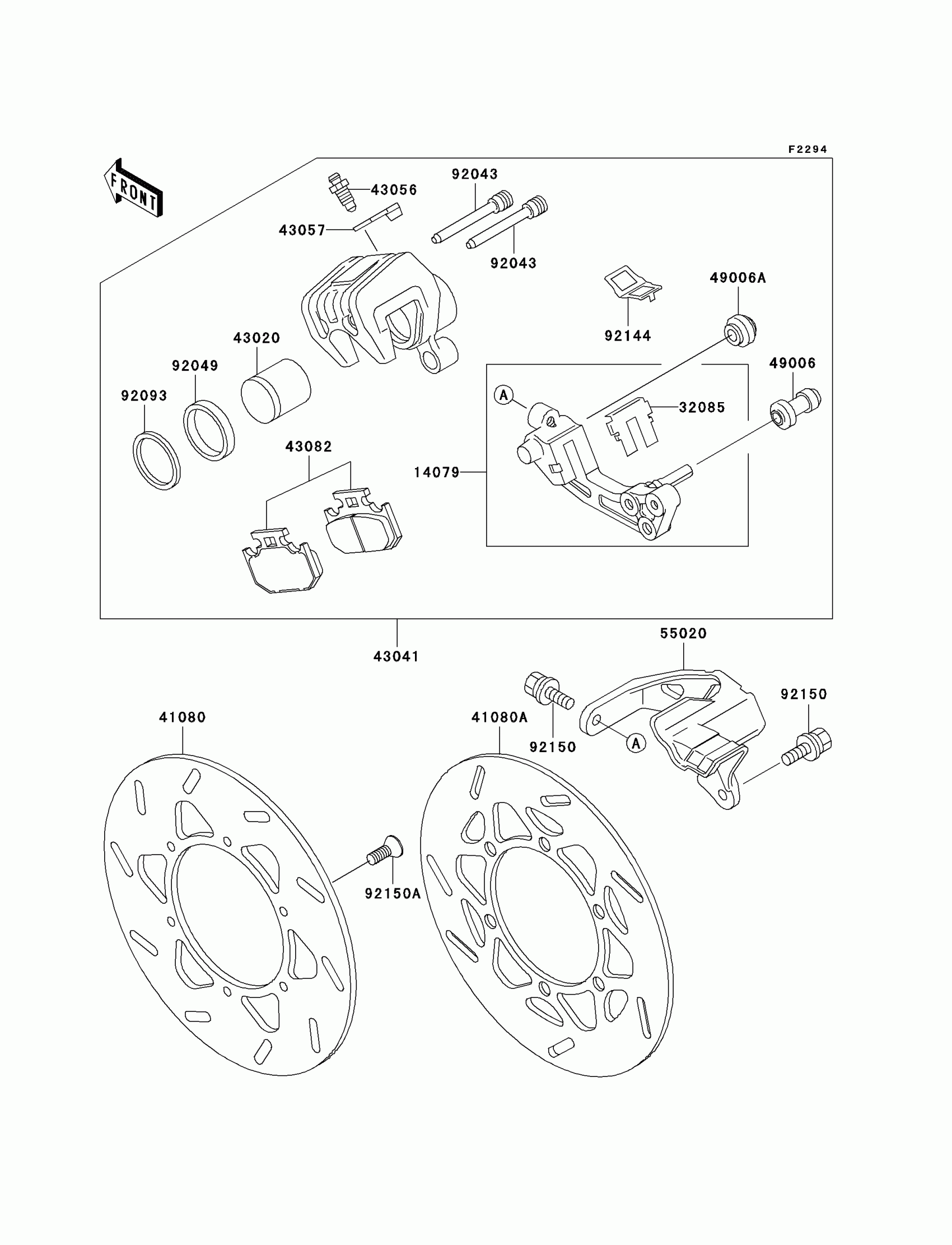

Find the part on the Rear Brake diagram for your 1996 Kawasaki KLX250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KLX250R Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14079

HOLDER-ASSY,REAR CALIPER

14079-1098

1
Out of stock

32085

STOPPER,PAD

32085-1315

1
Out of stock

41080A

DISC,RR

41080-1382

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1099

1
Out of stock

43041

CALIPER-ASSY,RR

43041-1507

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1151

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

55020

GUARD,CALIPER,P.WHITE

55020-1323-6F

1
Out of stock

92043

PIN,HANGER

92043-1416

1
Out of stock

92049

SEAL-OIL,PISTON

92049-1331

1
Out of stock

92093

SEAL,PISTON

92093-1272

1
Out of stock

92144

SPRING,PAD

92144-1364

1
Out of stock

92150

BOLT,FLANGED,6X16

92150-1506

1
Out of stock

92150A

BOLT,DISC PLATE,8X15

92150-1811

1
Out of stock
