Description

Price

132

BOLT-FLANGED-SMALL,6X16

132Y0616

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

220A

SCREW PAN HEAD 6X25

220B0625

Unavailable

220B

SCREW PAN HEAD 6X30

220B0630

Unavailable

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65

670

O RING,10MM

670B2010

$1.13

11012

CAP,OIL FILTER

11012-1914

Unavailable

13216

GEAR-COMP

13216-1142

$139.49

16082

PUMP-ASSY-OIL

16082-1130

$207.46

16142

COVER-PUMP

16142-1123

$44.51

16154

ROTOR-PUMP

16154-1077

$38.53

49065

FILTER-OIL

49065-1058

$9.70

52010

ELEMENT-OIL FILTER

52010-1053

$6.94

92022

WASHER,10.2X14.5X1.0

92022-1181

$2.99

92043

PIN,6.2X8X14

92043-1263

$0.46

92055

RING-O,OD=13

92055-074

$6.55

92055A

RING-O,52.6X2.4

92055-1520

$3.57

92144

SPRING

92144-1761

$3.54

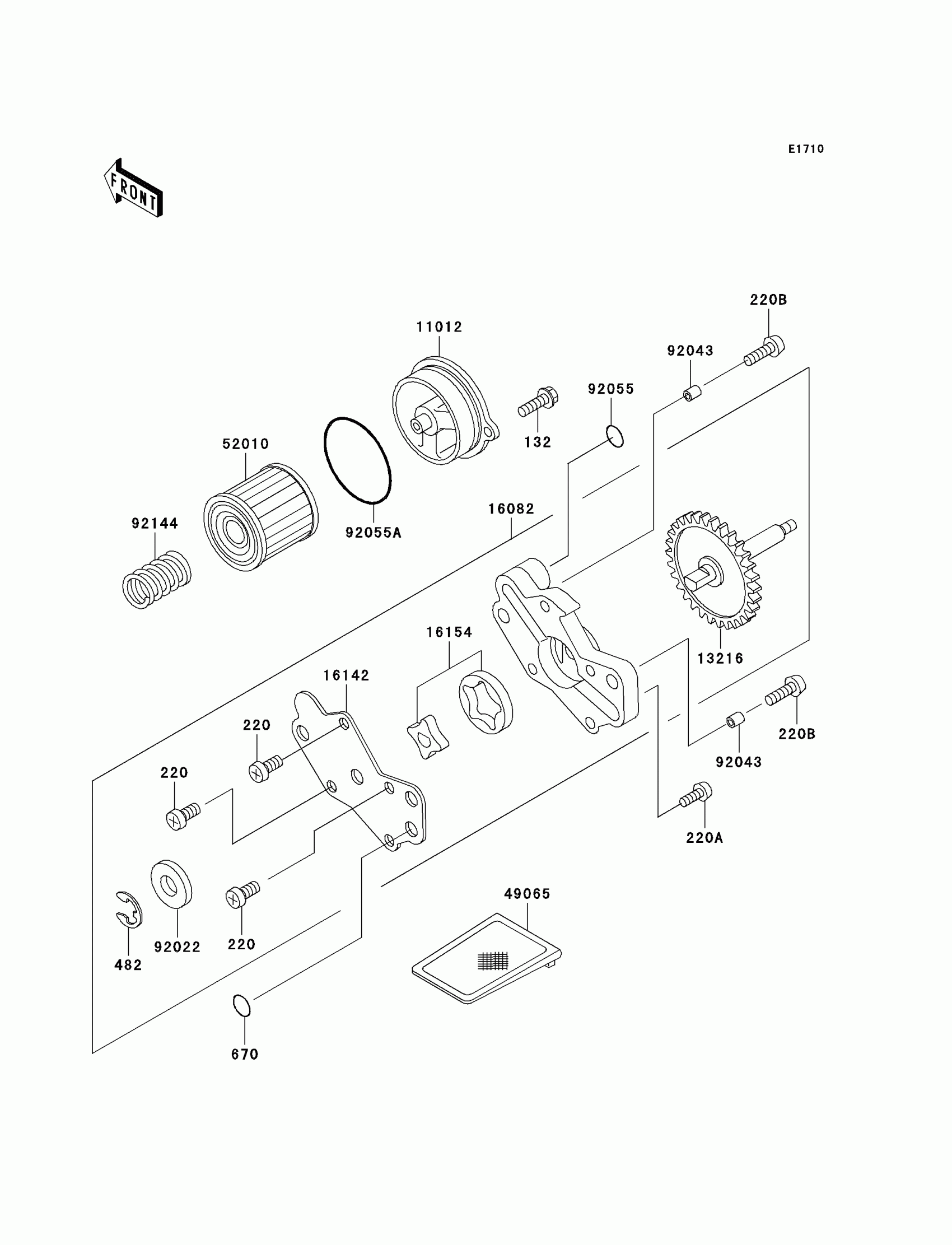

Kawasaki KLX250R Oil Pump Diagram

BOLT-FLANGED-SMALL,6X16

SCREW PAN HEAD 6X10

SCREW PAN HEAD 6X25

SCREW PAN HEAD 6X30

CIRCLIP-TYPE-E,6MM

O RING,10MM

CAP,OIL FILTER

GEAR-COMP

PUMP-ASSY-OIL

COVER-PUMP

ROTOR-PUMP

FILTER-OIL

ELEMENT-OIL FILTER

WASHER,10.2X14.5X1.0

PIN,6.2X8X14

RING-O,OD=13

RING-O,52.6X2.4

SPRING
