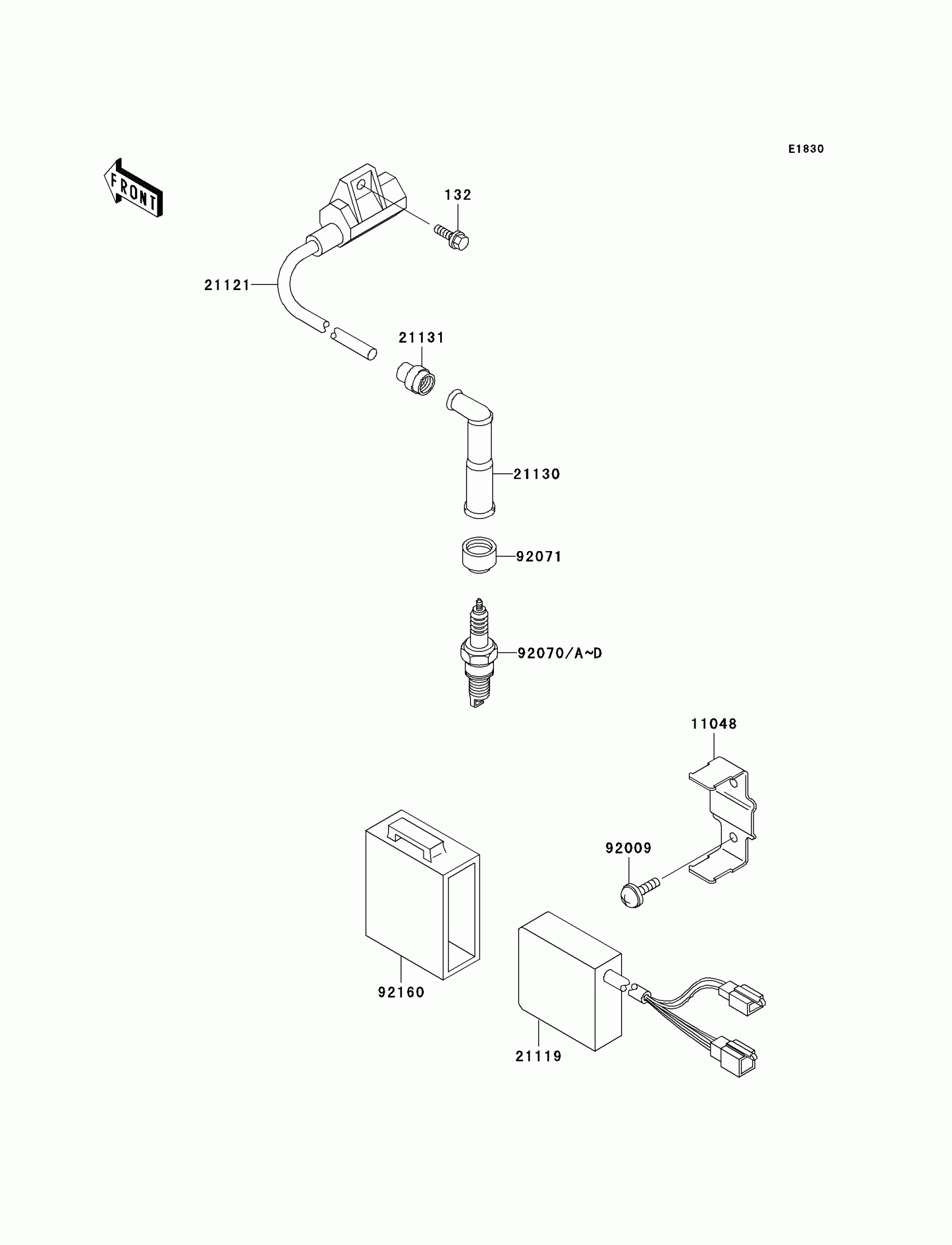

Kawasaki KLX250R Ignition System Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable

11048

BRACKET

11048-1291

$29.63

21119

IGNITER

21119-1376

Unavailable

21121

COIL-IGNITION

21121-1152

$138.32

21130

CAP-SPARK PLUG

21130-1002

$45.70

21131

GROMMET,HIGH TENSION

21131-005

$4.64

92009

SCREW,6X18,BLACK

92009-1181

$1.98

92070

PLUG-SPARK,CR9E(NGK)

92070-1143

$5.44

92070A

Not Available As Spare Part - Friction Washer

Unavailable

92070B

PLUG-SPARK,CR8E(NGK)

92070-1169

$6.18

92070C

Not Available As Spare Part - Friction Washer

Unavailable

92070D

PLUG-SPARK,CR7E(NGK)

92070-1209

$6.18

92071

GROMMET,PLUG CAP

92071-1124

$7.18

92160

DAMPER,IGNITER

92160-1259

$20.88
